Battery Junction Box (BJB) Connector End View (C1035B)

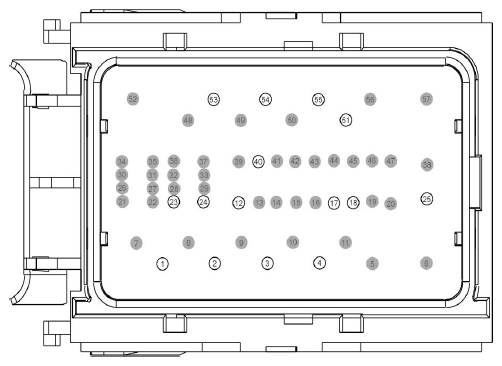

Fig 1: Identifying Battery Junction Box Connector End View (C1035B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB85 (WH-RD)	10	FUSE - 85 OR CIRCUIT BREAKER
2	SBB81 (RD)	10	FUSE - 81 OR CIRCUIT BREAKER
3	SBB77 (GY-RD)	12	FUSE - 77 OR CIRCUIT BREAKER
4	SBB73 (RD)	12	FUSE - 73 OR CIRCUIT BREAKER
5	*	*	Not Used
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	*	*	Not Used
11	*	*	Not Used
12	CRW13 (GN)	18	SWITCH - REAR WIPER
13	*	*	Not Used
14	*	*	Not Used
15	*	*	Not Used
16	*	*	Not Used
17	CBB21 (BU-GY)	14	FUSE - 21 OR CIRCUIT BREAKER
18	CBB53 (GY-BN)	20	FUSE - 53 OR CIRCUIT BREAKER
19	*	*	Not Used
20	*	*	Not Used
21	*	*	Not Used
22	*	*	Not Used
23	CE157 (WH-BN)	20	CTRL MOD. - POWERTRAIN # COLD START RELAY
24	CLN09 (YE-GN)	20	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
25	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER
26	*	*	Not Used
27	*	*	Not Used
28	*	*	Not Used
29	*	*	Not Used
30	*	*	Not Used
31	*	*	Not Used
32	*	*	Not Used
33	*	*	Not Used
34	*	*	Not Used
35	*	*	Not Used
36	*	*	Not Used
37	*	*	Not Used
38	*	*	Not Used
39	*	*	Not Used
40	CBB23 (BN-YE)	20	FUSE - 23 OR CIRCUIT BREAKER
41	*	*	Not Used
42	*	*	Not Used
43	*	*	Not Used
44	*	*	Not Used
45	*	*	Not Used
46	*	*	Not Used
47	*	*	Not Used
48	*	*	Not Used
49	*	*	Not Used
50	*	*	Not Used
51	CE618 (BN-VT)	18	RELAY - FUEL PUMP # 2
52	*	*	Not Used
53	SBB80 (VT-RD)	12	FUSE - 80 OR CIRCUIT BREAKER
54	SBB76 (GN-RD)	14	FUSE - 76 OR CIRCUIT BREAKER
55	SBB72 (VT-RD)	10	FUSE - 72 OR CIRCUIT BREAKER
56	*	*	Not Used
57	*	*	Not Used
