Home >> Ford >> 2013 >> Fusion Titanium, AWD >> Repair and Diagnosis >> Engine Mechanical >> Blowers, Superchargers & Turbochargers >> Fuel Charging And Controls - Turbocharger - 2.0L ECOBOOST (184KW/250PS) - Mi4 >> Description and Operation >> Turbocharger - Component Location >> 2.0L EcoBoost

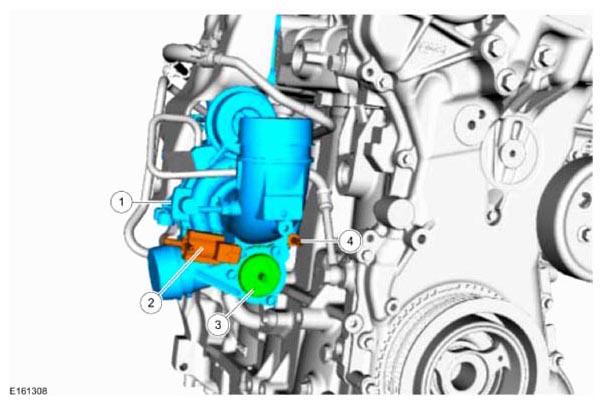

2.0L EcoBoost

G08638069
Item Description
1 Turbocharger
2 Turbocharger wastegate regulating valve solenoid
3 Turbocharger bypass valve
4 Pressure side of compressor
