Overhead Console: Removal

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
- Open the storage compartment.

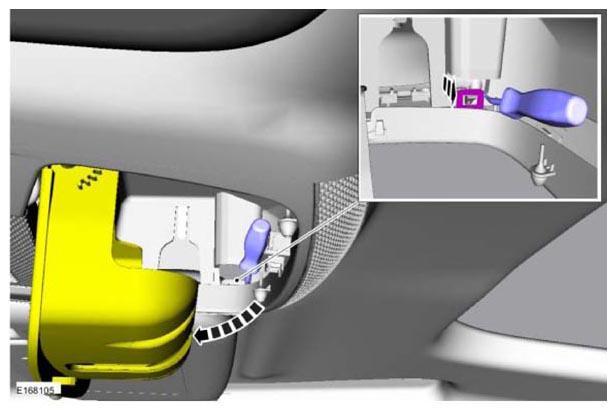

- Push upwards on the rear of the console, use a 90 degree pick tool and release the RH and LH rear console clips.

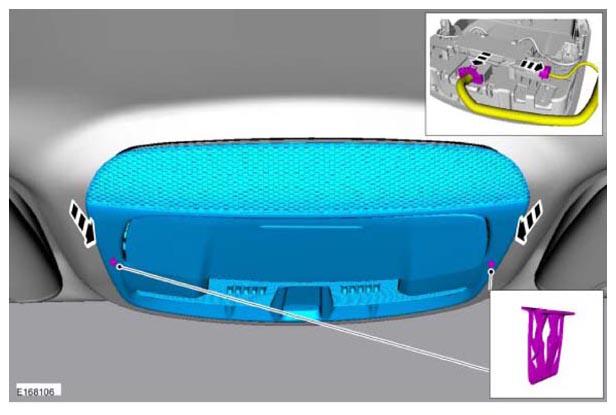

- Pull downwards on each side of the console to release the spring clips.
- Disconnect the electrical connectors.
