Instrument Panel: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION AND CHARGING .
  3. NOTE: If equipped.

    Refer to: AIR CLEANER - 1.6L EcoBoost (132kW/180PS) - Sigma .

  4. NOTE: If equipped.

    Torque  : 6 Nm

    G08634921
  5. NOTE: Make sure all openings are sealed.

    Torque  : 11 Nm

    G08634922
  6. NOTE: Make sure all openings are sealed.
    G08634923
  7. On both sides.

    Refer to: FRONT DOOR .

  8. Refer to: FLOOR CONSOLE  .
  9. If equipped.

    Refer to: SELECTOR LEVER ASSEMBLY .

  10. If equipped.

    Refer to: GEARSHIFT LEVER .

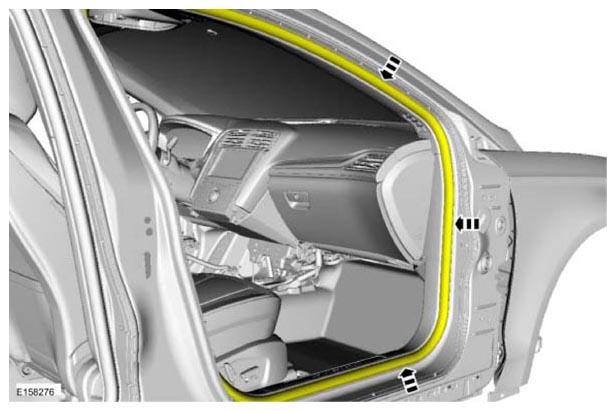

  11. On both sides.
    G08634924
  12. On both sides.
    G08634925
  13. On both sides.
    G08634926
  14. On both sides.
    G08634927
  15. On both sides.
    G08634928
  16. On both sides.

    Refer to: A-PILLAR TRIM PANEL .

  17. G08634609
  18. NOTE: Do not allow the steering wheel to rotate while the steering shaft is disconnect, or damage to the clockspring may result.

    Torque  : 28 Nm

    G08634930
  19. G08634931
  20. G08638714
  21. G08634933
  22. G08634934
  23. Torque  : 15 Nm
    G08634935
  24. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Turn the ignition off, wait at least one minute.
    • Disconnect electrical connector.
  25. G08634936
  26. G08634937
  27. G08634938

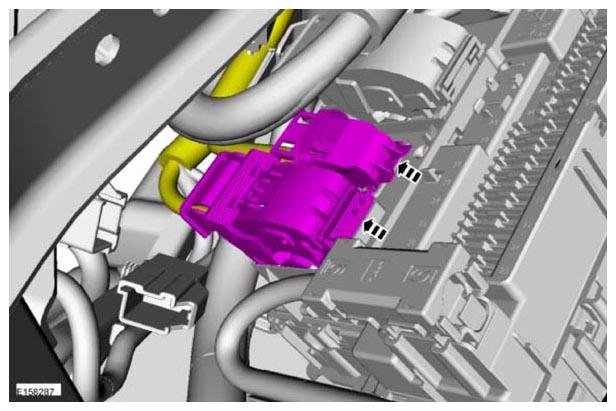

  28. NOTE: LH  side of instrument panel.
    G08634939

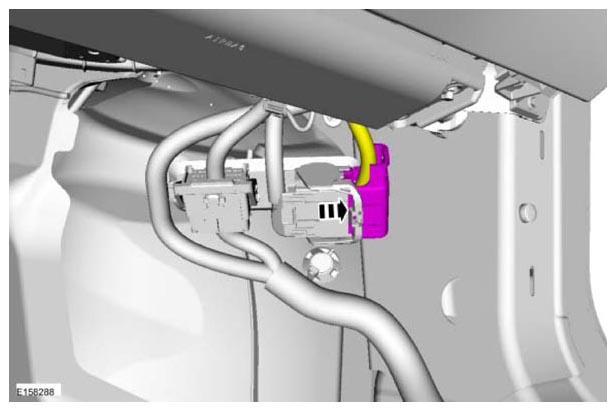

  29. NOTE: RH  side of instrument panel.
    G08634940
  30. Remove the APIM  .
    G08638603
  31. Refer to: COWL PANEL GRILLE .
  32. Torque  : 25 Nm
    G08634942

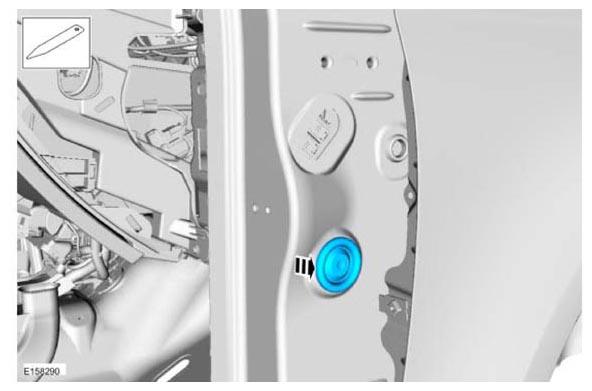

  33. Both sides.
    G08634943
  34. On both sides.

    Torque  : 35 Nm

    G08634944
  35. Torque  : 15 Nm
    G08634945
  36. On both sides.

    Torque  : 25 Nm

    G08634946
  37. NOTE: Make sure not to damage the instrument panel when removing the instrument panel from the vehicle.
    NOTE: Make sure that all electrical connectors and wiring are not hindered before removing the instrument panel or damage to the components may occur.
    G08634947
