Removal and Installation: Spring: Installation

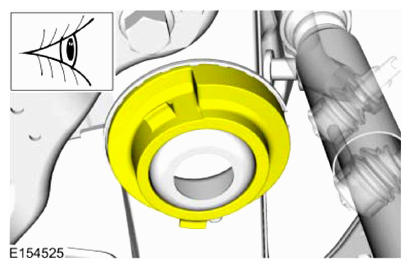

  1. Visual check.
    G08632081

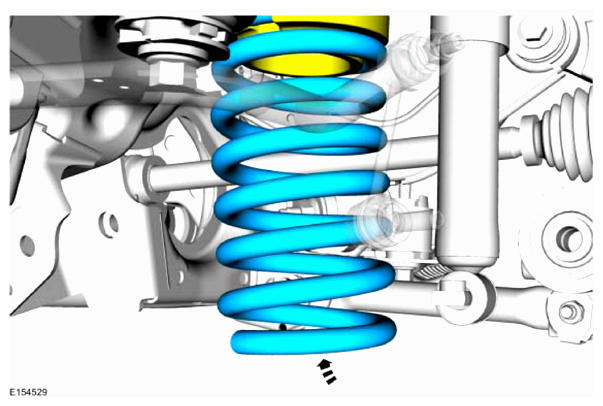

  2. G08632082

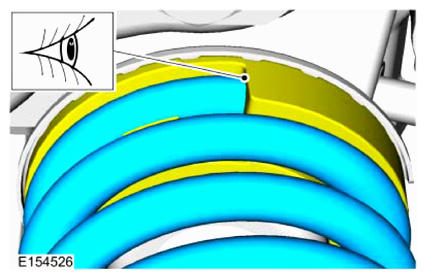

  3. NOTE: Make sure that the spring is correctly located in the upper spring seat.
    Visual check.
    G08632083
  4. Refer to: LOWER ARM  .
