Lower Arm: Installation
- Visual check.

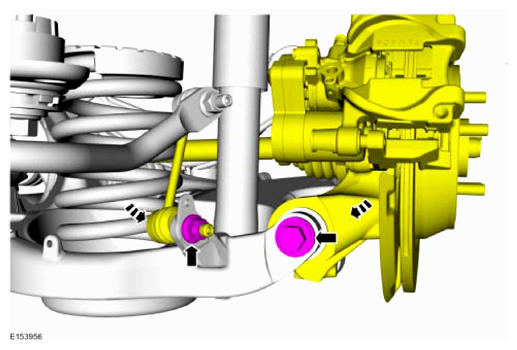

- Relocate and support the component. Finger tight at this stage.
- Finger tight at this stage.
- Finger tight at this stage.
- Finger tight at this stage.
- General Equipment
: Vehicle/Axle Stands
- Torque
: 225 Nm
- Torque
: 225 Nm
- Torque
:
- 250 Nm
- 103 Nm
- Torque
:
- 175 Nm
- 103 Nm
- Torque
: 48 Nm
- Refer to: WHEEL AND TIRE .
- Refer to: REAR CAMBER ADJUSTMENT .
NOTE:
Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
NOTE:
Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
NOTE:
Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
NOTE:
Tighten the suspension bushing fasteners with the suspension loaded or with the weight of the vehicle resting on the wheels and tires, otherwise incorrect clamp load and bushing damage may occur.
