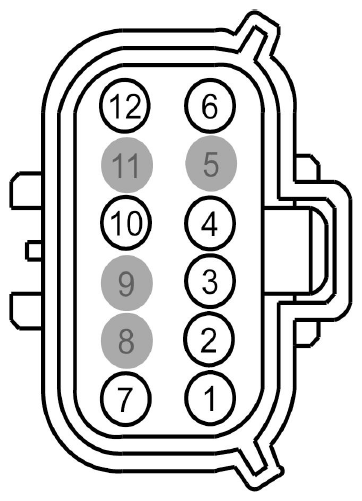

Transmission Range Control Module (TRCM) Connector End View (C1693)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 2 | GD123 (BK-GY) | 18 | GROUND - FENDER FRONT RIGHT | |
| 3 | VDB25 (GN-OG) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) HIGH | |
| 4 | VDB26 (GY-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED 2 (UPPER) LOW | |
| 5 | * | * | Not Used | |
| 6 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 7 | VET76 (GN-OG) | 18 | CTRL MOD. - GEAR SHIFT # PWM OUT 1 (PWM1) | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | VET78 (WH-VT) | 18 | ACTUATOR - GEAR SHIFT # PWM OUT 3 (PWM3) | |
| 11 | * | * | Not Used | |
| 12 | SBB76 (GN-RD) | 14 | FUSE - 76 OR CIRCUIT BREAKER |

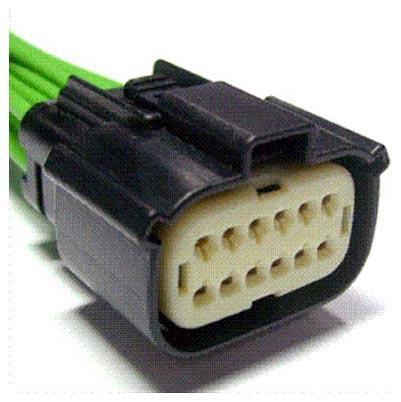

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1125 | Service Part Number: AU2Z-14S411-AMA Gauge: 16 Pin material: Silver Cavities: 12 Vehicle Uses
|
