Powertrain Control Module (Pcm) Connector End View (C1232E)

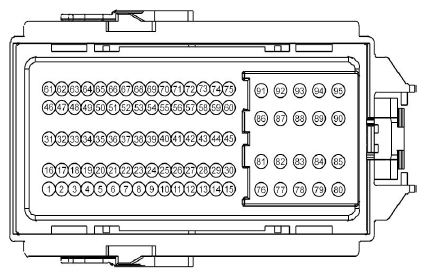

Fig 1: Identifying Powertrain Control Module (PCM) Connector End View (C1232E)
G08755632Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 11 (VCT11) A/T
1 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) M/T
2 CE167 (YE-OG) 18 CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE M/T
2 CET18 (GY-YE) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) A/T
3 VE836 (VT-GN) 20 SENSOR - TURBOCHARGER BYPASS VALVE (TCBY) A/T
3 LE423 (GN) 20 REFERENCE VOLTAGE (VREF) M/T
4 * * Not Used
5 LE134 (YE) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) M/T
6 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) A/T
7 LE134 (YE) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCREF) A/T
7 LE458 (BU-WH) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) M/T
8 LE423 (GN) 20 REFERENCE VOLTAGE (VREF) A/T
9 CMC24 (GY) 18 SWITCH - OIL PRESSURE A/T
10 VET32 (VT) 20 SENSOR - TRANSMISSION RANGE # PWM OUTPUT (TR-P) A/T
10 RE454 (YE-GN) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) M/T
11 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKP) A/T
12 VET26 (BN-GN) 20 SENSOR - OUTPUT SHAFT SPEED (OSS) A/T
13 * * Not Used
14 CE235 (GN-BN) 18 CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. PRE CAT. 1ST OR UNIQUE (HTR11) A/T
15 * * Not Used
16 CE460 (VT-WH) 18 CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS) A/T
16 CE421 (VT) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 11 (VCT11) M/T
17 CE166 (GY-OG) 18 CTRL MOD. - POWERTRAIN # DEGAS SOLENOID VALVE A/T
18 CE167 (YE-OG) 18 CTRL MOD. - POWERTRAIN # BYPASS SOLENOID VALVE A/T
18 RE134 (BU-OG) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) M/T
19 RE433 (BU-GY) 18 CTRL MOD. - POWERTRAIN # TEMPERATURE MANIFOLD ABSOLUTE PRESSURE SENSOR M/T
20 RE429 (GY-OG) 20 CTRL MOD. - POWERTRAIN # VARIABLE RELUCTANCE SENSOR (VRSRTN) (CAMSHAFT POSITION) M/T
20 RE454 (YE-GN) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) A/T
21 * * Not Used
22 LE111 (VT-GN) 20 TSS/OSS/TRS POWER SUPPLY A/T
22 RE238 (BU-BN) 20 CTRL MOD. - POWERTRAIN # FUEL RAIL PRESSURE SENSOR - M/T
23 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) M/T
24 * * Not Used
25 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) M/T
26 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) M/T
27 VET33 (WH-OG) 20 SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + A/T
28 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX/IN (CMP11) A/T
29 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 12 (VCT12) A/T
30 CET08 (BN-WH) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) A/T
31 RE134 (BU-OG) 18 CTRL MOD. - POWERTRAIN # ELECTRONIC THROTTLE CONTROL (ETCRTN) A/T
31 CE422 (WH-OG) 18 CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING VALVE 12 (VCT12) M/T
32 RET24 (BN-BU) 20 TRS/OSS SIGNAL RETURN (TRS/OSS GND) A/T
33 VE803 (BU-GN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + A/T
33 VE819 (GN-VT) 18 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) M/T
34 VE818 (BN) 18 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) M/T
35 VE803 (BU-GN) 18 SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) + M/T
36 VE706 (BN-BU) 20 SENSOR - CAMSHAFT POSITION BANK 1 IN+EX/IN (CMP11) M/T
36 VE716 (YE) 20 SENSOR - ENGINE COOLANT TEMPERATURE (ECT) A/T
37 LE238 (GY) 20 FUEL RAIL PRESSURE (FRP) A/T
37 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP12) M/T
38 LE238 (GY) 20 FUEL RAIL PRESSURE (FRP) M/T
39 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) M/T
40 LE452 (GN) GN CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) M/T
41 * * Not Used
42 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) A/T
42 CMC24 (GY) 18 SWITCH - OIL PRESSURE M/T
43 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4B) A/T
44 CET10 (BU-GY) 20 TORQUE CONVERTER CLUTCH (TCC) SOLENOID A/T
45 CET06 (GN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) A/T
46 CE166 (GY-OG) 18 CTRL MOD. - POWERTRAIN # DEGAS SOLENOID VALVE M/T
47 CE460 (VT-WH) 18 CTRL MOD. - POWERTRAIN # TURBOCHARGER WASTEGATE REGULATING VALVE SOLENOID (TCWRVS) M/T
48 VE836 (VT-GN) 20 SENSOR - TURBOCHARGER BYPASS VALVE (TCBY) M/T
48 LE452 (GN) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN MEASURED PUMPING CURRENT 1ST (UO2SPCT11) A/T
49 LE448 (GY-BU) 18 CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE UNIVERSAL HEGO 1ST (UO2SGREF11) A/T
49 VE711 (YE-VT) 20 SENSOR - CRANKSHAFT POSITION (CKP) M/T
50 CE303 (WH-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 1 (COP1A) M/T
50 VE802 (BN-BU) 20 SENSOR - KNOCK 2ND BANK 1ST (KS2+) A/T
51 RE324 (BN-GN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-) A/T
51 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C) M/T
52 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3E) M/T
52 VE819 (GN-VT) 18 SENSOR - THROTTLE POSITION # POSITIVE SLOPE (TP2) A/T
53 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) A/T
53 CE306 (GN-VT) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 4 (COP4B) M/T
54 RE405 (GN-WH) 20 CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) M/T
54 VE707 (GN-VT) 20 SENSOR - CAMSHAFT POSITION BANK 2 IN+EX/IN (CMP12) A/T
55 * * Not Used
56 * * Not Used
57 CE304 (YE-BU) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 2 (COP2C) A/T
57 VE802 (BN-BU) 20 SENSOR - KNOCK 2ND BANK 1ST (KS2+) M/T
58 RE324 (BN-GN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 2ND BANK 1ST (KS2-) M/T
59 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) M/T
59 CET09 (YE-VT) 20 LINE PRESSURE CONTROL (LPC) A/T
60 CET05 (BU-GN) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) A/T
60 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) M/T
61 * * Not Used
62 * * Not Used
63 LE451 (BN-YE) 18 CTRL MOD. - POWERTRAIN # UNIVERSAL HEATED OXYGEN PUMPING CURRENT 1ST (UO2SPC11) A/T
64 VE826 (BN-VT) 18 SENSOR - UNIVERSAL HEATED OXYGEN 1ST OR UNIQUE (UO2S11) A/T
65 VE801 (VT-OG) 20 SENSOR - KNOCK 1ST BANK 1ST OR UNIQUE (KS1+) A/T
66 RE323 (WH-BN) 20 CTRL MOD. - POWERTRAIN # KNOCK SENSOR 1ST BANK 1ST OR UNIQUE (KS1-) A/T
67 VET27 (BN-YE) 20 SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) A/T
68 VE818 (BN) 18 SENSOR - THROTTLE POSITION # NEGATIVE SLOPE (TP1) A/T
69 * * Not Used
70 * * Not Used
71 * * Not Used
72 CE305 (BU-OG) 18 CTRL MOD. - POWERTRAIN # IGNITION COIL ON PLUG ASSEMBLY 3 (COP3E) A/T
73 * * Not Used
74 * * Not Used
75 CET07 (GY-OG) 20 CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) A/T
76 * * Not Used
77 RE226 (GN-VT) 16 FUEL VOLUMN REGULATOR RETURN (FVRRTN) A/T
78 CE226 (YE-VT) 16 FUEL VOLUMN REGULATOR (FVR) A/T
78 RE226 (GN-VT) 16 FUEL VOLUMN REGULATOR RETURN (FVRRTN) M/T
79 CE226 (YE-VT) 16 FUEL VOLUMN REGULATOR (FVR) M/T
79 VYT11 (VT-GY) 18 CTRL MOD. - TRANSMISSION AUXILIARY PUMP PWM CONTROL (TAPR_CT) A/T
80 CET49 (BN) 18 CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) A/T
81 VYT12 (YE-GN) 18 PUMP - TRANSMISSION AUXILIARY # DIAGNOSTIC (TAPR_DI) A/T
81 RE206 (BU-OG) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - M/T
82 RE207 (GN-VT) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - M/T
82 CE207 (VT-GY) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + A/T
83 CE206 (GY-YE) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + A/T
83 RE208 (BU) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - M/T
84 RE205 (YE-BU) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - M/T
84 CE205 (GN-BU) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + A/T
85 CE208 (YE-OG) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + A/T
86 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) A/T
86 CE208 (YE-OG) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) + M/T
87 CE206 (GY-YE) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) + M/T
87 RE205 (YE-BU) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) - A/T
88 RE206 (BU-OG) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 2 (INJ) - A/T
89 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) M/T
90 * * Not Used
91 CE426 (BU-GN) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM-) A/T
91 CE205 (GN-BU) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 1 (INJ) + M/T
92 CE207 (VT-GY) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) + M/T
92 RE208 (BU) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 4 (INJ) - A/T
93 RE207 (GN-VT) 14 CTRL MOD. - POWERTRAIN # FUEL INJECTOR DRIVER 3 (INJ) - A/T
94 CE412 (YE-VT) 18 CTRL MOD. - POWERTRAIN # THROTTLE ACTUATOR CONTROL MOTOR (TACM+) M/T
95 * * Not Used
