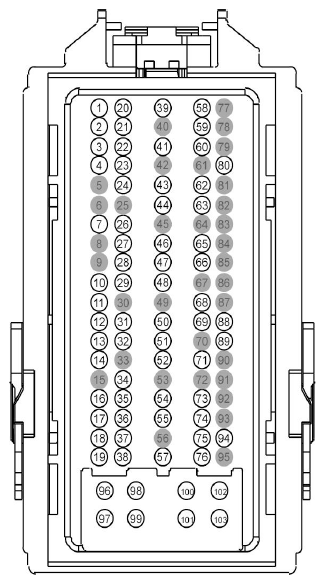

| 1 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
| 2 |
CH302 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # A/C CLUTCH CONTROL RELAY/WOT AC CUTOFF (ACCR) |
|
| 3 |
CH307 (GY-BU) |
18 |
CTRL MOD. - POWERTRAIN # HEATED PUMP CONTROL RELAY (HPCR) |
|
| 4 |
CEC01 (WH-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL HIGH (HFC) |
|
| 5 |
* |
* |
Not Used |
|
| 6 |
* |
* |
Not Used |
|
| 7 |
RE403 (WH-VT) |
18 |
CTRL MOD. - SENSOR CLUTCH PEDAL - |
M/T |
| 7 |
RE406 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) |
|
| 8 |
* |
* |
Not Used |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
LE137 (BU-GY) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPVREF2) |
|
| 11 |
LE423 (GN-VT) |
20 |
REFERENCE VOLTAGE (VREF) |
|
| 11 |
LE458 (BU-WH) |
18 |
REFERENCE VOLTAGE (VREF) |
M/T |
| 12 |
LE136 (GN-OG) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPVREF1) |
|
| 13 |
LE230 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER REF. VOLT. (VREF) |
|
| 14 |
LE423 (GN-VT) |
20 |
REFERENCE VOLTAGE (VREF) |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
RE230 (WH-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL TANK PRESSURE TRANSDUCER |
|
| 17 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
| 18 |
RE407 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) |
|
| 19 |
RE332 (YE-BU) |
20 |
CTRL MOD. - POWERTRAIN # (SIGRTN) |
|
| 20 |
CE114 (GN-BU) |
20 |
CTRL MOD. - POWERTRAIN # EVAP CANISTER VENT VALVE (CANV) |
|
| 21 |
CE170 (WH-BU) |
22 |
CTRL MOD. - POWERTRAIN # ENGINE START SIGNAL |
|
| 22 |
CE113 (WH-BN) |
18 |
CTRL MOD. - POWERTRAIN # EVAP PURGE VALVE (EVAPCP) |
|
| 23 |
CEC02 (GN-BU) |
20 |
CTRL MOD. - COOLING FAN CONTROL LOW (LFC) |
|
| 24 |
VE757 (WH) |
18 |
SENSOR - CLUTCH MASTER CYLINDER 2 (CPP2) |
M/T |
| 25 |
* |
* |
Not Used |
|
| 26 |
CDC15 (VT) |
20 |
GENERATOR (ALTERNATOR) # LOAD INPUT (GENLI) |
|
| 27 |
VE518 (BN-WH) |
20 |
FUEL PUMP MONITOR (FPM) |
|
| 28 |
CE436 (VT-OG) |
22 |
CTRL MOD. -WAKE UP PCM |
|
| 29 |
CR115 (BN) |
22 |
CTRL MOD. - INDICATOR DEPLOYMENT (RDI) |
|
| 30 |
* |
* |
Not Used |
|
| 31 |
CET47 (BU) |
20 |
SWITCH - REVERSE (RS) |
|
| 32 |
LE424 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # CHARGE AIR COOLER TEMPERATURE (CACT) |
|
| 33 |
* |
* |
Not Used |
|
| 34 |
RE335 (BN-VT) |
20 |
CTRL MOD. - POWERTRAIN # POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
|
| 35 |
RE137 (YE-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 2 (APPRTN2) |
|
| 36 |
RE136 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # ACCELERATOR PEDAL POSITION SENSOR 1 (APPRTN1) |
|
| 37 |
RE242 (GN) |
18 |
CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (SIGRTN) |
|
| 38 |
RE242 (GN) |
18 |
CTRL MOD. - POWERTRAIN # HEATED OXYGEN SENSOR POST CAT 1ST OR UNIQUE OR COMMON (SIGRTN) |
|
| 39 |
VE225 (YE-OG) |
20 |
FUEL PUMP COMMAND (FPC) |
|
| 40 |
* |
* |
Not Used |
|
| 41 |
VE462 (WH-BN) |
20 |
CTRL MOD. - POWERTRAIN # VARIABLE A/C COMPRESSOR VALVE |
|
| 42 |
* |
* |
Not Used |
|
| 43 |
CDC12 (YE) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL (SMC) |
|
| 44 |
LE456 (YE-BU) |
18 |
CTRL MOD. - SENSOR CLUTCH MASTER CYLINDER + |
M/T |
| 45 |
* |
* |
Not Used |
|
| 46 |
VCF34 (WH) |
20 |
CTRL MOD. - ALL WHEEL DRIVE # MONITOR (AWDM) |
|
| 47 |
CDC35 (BU-WH) |
20 |
SWITCH - IGNITION # START |
|
| 48 |
CBB26 (BU-WH) |
20 |
FUSE - 26 OR CIRCUIT BREAKER |
|
| 49 |
* |
* |
Not Used |
|
| 50 |
VDN06 (WH-GN) |
20 |
CTRL MOD. - LIN BUS # POWERTRAIN CONTROL MODULE 1 |
|
| 51 |
VE750 (GN-BU) |
20 |
SENSOR - POWERTRAIN AMBIENT TEMP. SENSOR (AAT) |
|
| 52 |
VH433 (VT-OG) |
20 |
TRANSDUCER - A/C PRESSURE (ACPT) + |
|
| 53 |
* |
* |
Not Used |
|
| 54 |
VE702 (BU-WH) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 2 (APP2) |
|
| 55 |
VE701 (YE-OG) |
20 |
SENSOR - ACCELERATOR PEDAL POSITION # 1 (APP1) |
|
| 56 |
* |
* |
Not Used |
|
| 57 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
| 58 |
CE237 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY (PCM) |
|
| 59 |
CDC10 (BU-OG) |
20 |
CTRL MOD. - POWERTRAIN # GENERATOR REGULATOR CONTROL (GENRC) |
|
| 60 |
VCF35 (GN) |
20 |
CTRL MOD. - POWERTRAIN # ALL WHEEL DRIVE COMMAND (AWDC) |
|
| 61 |
* |
* |
Not Used |
|
| 62 |
CDC54 (WH-GN) |
20 |
CTRL MOD. - POWERTRAIN # STARTER MOTOR CONTROL SENSE (SMCS) |
|
| 63 |
VET77 (GY-YE) |
18 |
ACTUATOR - GEAR SHIFT # PWM OUT 2 (PWM2) |
|
| 64 |
* |
* |
Not Used |
|
| 65 |
CES09 (VT-OG) |
20 |
SWITCH - BRAKE PEDAL # SPEED CONTROL DEACTIVATION (BPS) + |
|
| 66 |
CCB08 (VT-WH) |
20 |
SWITCH - BRAKE ON/OFF (BOO) NORMAL OPEN |
|
| 67 |
* |
* |
Not Used |
|
| 68 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 69 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 70 |
* |
* |
Not Used |
|
| 71 |
VE727 (BU-BN) |
18 |
SENSOR - FUEL RAIL PRESSURE/INJECTION PRESSURE (FRP) (IPS) |
|
| 72 |
* |
* |
Not Used |
|
| 73 |
VE922 (VT-GN) |
20 |
TRANSDUCER - FUEL TANK PRESSURE (FTPT) |
|
| 74 |
VE805 (GY-OG) |
20 |
SENSOR - TURBOCHARGER BOOST PRESSURE (TCBP) |
|
| 75 |
VE740 (VT-GY) |
18 |
SENSOR - INTAKE AIR TEMPERATURE (IAT) |
|
| 76 |
VDC61 (VT-GN) |
20 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
M/T |
| 77 |
* |
* |
Not Used |
|
| 78 |
* |
* |
Not Used |
|
| 79 |
* |
* |
Not Used |
|
| 80 |
CE420 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # VAPOR MANAGEMENT VALVE (VAPOR BLOCKING - EVAPS) (VMV-CC) |
|
| 81 |
* |
* |
Not Used |
|
| 82 |
* |
* |
Not Used |
|
| 83 |
* |
* |
Not Used |
|
| 84 |
* |
* |
Not Used |
|
| 85 |
* |
* |
Not Used |
|
| 86 |
* |
* |
Not Used |
|
| 87 |
* |
* |
Not Used |
|
| 88 |
CET42 (GN-VT) |
20 |
SWITCH - TRANSMISSION SELECT SHIFT # DOWN (SST) |
|
| 89 |
CET43 (GY) |
20 |
SWITCH - TRANSMISSION SELECT SHIFT # UP (SST) |
|
| 90 |
* |
* |
Not Used |
|
| 91 |
* |
* |
Not Used |
|
| 92 |
* |
* |
Not Used |
|
| 93 |
* |
* |
Not Used |
|
| 94 |
VDC61 (VT-GN) |
20 |
SENSOR - BATTERY MONITORING SYSTEM # ALTERNATOR |
|
| 95 |
* |
* |
Not Used |
|
| 96 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
|
| 97 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
|
| 98 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
|
| 99 |
GD113 (BK-YE) |
16 |
GROUND - COWL TOP RIGHT |
|
| 100 |
* |
* |
Not Used |
|
| 101 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER |
|
| 102 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER |
|
| 103 |
CBB07 (GN-BU) |
16 |
FUSE - 7 OR CIRCUIT BREAKER |
|
