Oil Pressure Switch Connector End View (C1642)

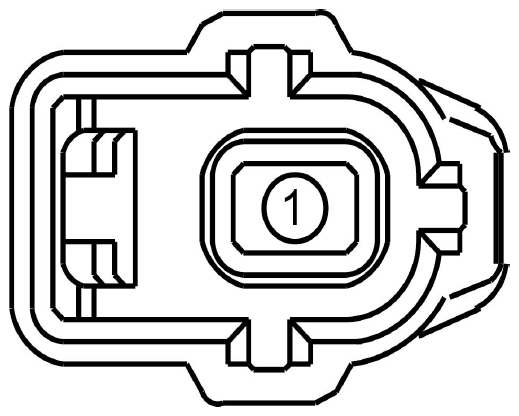

Fig 1: Identifying Oil Pressure Switch Connector End View (C1642)
G08755759Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 CMC24 (GY) 18 SWITCH - OIL PRESSURE 2.5L/3.7L
Available Pigtail Kits
Pigtail Kit Part Number WPT-538

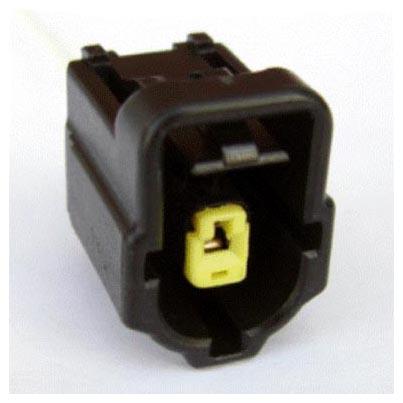

G08755760
 Service Part Number: 3U2Z-14S411-UHA
Gauge: 18
Pin material: Gold
Cavities: 1
Vehicle Uses
  • Switch - Oil Sending Unit
Pigtail Kit Part Number WPT-439

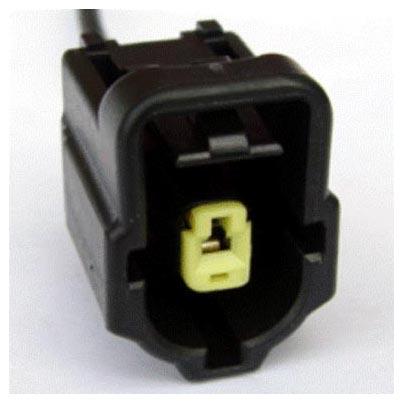

G08755761
 Service Part Number: 3U2Z-14S411-MHA
Gauge: 14
Pin material: Tin
Cavities: 1
Vehicle Uses
  • Sensor - Oil Pressure
  • Switch - Oil Sending Unit
