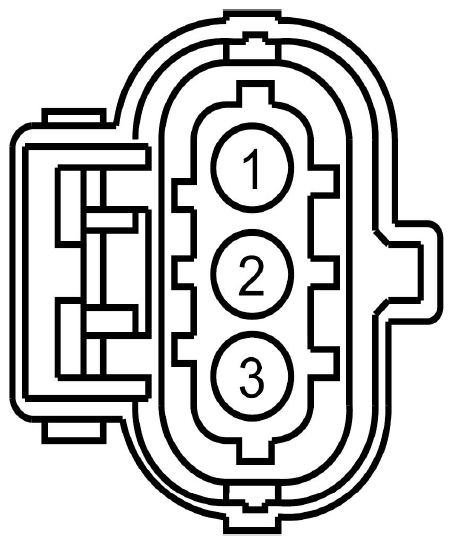

Manifold Absolute Pressure (Map) Sensor Connector End View (C1694)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VE803 (BU-GN) | 18 | SENSOR - MANIFOLD ABSOLUTE PRESSURE (MAP) | |
| 2 | RE454 (YE-GN) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | |
| 2 | RE433 (BU-GY) | 18 | CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (SIGRTN) | M/T |
| 3 | LE458 (BU-WH) | 18 | CTRL MOD. - POWERTRAIN # VOLTAGE REFERENCE ENGINE (VREF) |

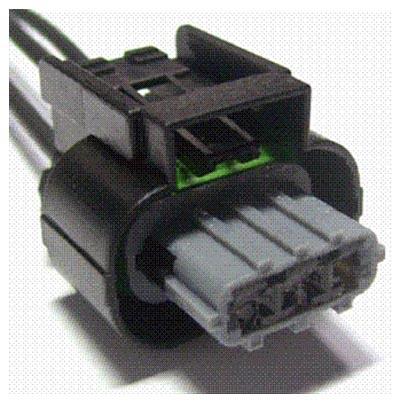

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1068 | Service Part Number: AU2Z-14S411-JA Gauge: 14 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
