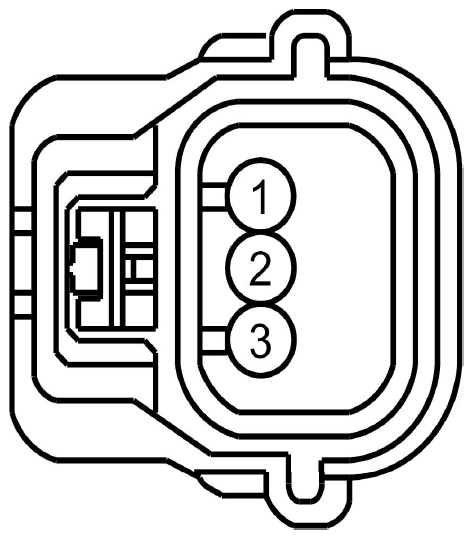

Front Active Park Assist Sensor LH Connector End View (C1607)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LMP06 (VT-GY) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT + | Fusion |
| 1 | LMP06 (VT-GY) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT + | MKZ |
| 2 | VMP20 (GY-OG) | 18 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | Fusion |
| 2 | VMP20 (GY-OG) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | MKZ |
| 3 | RMP06 (YE-OG) | 18 | CTRL MOD. - PARKING AID # SENSORS FRONT - | Fusion |
| 3 | RMP06 (YE-OG) | 22 | CTRL MOD. - PARKING AID # SENSORS FRONT - | MKZ |

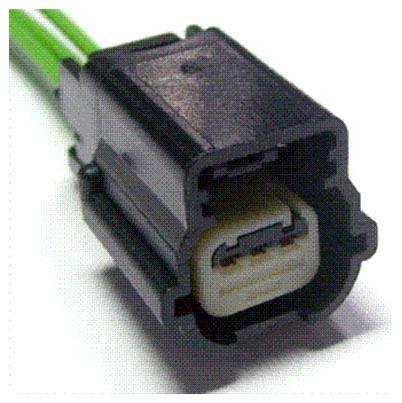

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1095 | Service Part Number: AU2Z-14S411-AFA Gauge: 18 Pin material: Silver Cavities: 3 Vehicle Uses
|
