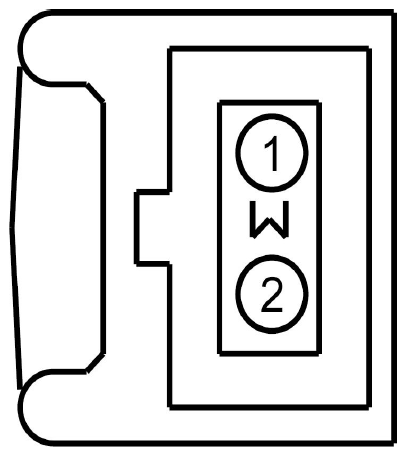

Cold Start Fuel Pump Connector End View (C1696)

Fig 1: Identifying Cold Start Fuel Pump Connector End View (C1696)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT
2	CE618 (BN-VT)	20	E100 RELAY (CSM)

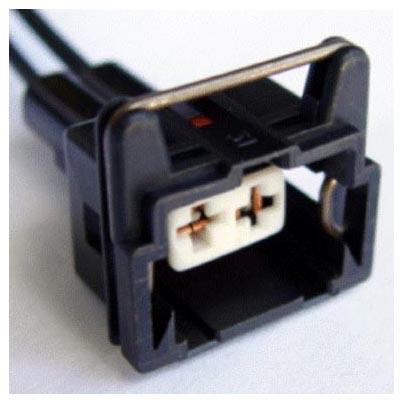

Available Pigtail Kits
Pigtail Kit Part Number WPT-451	Service Part Number: 3U2Z-14S411-MTA  Gauge: 16  Pin material: Tin  Cavities: 2  Vehicle Uses Motor - Windshield Washer Fluid Pump Switch - Brake Pedal Position Switch - Brake Pressure Switch - Speed Control Deactivation Switch - Stop Lamp
