Cold Start Fuel Level Indicator Connector End View (C1695)

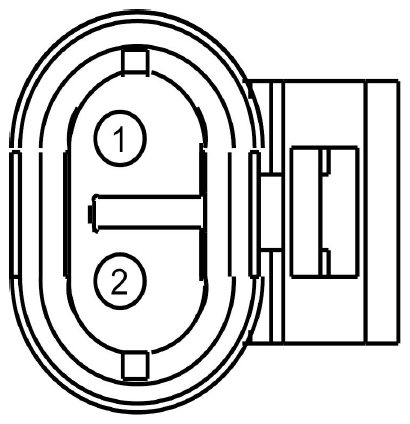

Fig 1: Identifying Cold Start Fuel Level Indicator Connector End View (C1695)
G08755807Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 GD113 (BK-YE) 16 GROUND - COWL TOP RIGHT
2 VE524 (GY-YE) 16 INDICATOR - COLD START FUEL LEVEL (CSFLI)
