Blower Motor Connector End View (C2004)

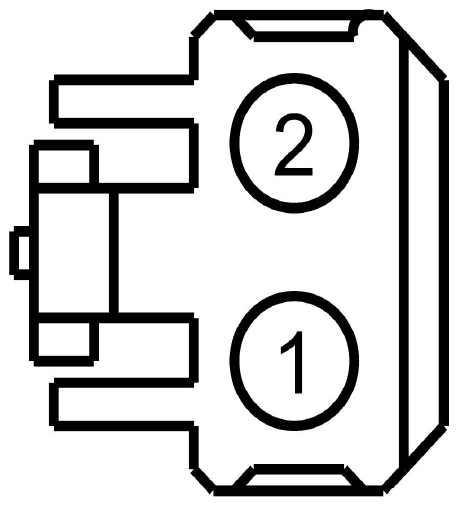

Fig 1: Identifying Blower Motor Connector End View (C2004)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	RH301 (GY-VT)	10	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR -
2	VH301 (YE-BU)	10	CTRL MOD. - BLOWER VARIABLE SPEED # BLOWER MOTOR +

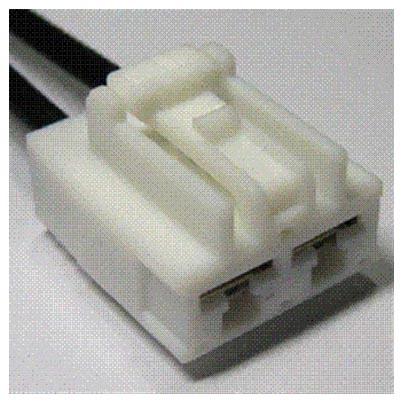

Available Pigtail Kits
Pigtail Kit Part Number WPT-1134	Service Part Number: BU2Z-14S411-HA  Gauge: Pin material: Tin  Cavities: 2  Vehicle Uses Motor - Heater/AC Blower (Auxiliary)
