Wheel Knuckle - FWD: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION -- HYBRID . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: WHEEL BEARING AND WHEEL HUB - FWD  .

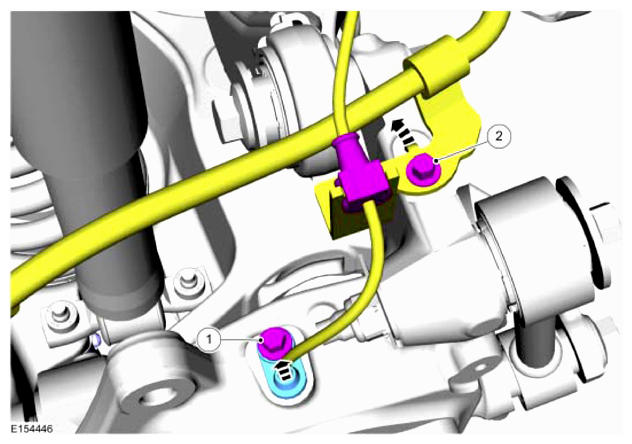

  3. G09059806

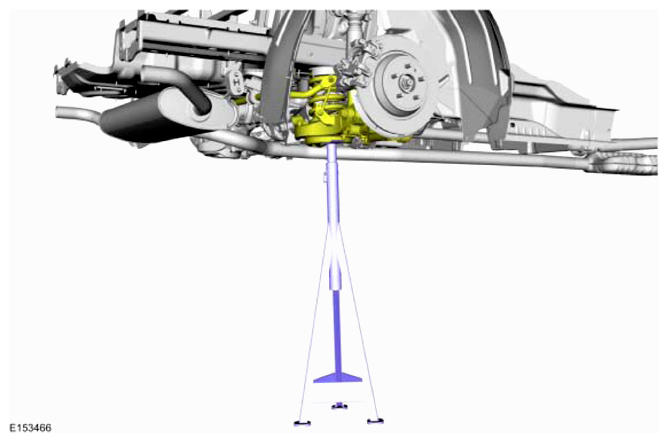

  4. Use the General Equipment: Vehicle/Axle Stands
    G09059807
  5. Refer to: LOWER ARM VERTICAL LINK  .

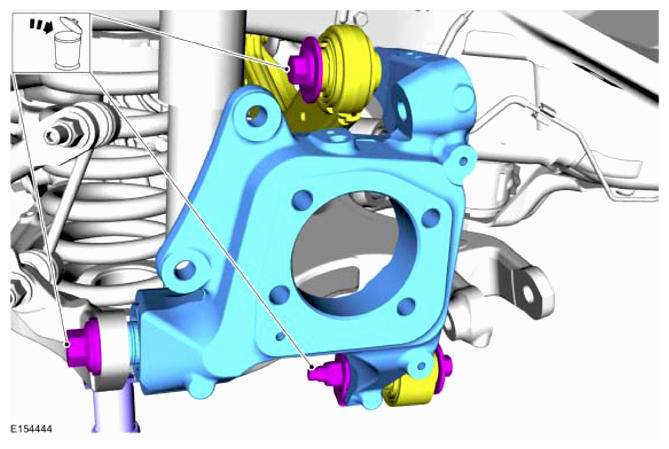

  6. Discard the specified component. Follow local disposal regulations.
    G09059808


NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.

All vehicles

  1. Refer to: WHEEL BEARING AND WHEEL HUB - FWD  .

    Vehicles with knuckle mounted wheel speed sensor

  2. G09059811

    Vehicles with bearing mounted wheel speed sensor

  3. G09059812

    All vehicles

  4. Use the General Equipment: Vehicle/Axle Stands
    G09059813
  5. Refer to: LOWER ARM VERTICAL LINK  .
  6. G09059814
