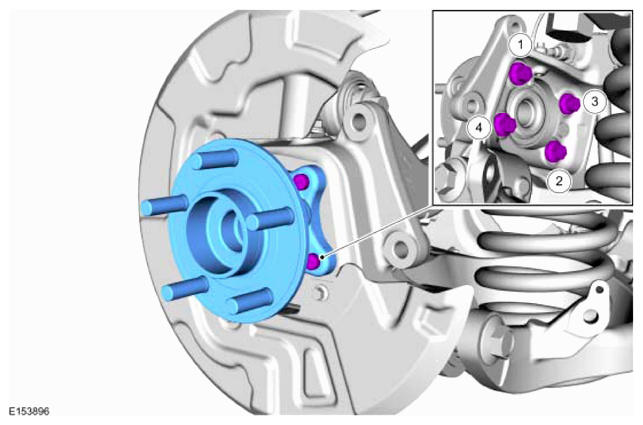

Wheel Bearing and Wheel Hub - FWD: Installation

1. Torque:  98 lb.ft (133 Nm)
2. Refer to: BRAKE DISC .

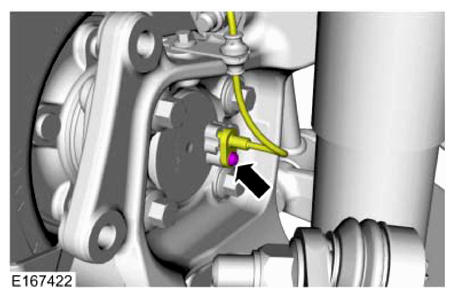

Vehicles with bearing mounted wheel speed sensor

1. Torque:  98 lb.ft (133 Nm)
2. Torque:  48 lb.in (5.4 Nm)

   Vehicles with knuckle mounted wheel speed sensor

3. Torque:  98 lb.ft (133 Nm)

   All vehicles

4. Refer to: BRAKE DISC .
