Removal and Installation: Spring: Installation

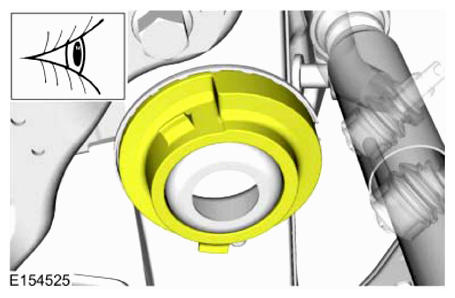

  1. Visual check.
    G09059789

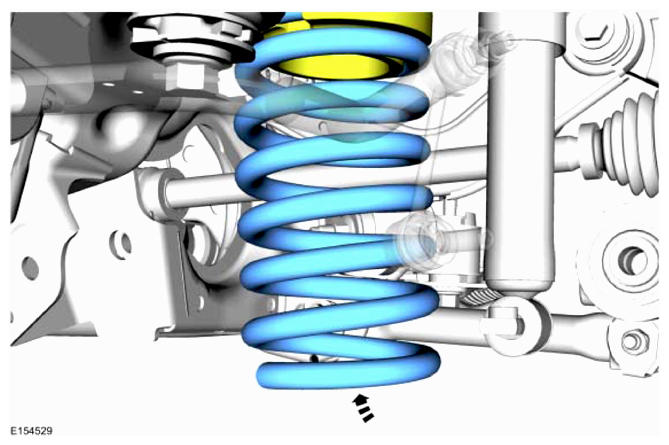

  2. G09059790

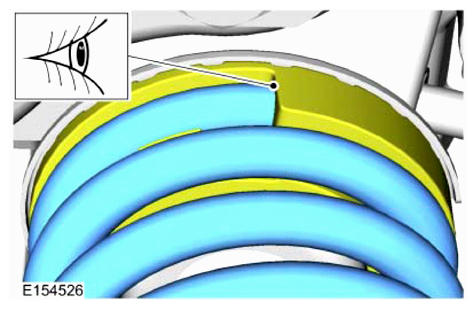

  3. NOTE: Make sure that the spring is correctly located in the upper spring seat.

    Visual check.

    G09059791
  4. Refer to: LOWER ARM  .
