Rear Stabilizer Bar: Installation

  1. NOTE: Apply water to the brackets to aid in installation.

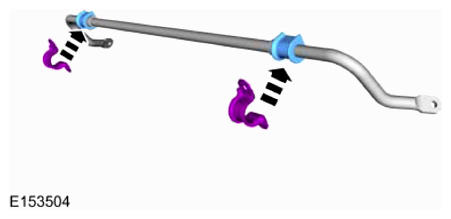

    G09059766
    1. Torque:  52 lb.ft (70 Nm)
    2. Torque:  76 lb.ft (103 Nm)

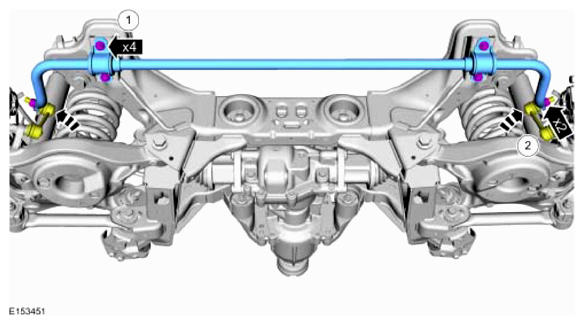

      G09059767
