Rear Shock Absorber: Removal

NOTE: Suspension fasteners are critical parts that affect the performance of vital components and systems. Failure of these fasteners may result in major service expense. Use the same or equivalent parts if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Tighten fasteners as specified.
  1. WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION -- HYBRID . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

    NOTE: Removal steps in this procedure may contain installation details.
  2. Refer to: WHEEL AND TIRE .

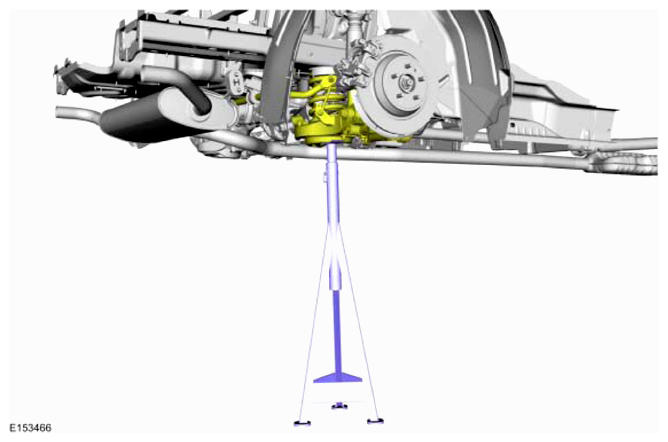

  3. Use the General Equipment: Vehicle/Axle Stands
    G09059792

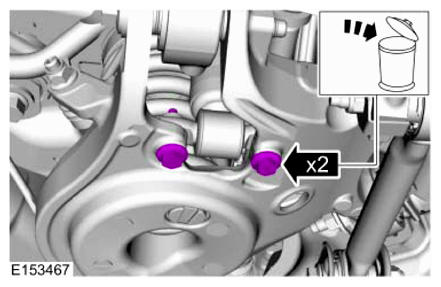

  4. Discard the specified component. Follow local disposal regulations.

    Torque:  35 lb.ft (48 Nm)

    G09059793

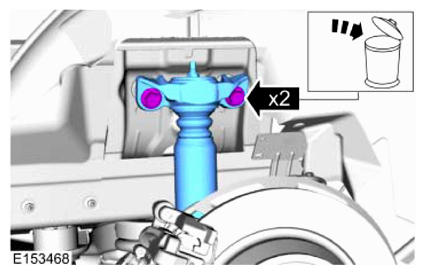

  5. Discard the specified component. Follow local disposal regulations.

    Torque:  66 lb.ft (90 Nm)

    G09059794
