Section 610 (OEM Wiring Diagrams (Hybrid/ENERGI))
>>
Wipers And Washers
Wipers And Washers
WARNING:
This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

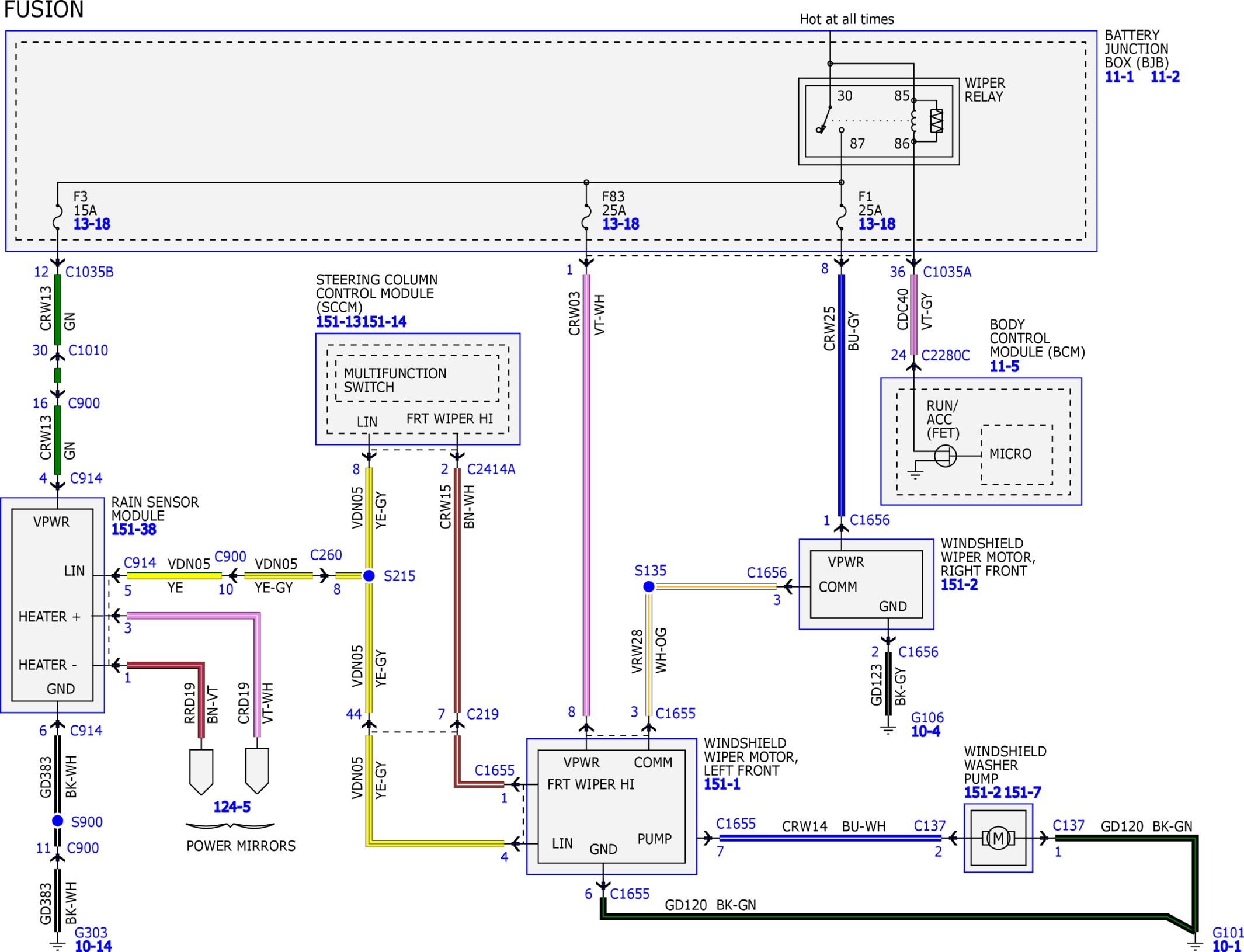

Fig 1: Wipers and Washers Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Wipers and Washers Wiring Diagram (2 of 2)
Courtesy of FORD MOTOR COMPANY
