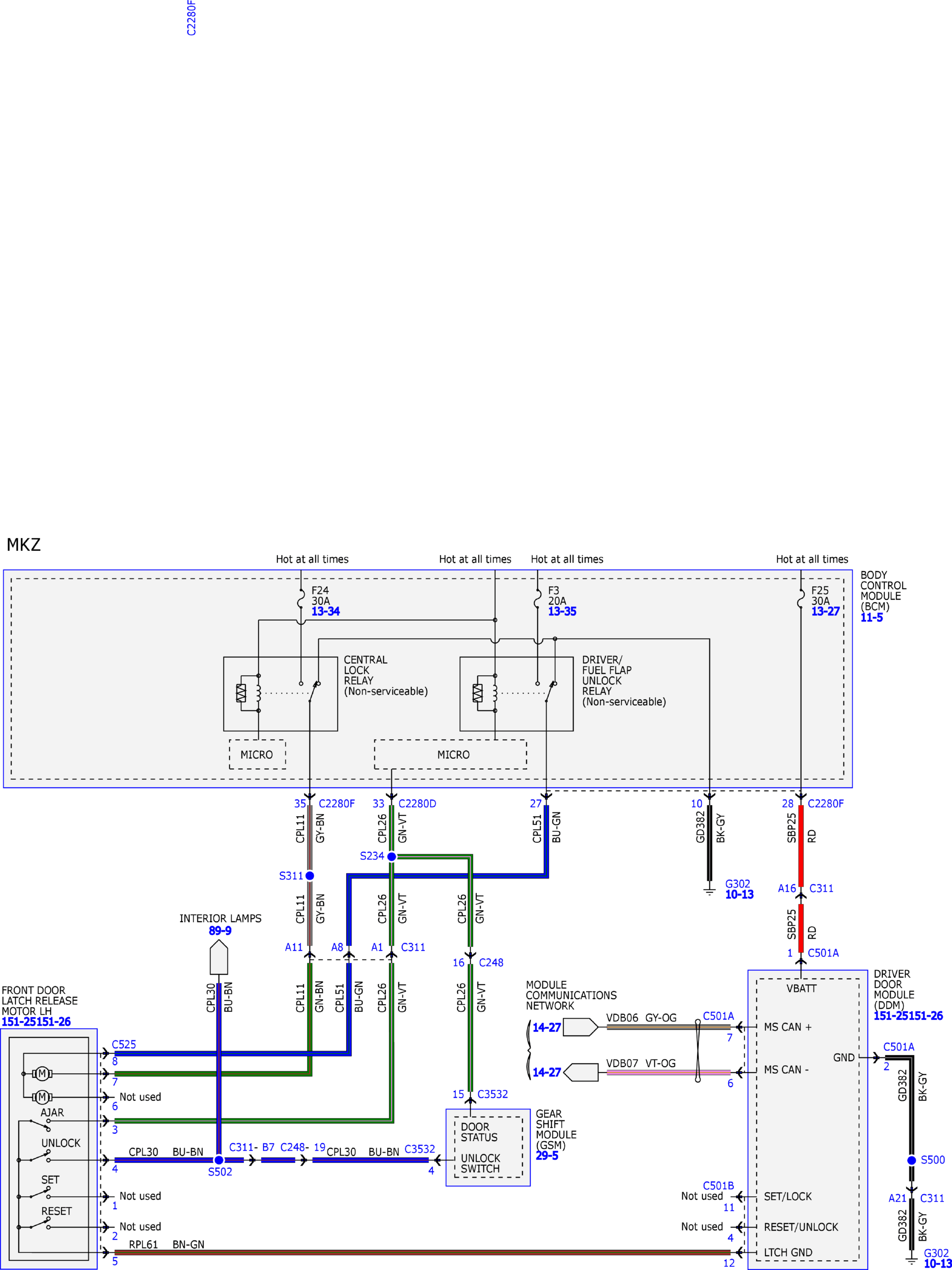

Fig 1: Remote Keyless Entry and Alarm Wiring Diagram (1 of 18)
Courtesy of FORD MOTOR COMPANY

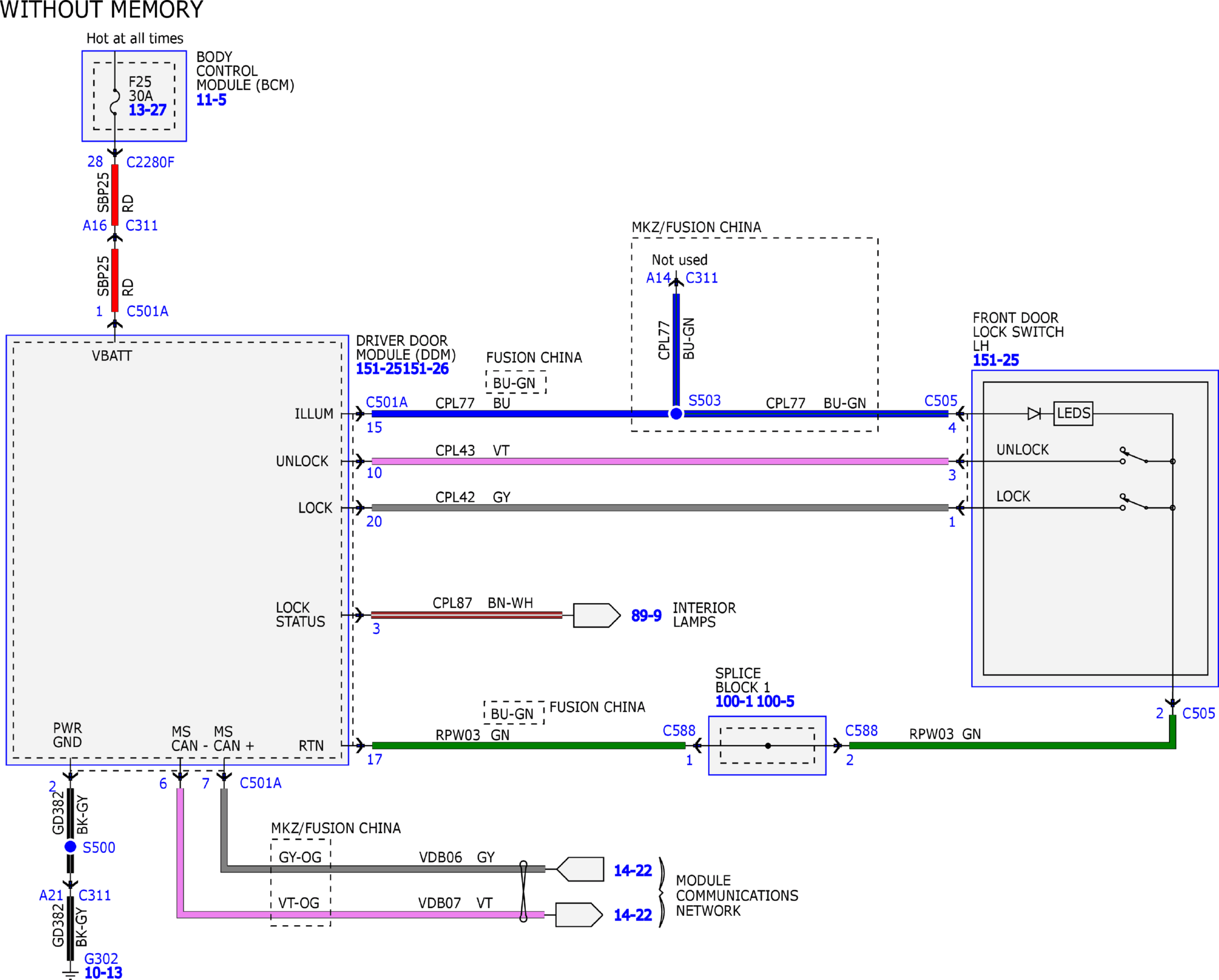

Fig 2: Remote Keyless Entry and Alarm Wiring Diagram (2 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 3: Remote Keyless Entry and Alarm Wiring Diagram (3 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 4: Remote Keyless Entry and Alarm Wiring Diagram (4 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 5: Remote Keyless Entry and Alarm Wiring Diagram (5 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 6: Remote Keyless Entry and Alarm Wiring Diagram (6 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 7: Remote Keyless Entry and Alarm Wiring Diagram (7 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 8: Remote Keyless Entry and Alarm Wiring Diagram (8 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 9: Remote Keyless Entry and Alarm Wiring Diagram (9 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 10: Remote Keyless Entry and Alarm Wiring Diagram (10 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 11: Remote Keyless Entry and Alarm Wiring Diagram (11 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 12: Remote Keyless Entry and Alarm Wiring Diagram (12 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 13: Remote Keyless Entry and Alarm Wiring Diagram (13 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 14: Remote Keyless Entry and Alarm Wiring Diagram (14 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 15: Remote Keyless Entry and Alarm Wiring Diagram (15 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 16: Remote Keyless Entry and Alarm Wiring Diagram (16 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 17: Remote Keyless Entry and Alarm Wiring Diagram (17 of 18)
Courtesy of FORD MOTOR COMPANY
Fig 18: Remote Keyless Entry and Alarm Wiring Diagram (18 of 18)
