Parking Aid

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

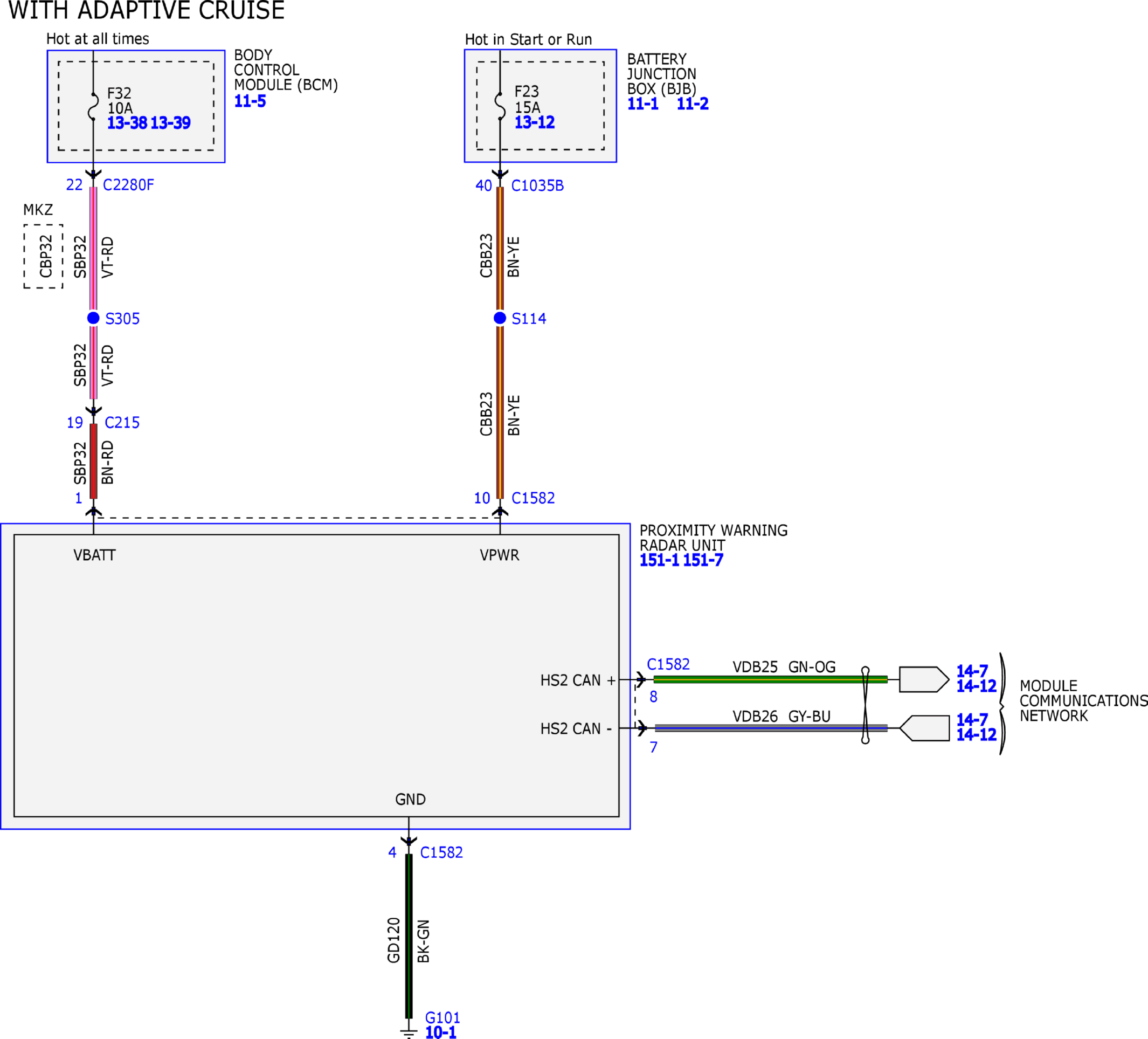

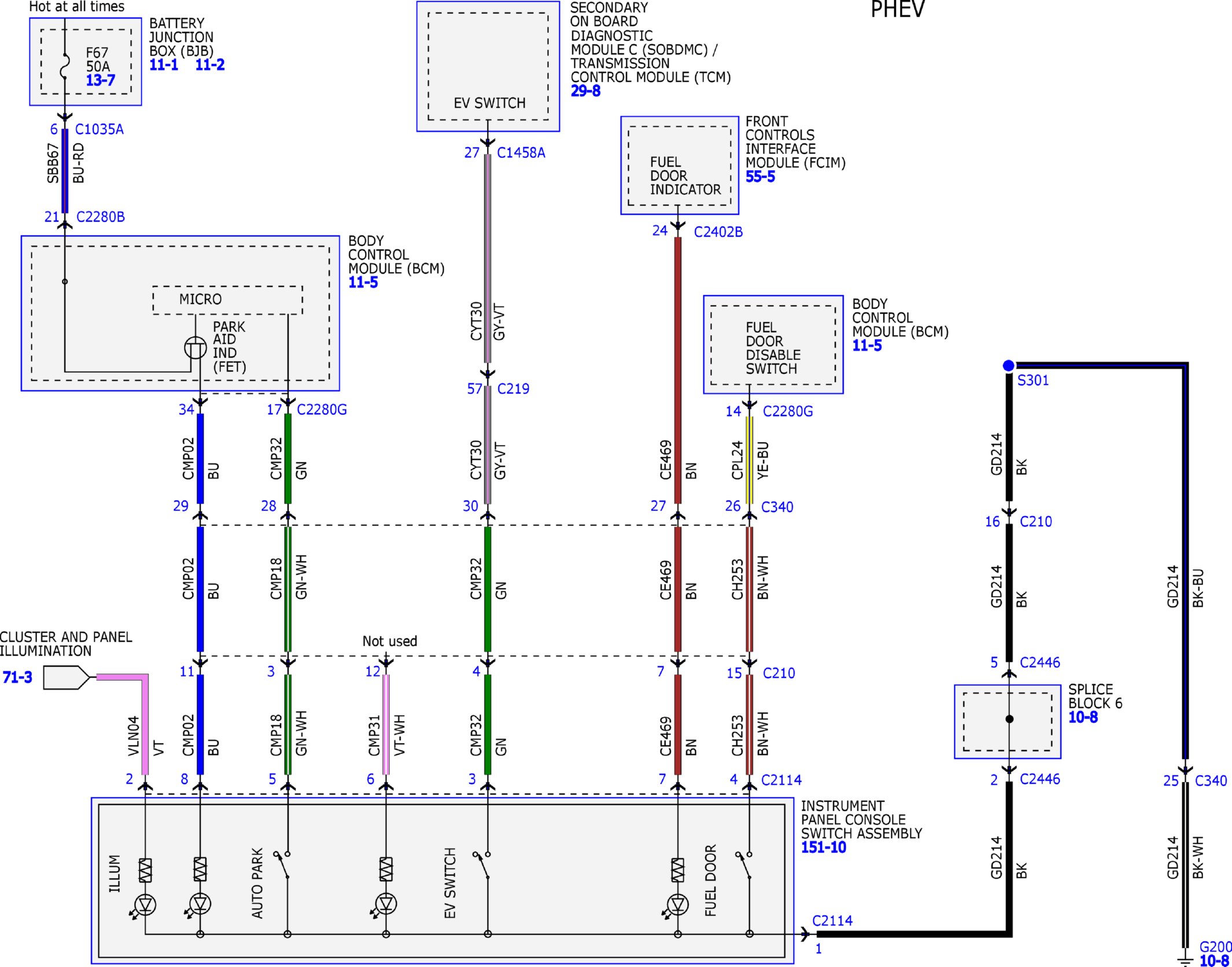

Fig 1: Parking Aid Wiring Diagram (1 of 9)

Courtesy of FORD MOTOR COMPANY

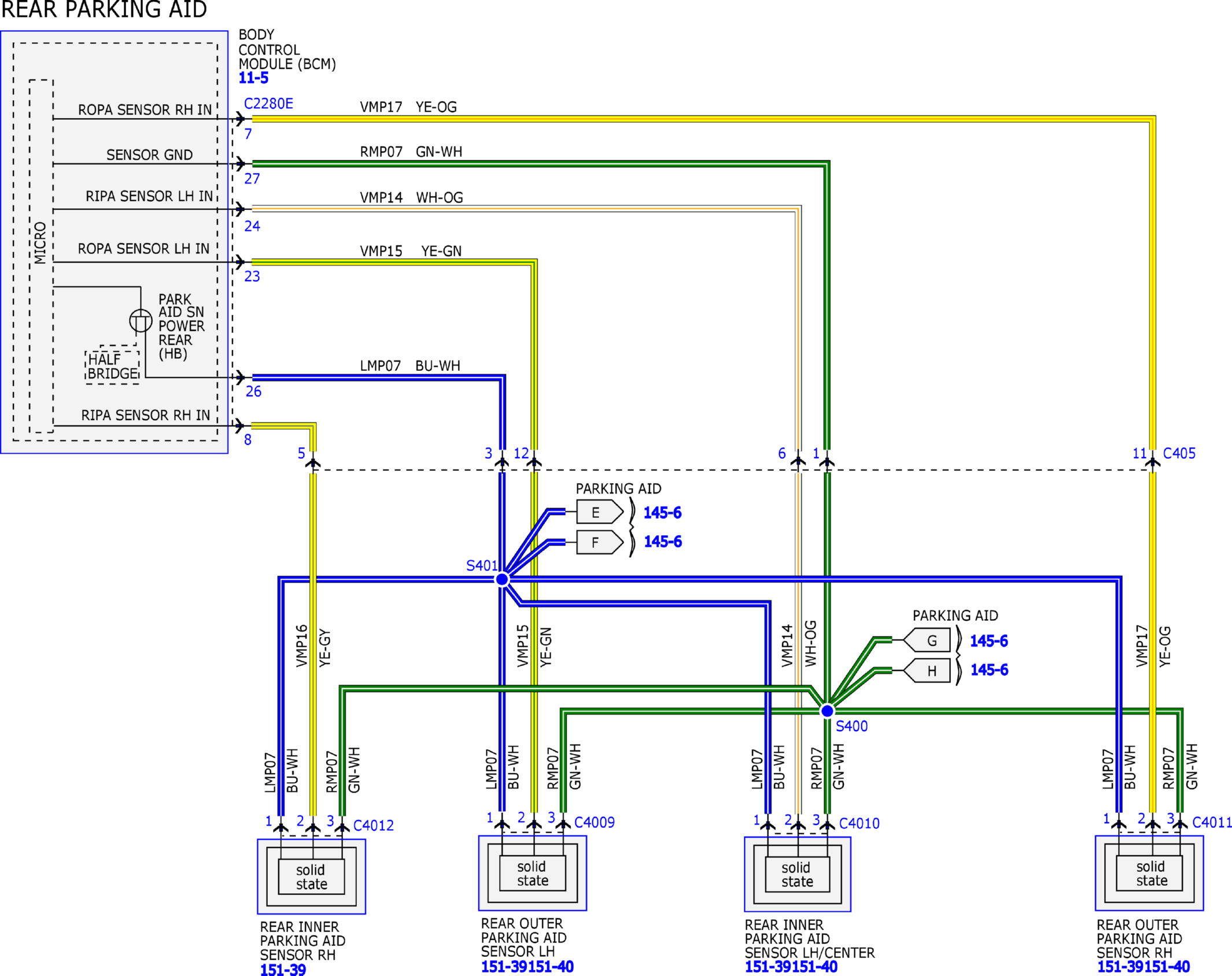

Fig 2: Parking Aid Wiring Diagram (2 of 9)

Courtesy of FORD MOTOR COMPANY

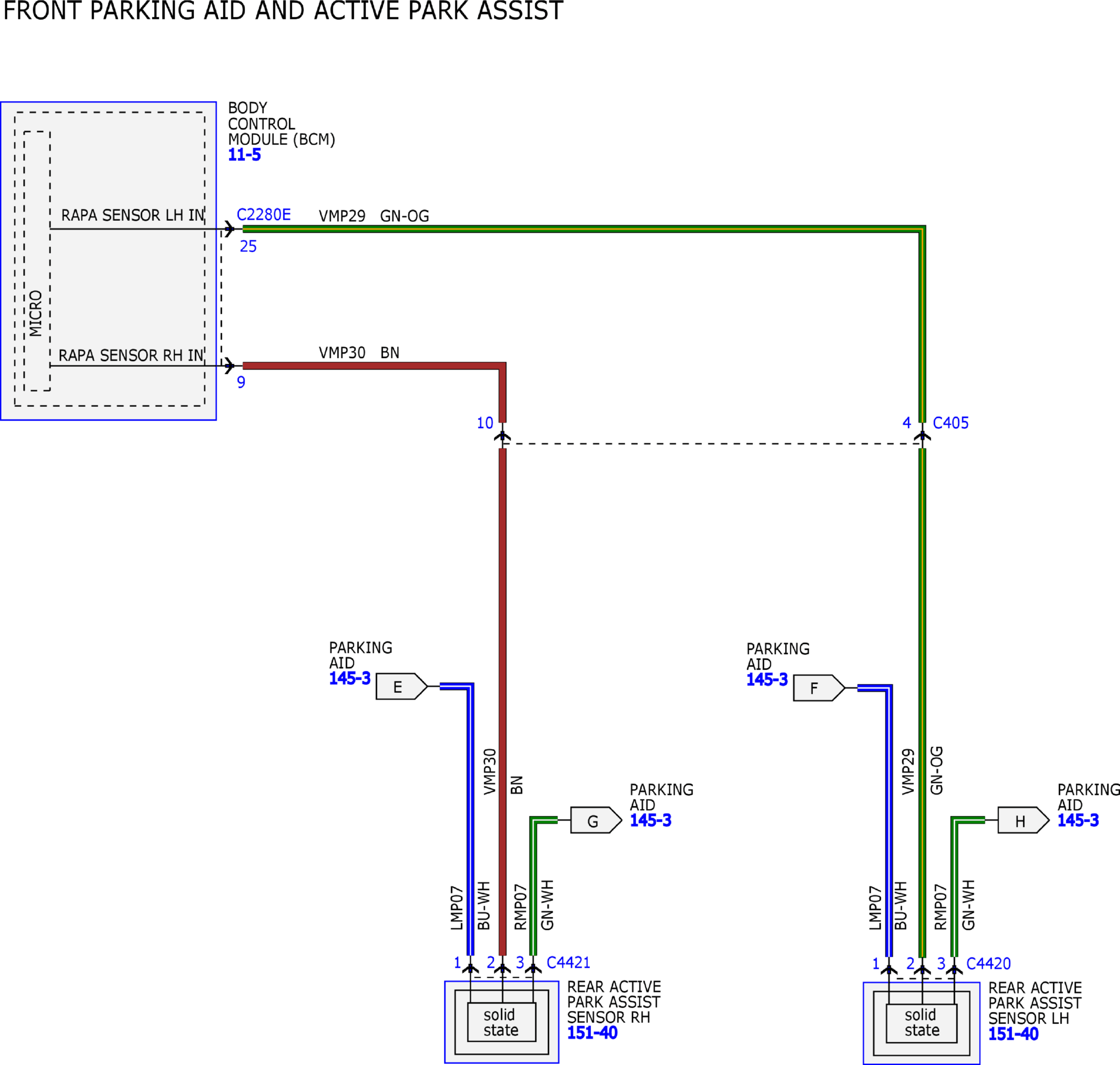

Fig 3: Parking Aid Wiring Diagram (3 of 9)

Courtesy of FORD MOTOR COMPANY

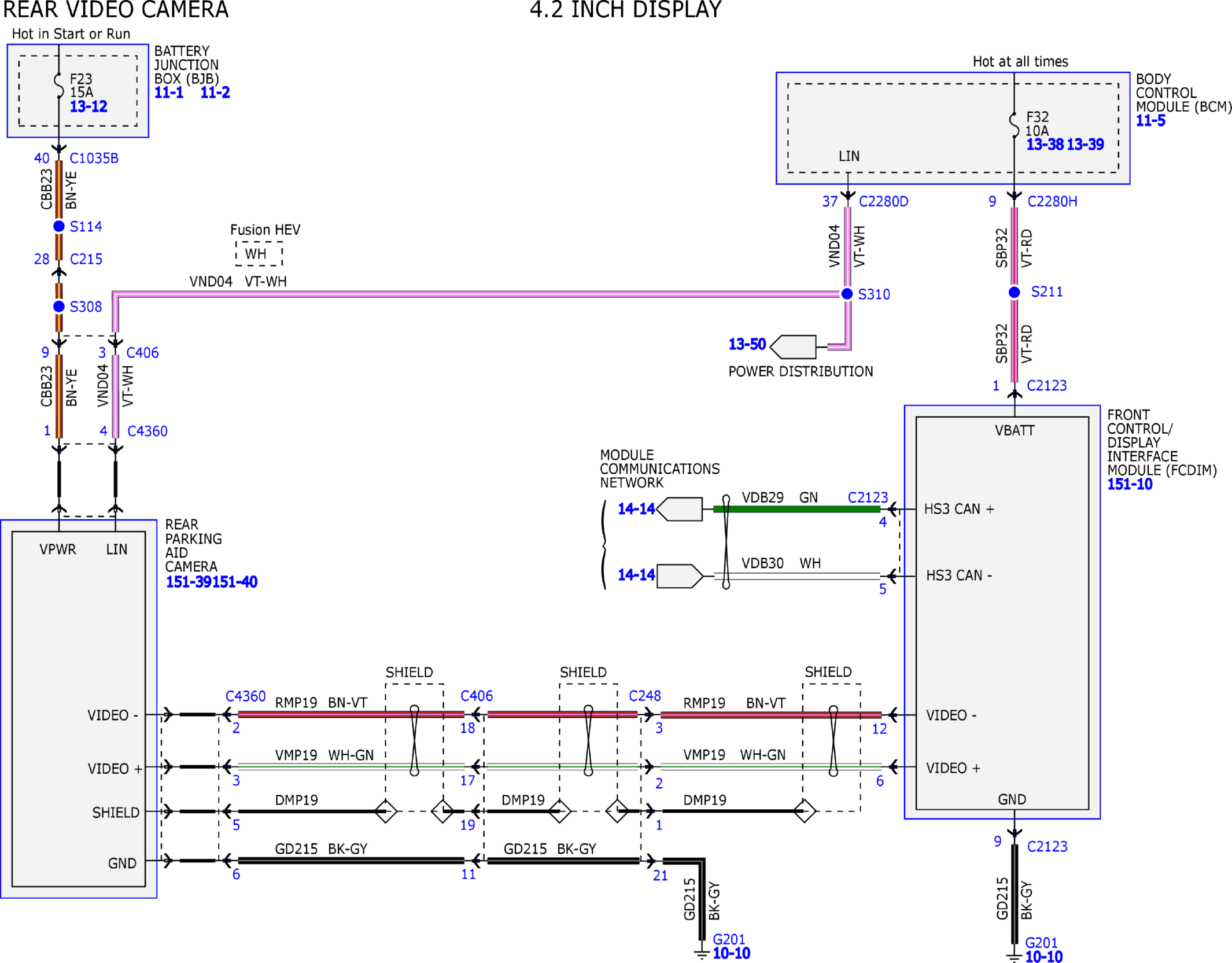

Fig 4: Parking Aid Wiring Diagram (4 of 9)

Courtesy of FORD MOTOR COMPANY

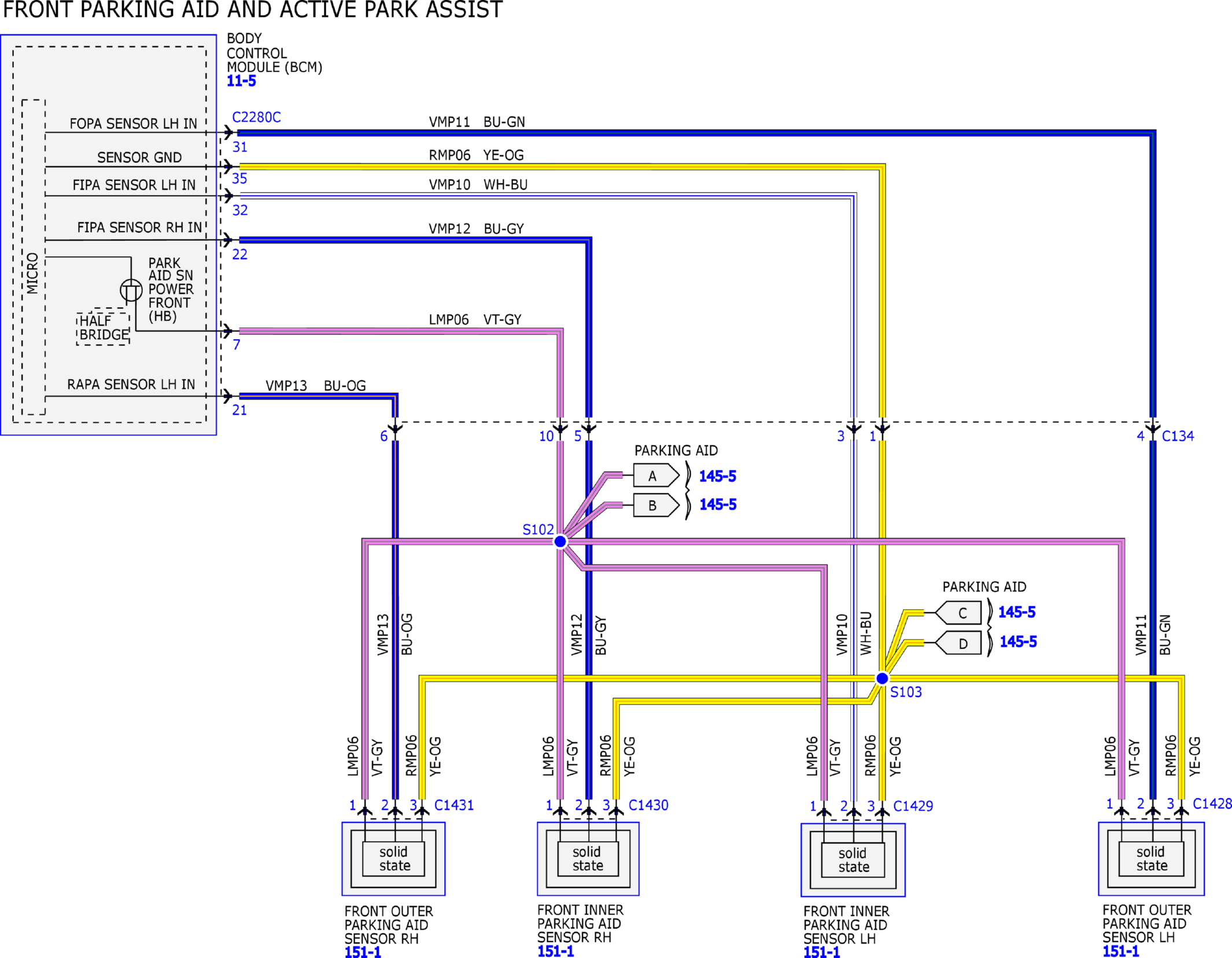

Fig 5: Parking Aid Wiring Diagram (5 of 9)

Courtesy of FORD MOTOR COMPANY

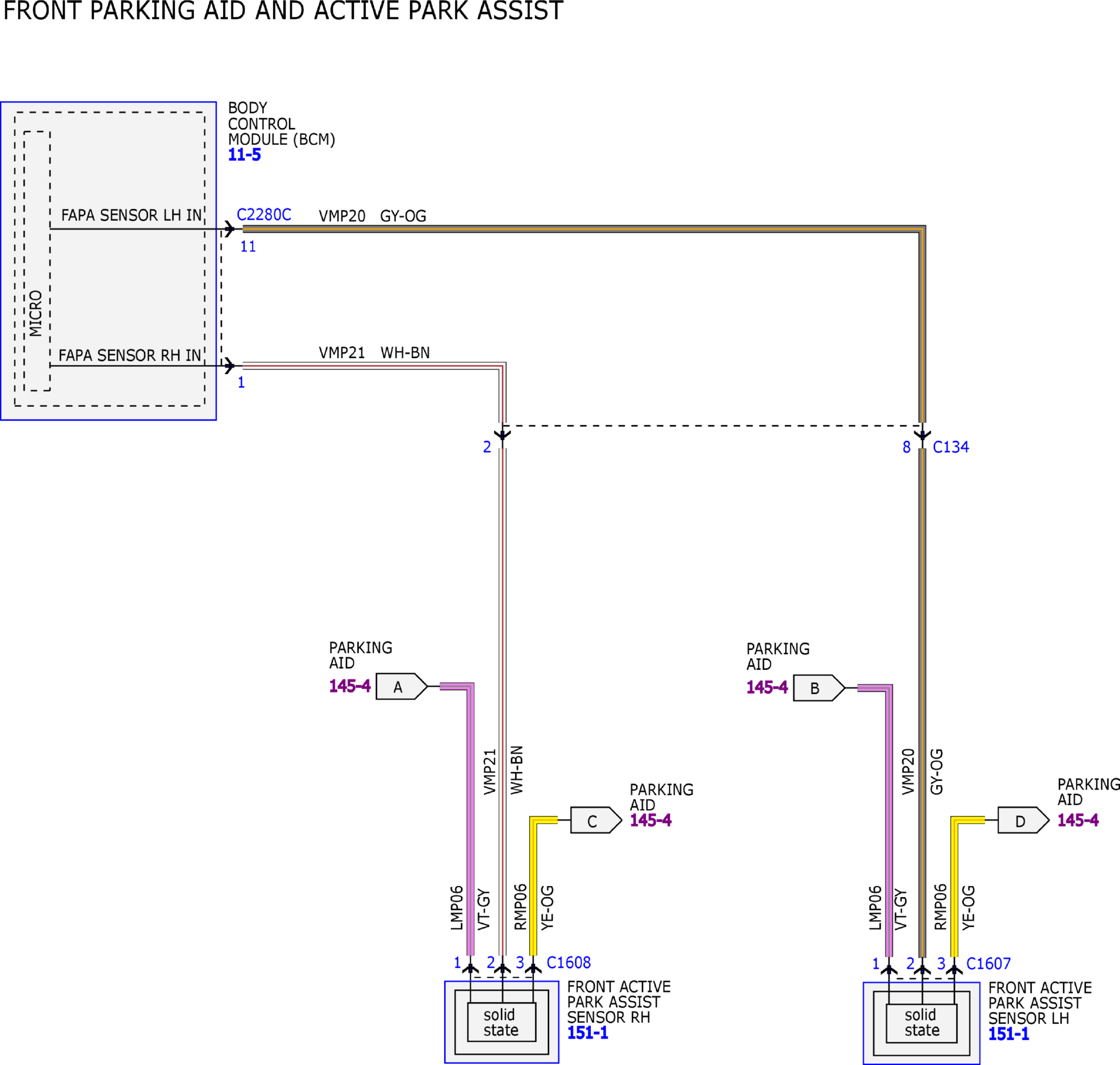

Fig 6: Parking Aid Wiring Diagram (6 of 9)

Courtesy of FORD MOTOR COMPANY

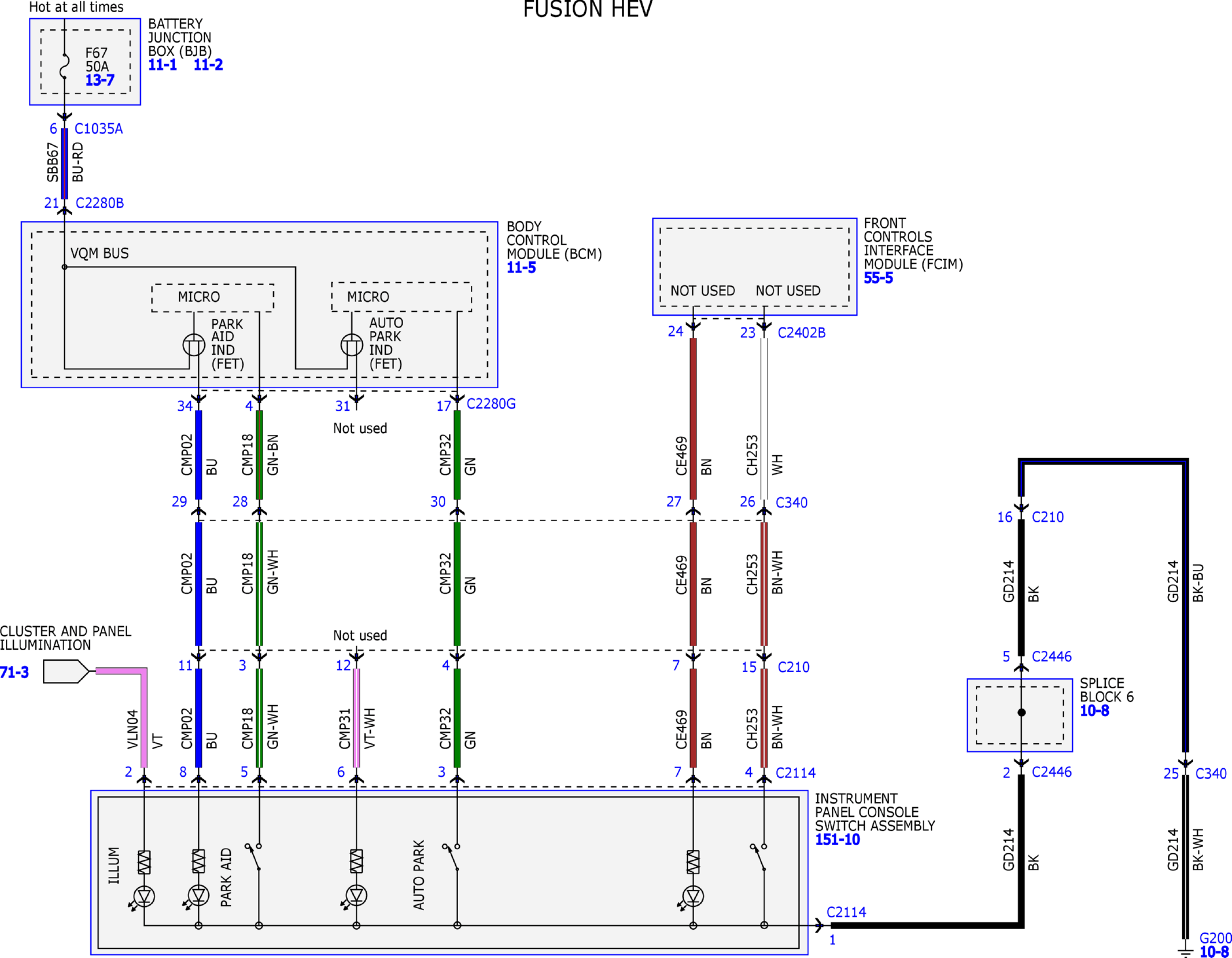

Fig 7: Parking Aid Wiring Diagram (7 of 9)

Courtesy of FORD MOTOR COMPANY

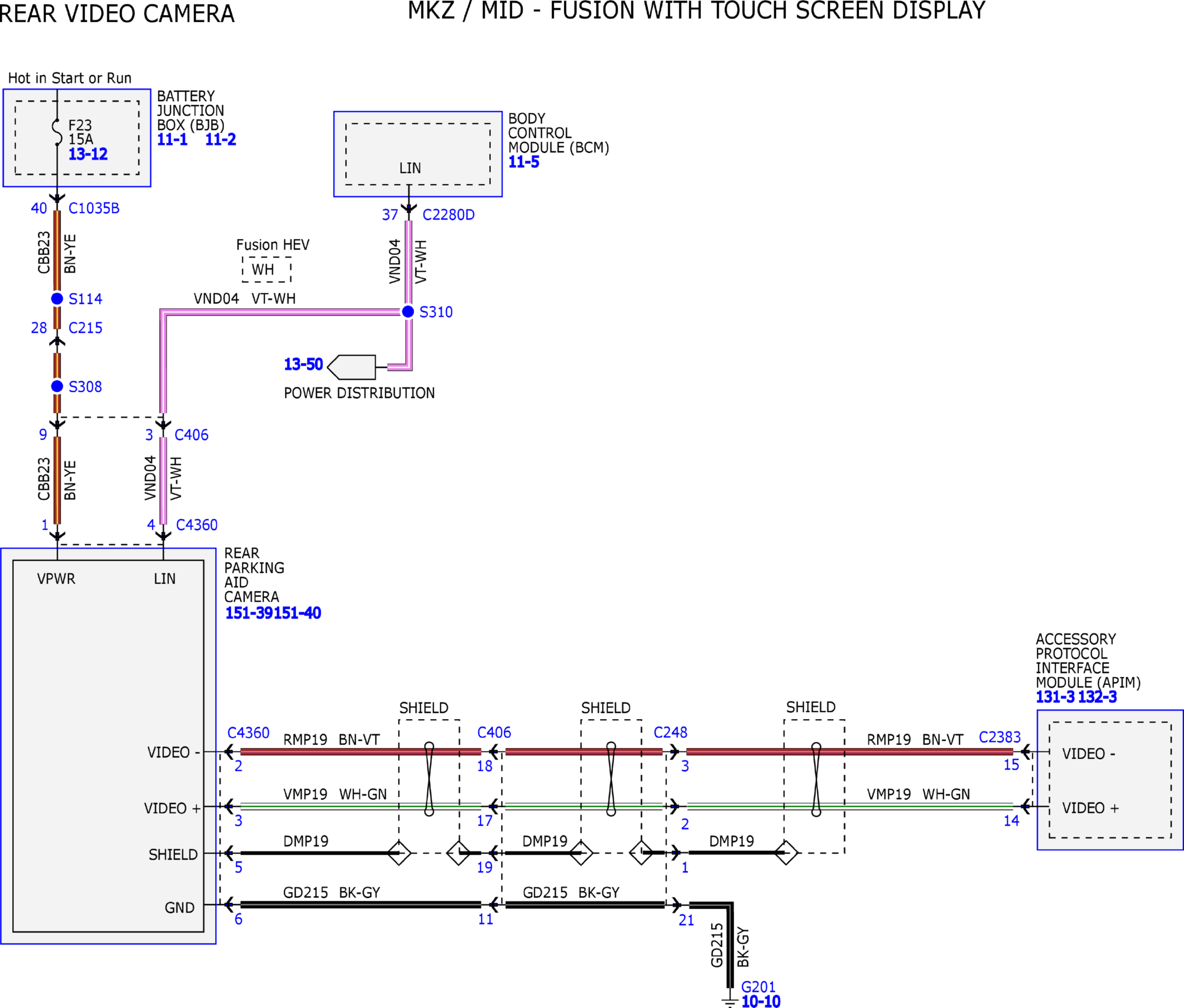

Fig 8: Parking Aid Wiring Diagram (8 of 9)

Courtesy of FORD MOTOR COMPANY

Fig 9: Parking Aid Wiring Diagram (9 of 9)

Courtesy of FORD MOTOR COMPANY
