Memory Seats

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

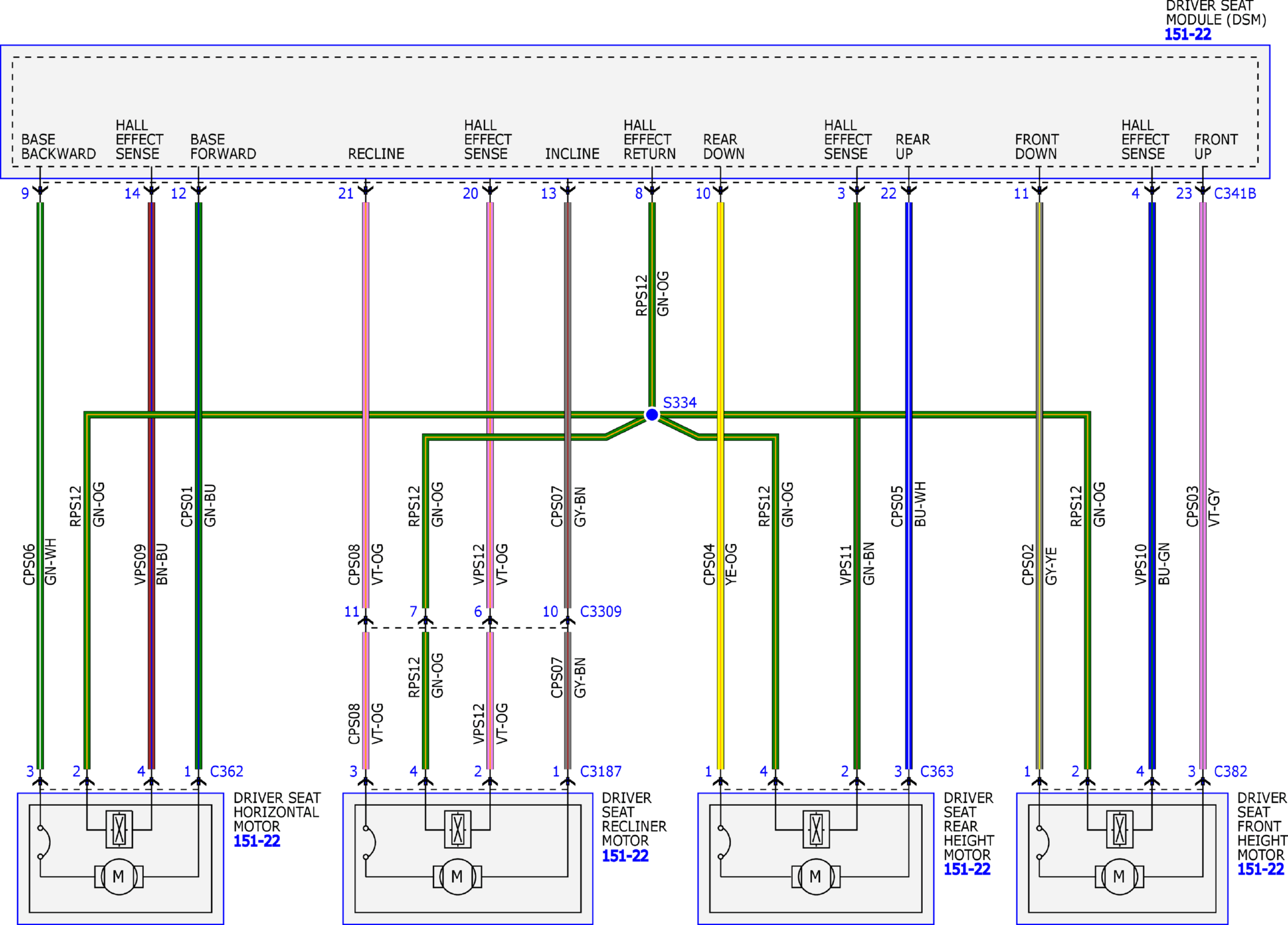

Fig 1: Memory Seats Wiring Diagram (1 of 7)

Courtesy of FORD MOTOR COMPANY

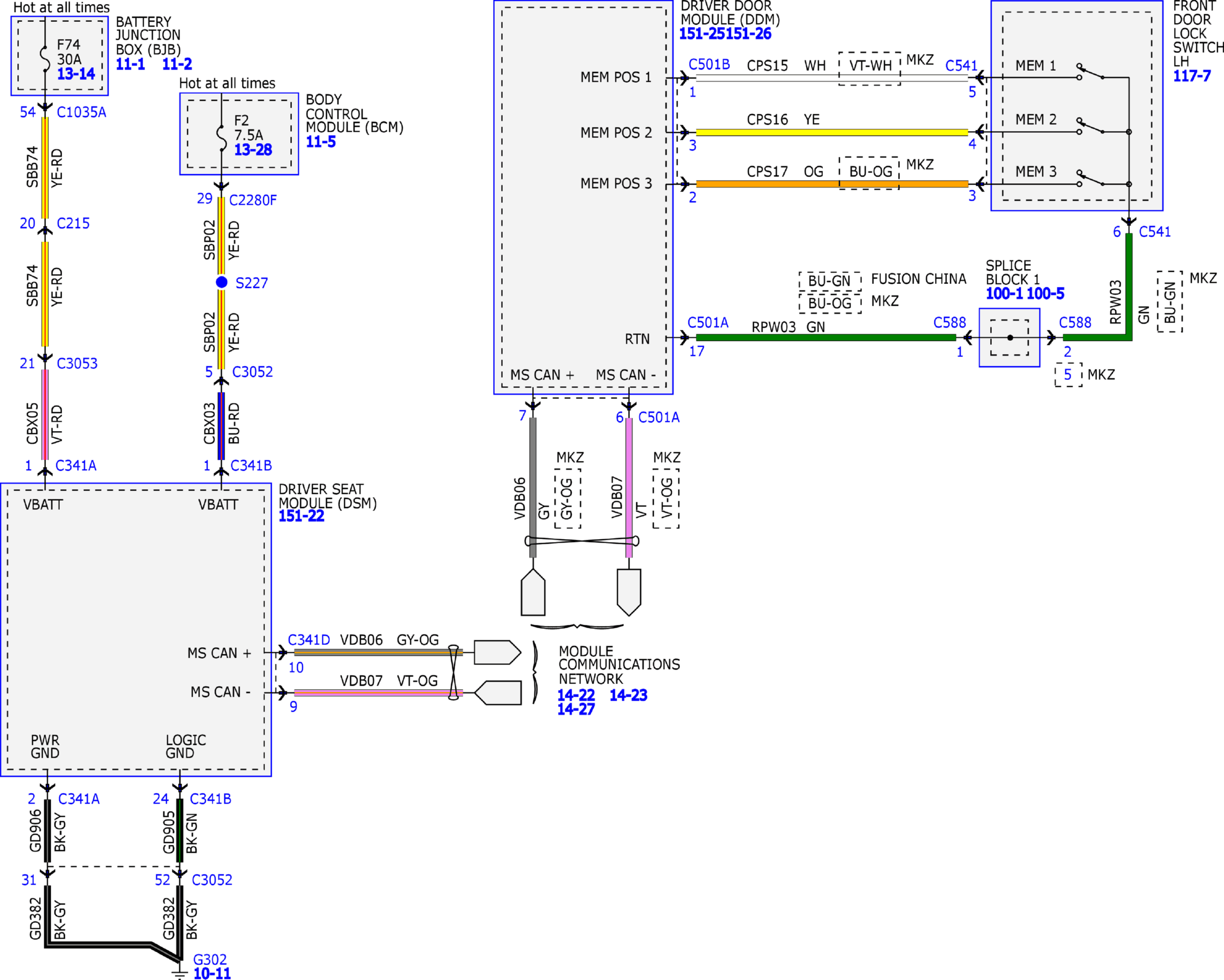

Fig 2: Memory Seats Wiring Diagram (2 of 7)

Courtesy of FORD MOTOR COMPANY

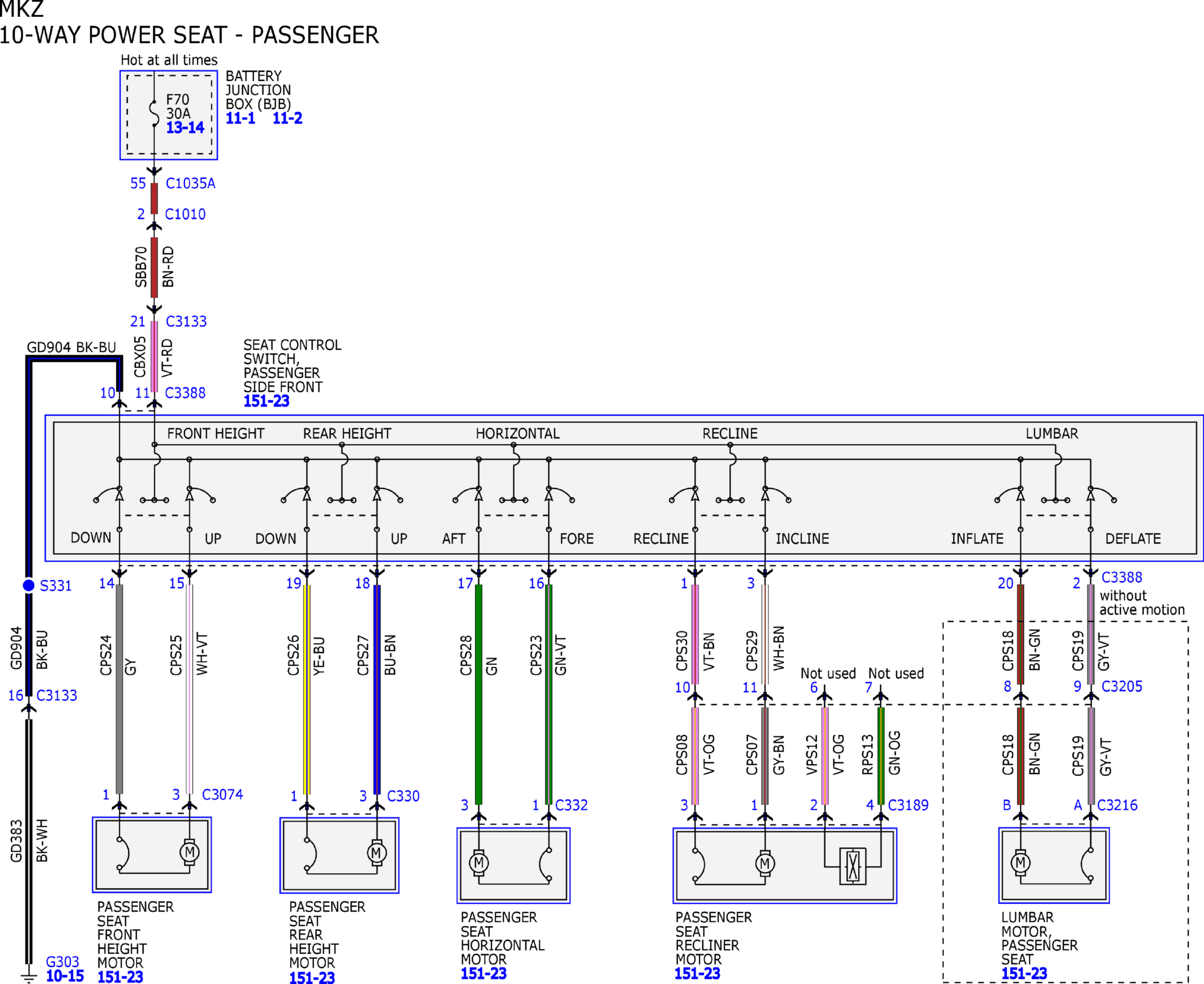

Fig 3: Memory Seats Wiring Diagram (3 of 7)

Courtesy of FORD MOTOR COMPANY

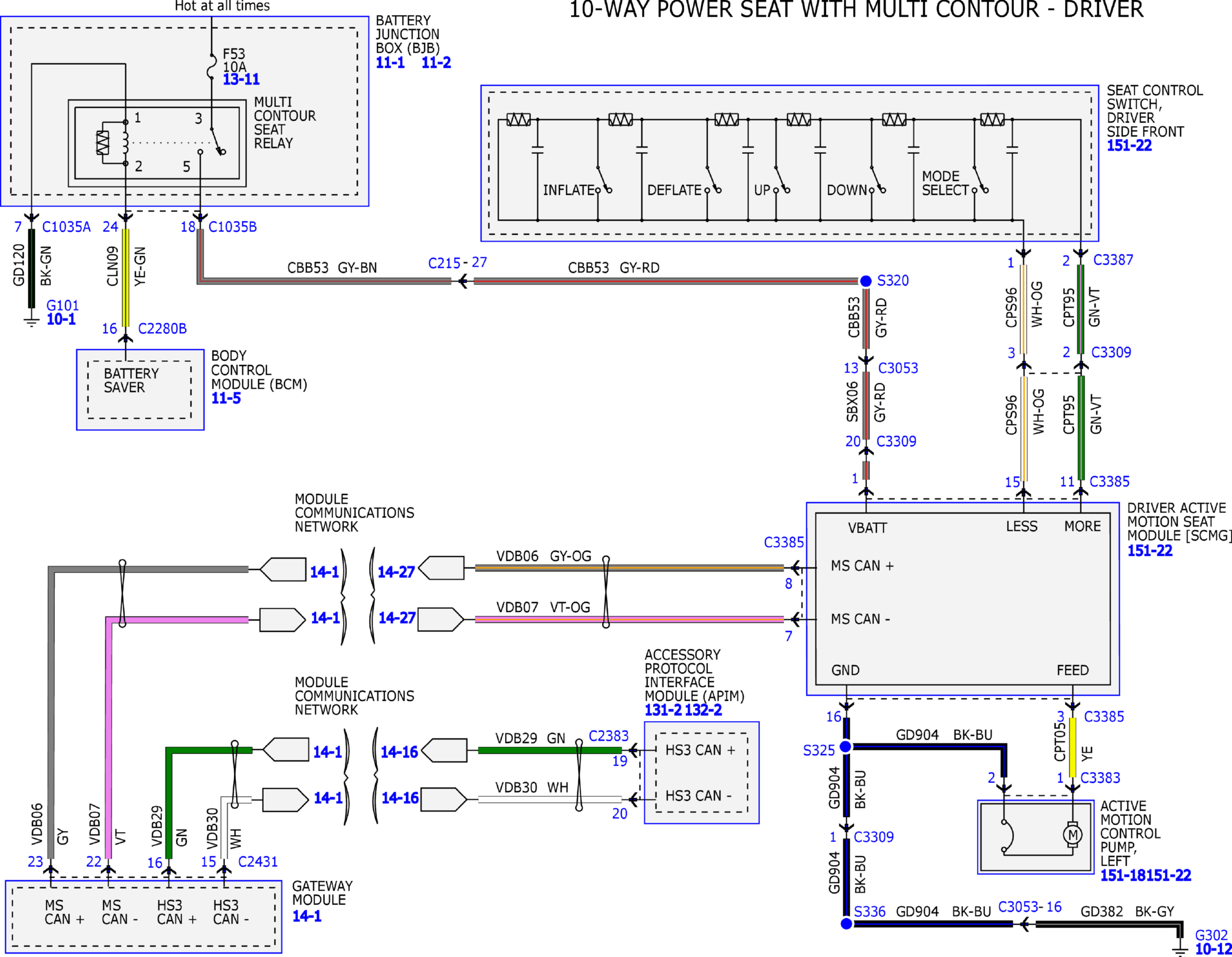

Fig 4: Memory Seats Wiring Diagram (4 of 7)

Courtesy of FORD MOTOR COMPANY

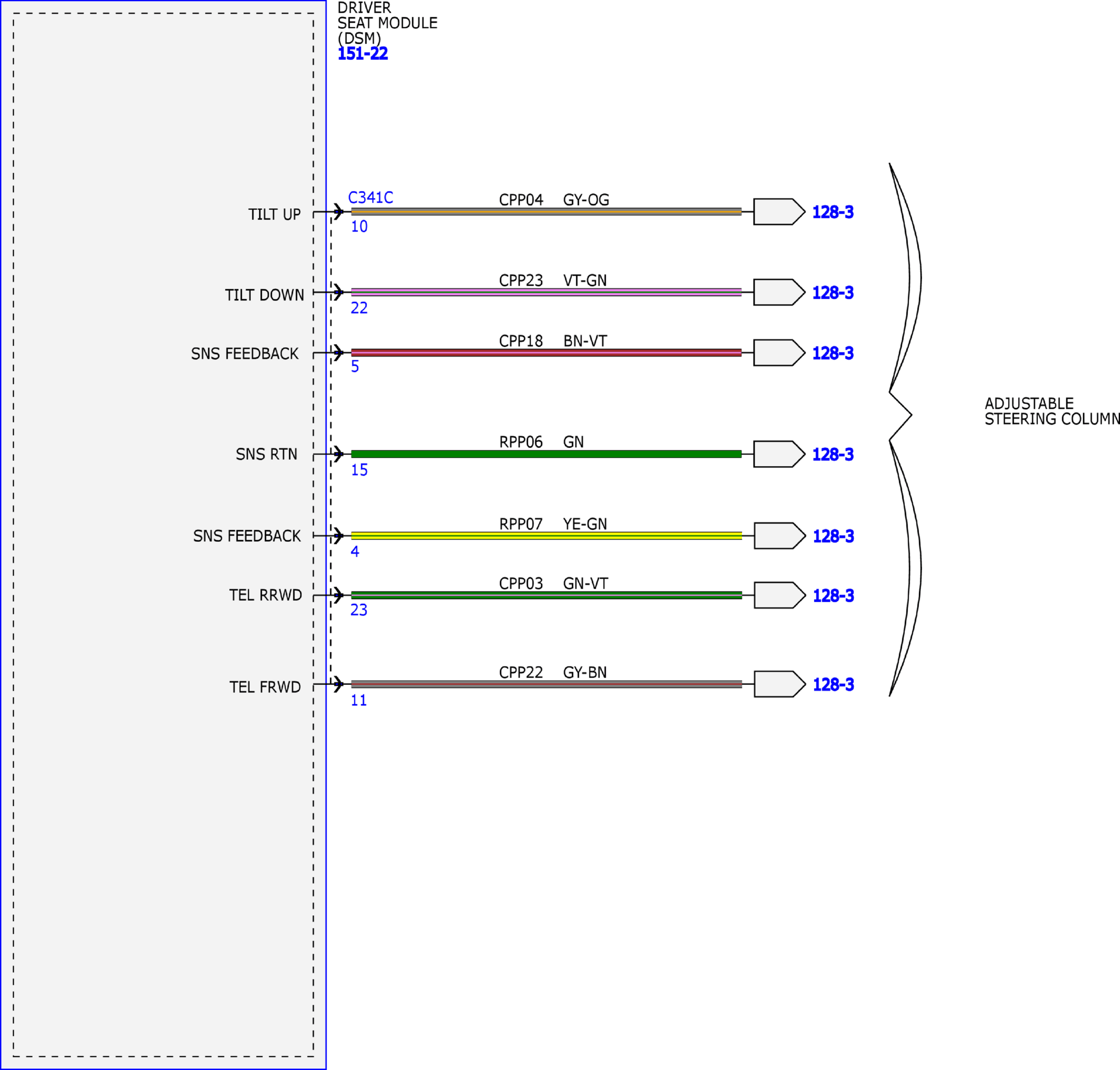

Fig 5: Memory Seats Wiring Diagram (5 of 7)

Courtesy of FORD MOTOR COMPANY

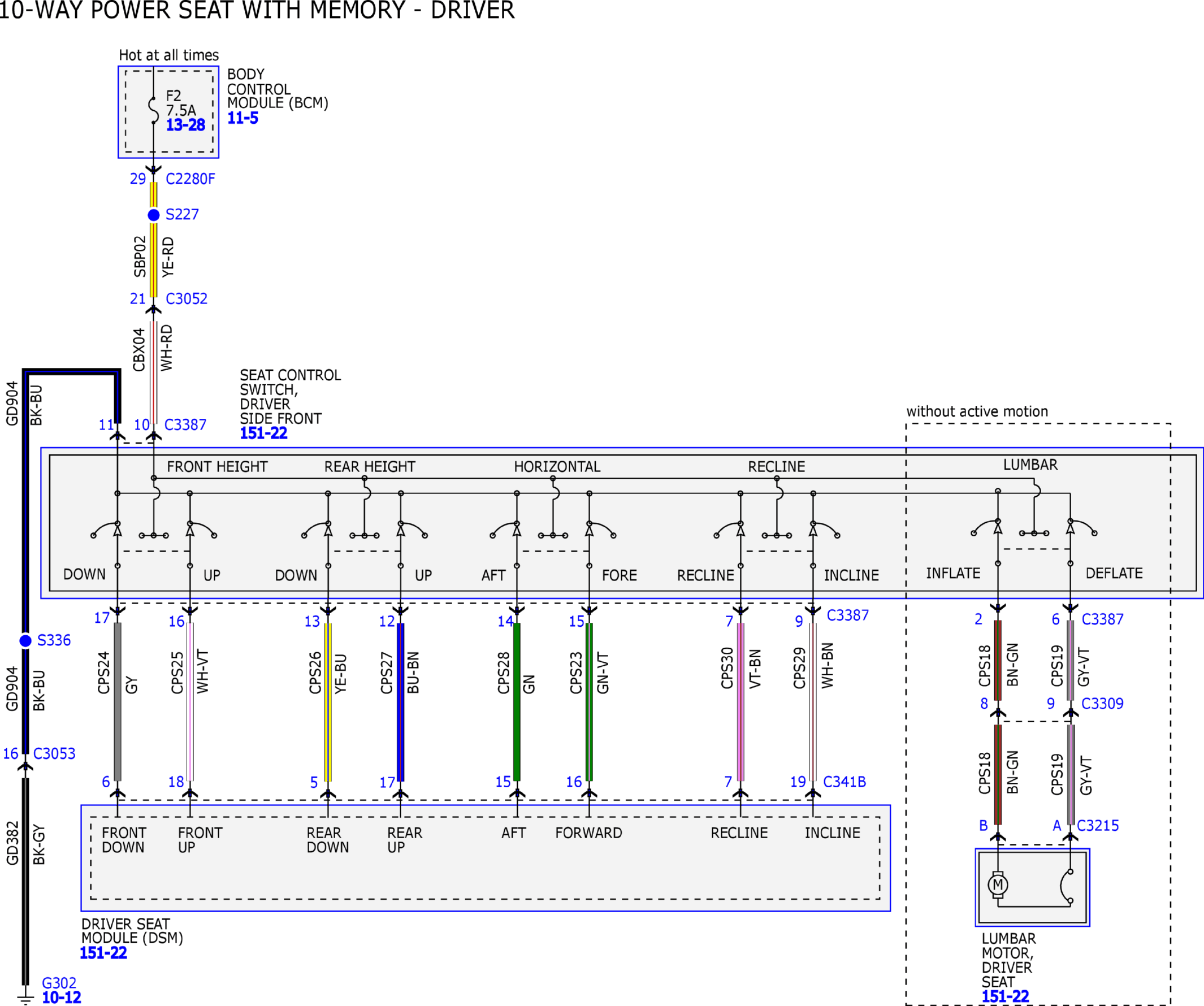

Fig 6: Memory Seats Wiring Diagram (6 of 7)

Courtesy of FORD MOTOR COMPANY

Fig 7: Memory Seats Wiring Diagram (7 of 7)

Courtesy of FORD MOTOR COMPANY
