Interior Lamps

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

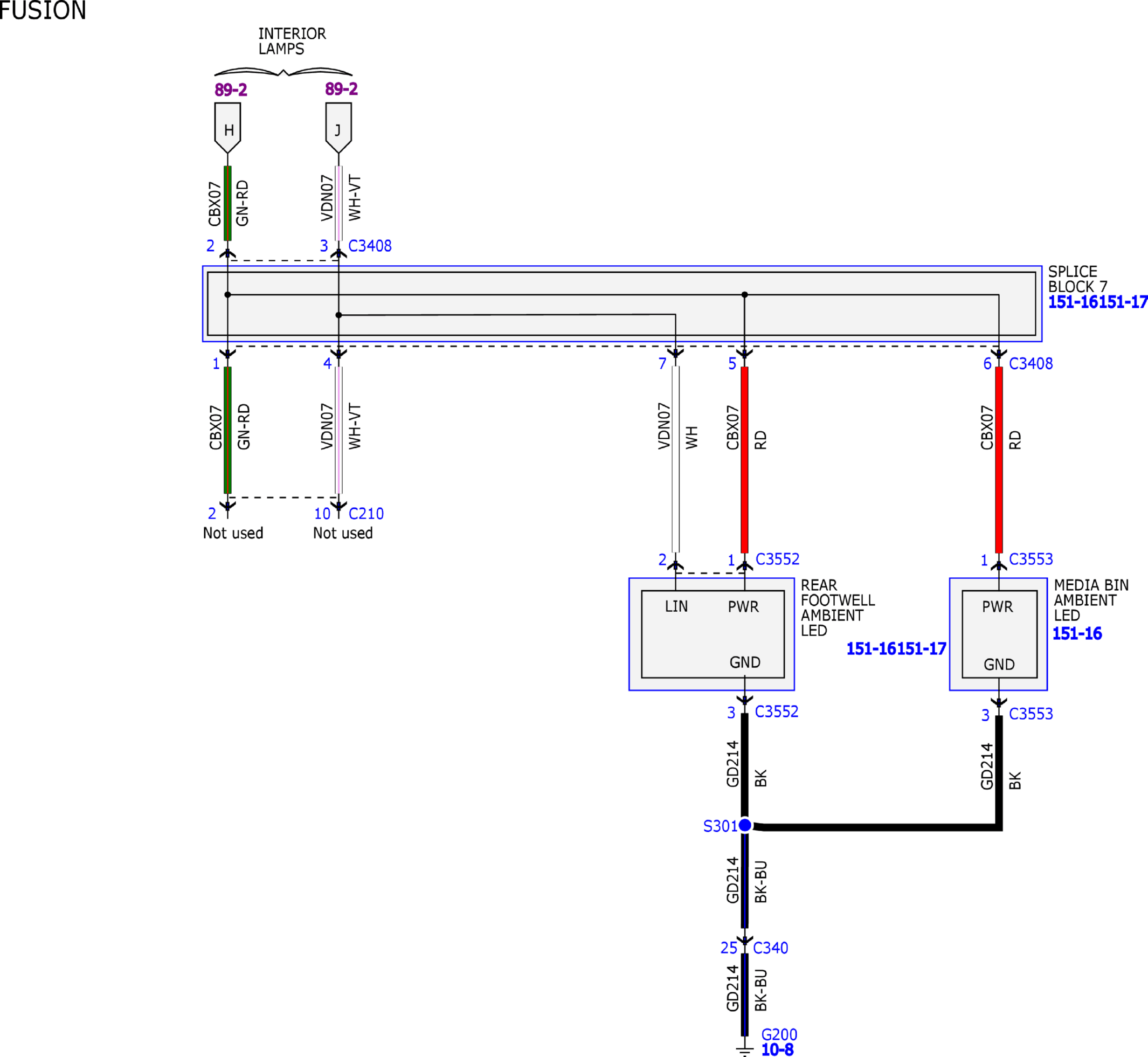

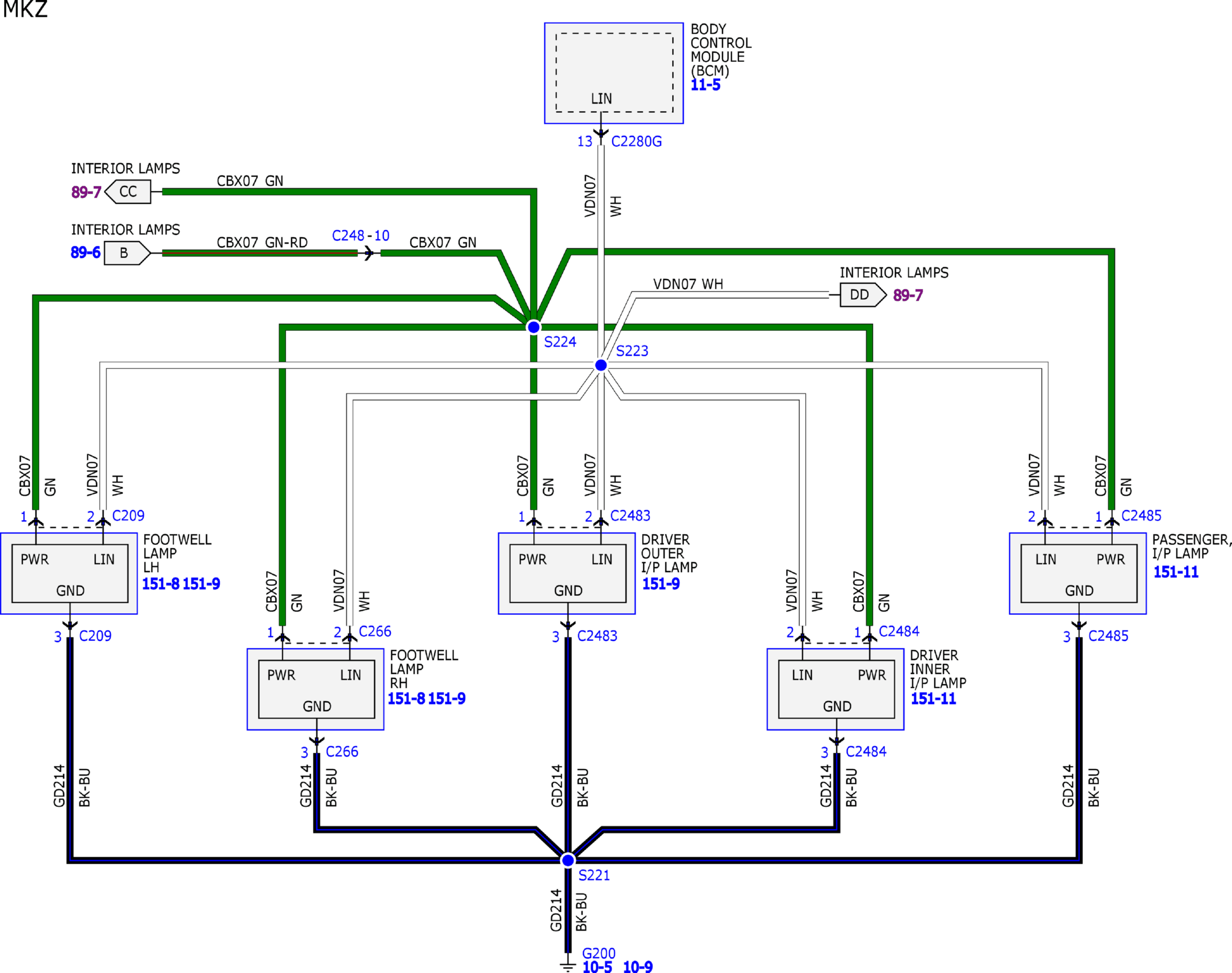

Fig 1: Interior Lamps Wiring Diagram (1 of 11)

Courtesy of FORD MOTOR COMPANY

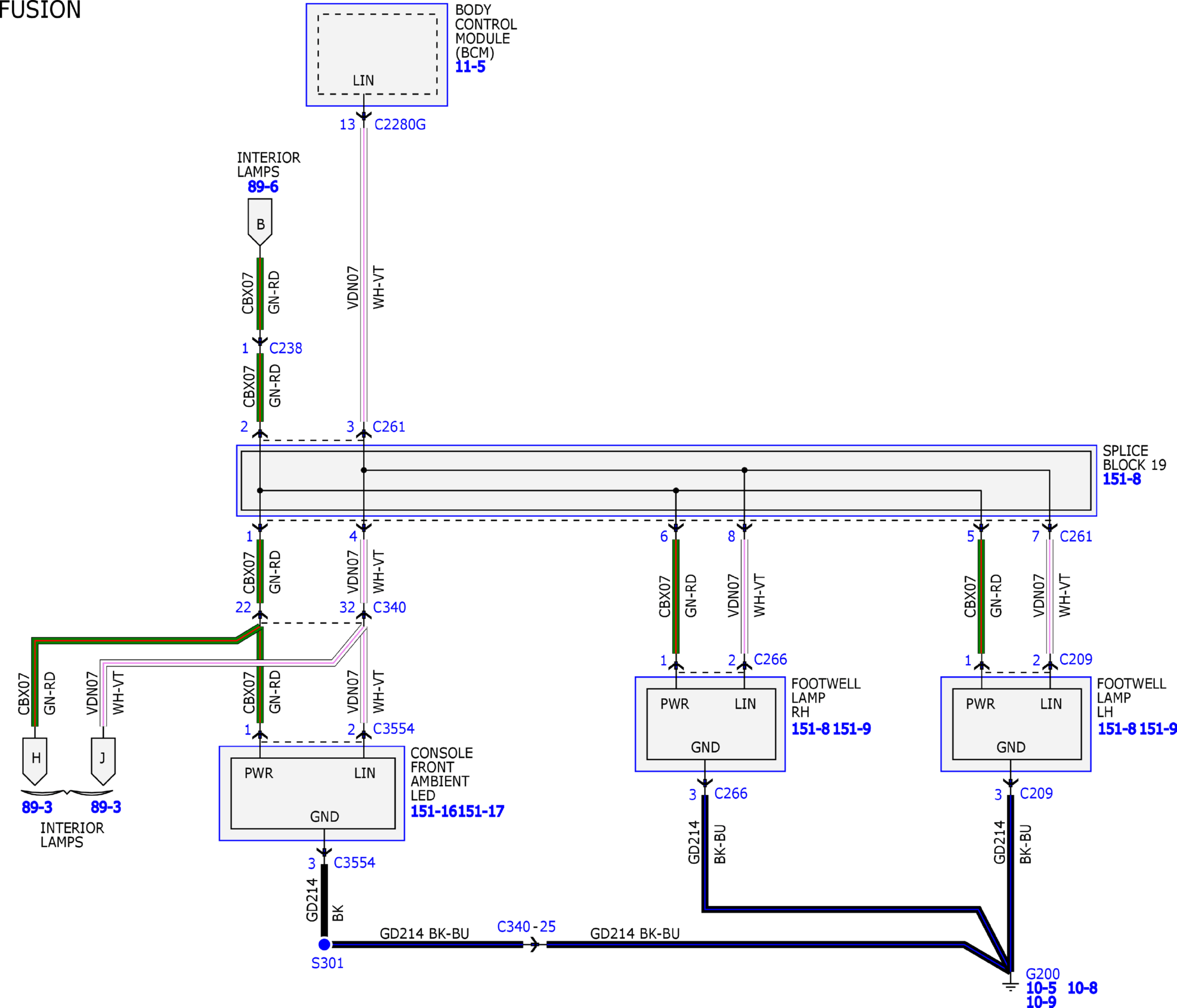

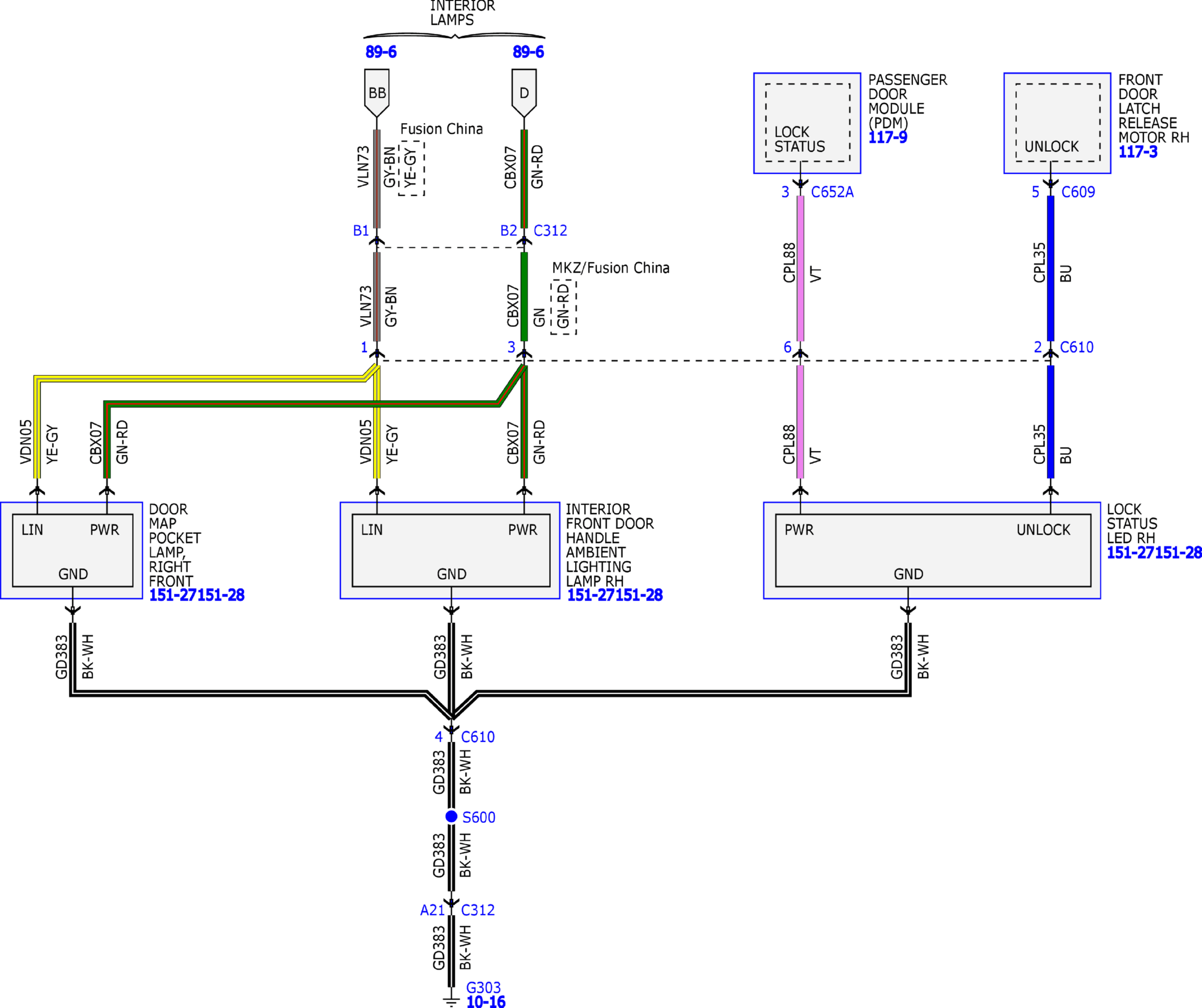

Fig 2: Interior Lamps Wiring Diagram (2 of 11)

Courtesy of FORD MOTOR COMPANY

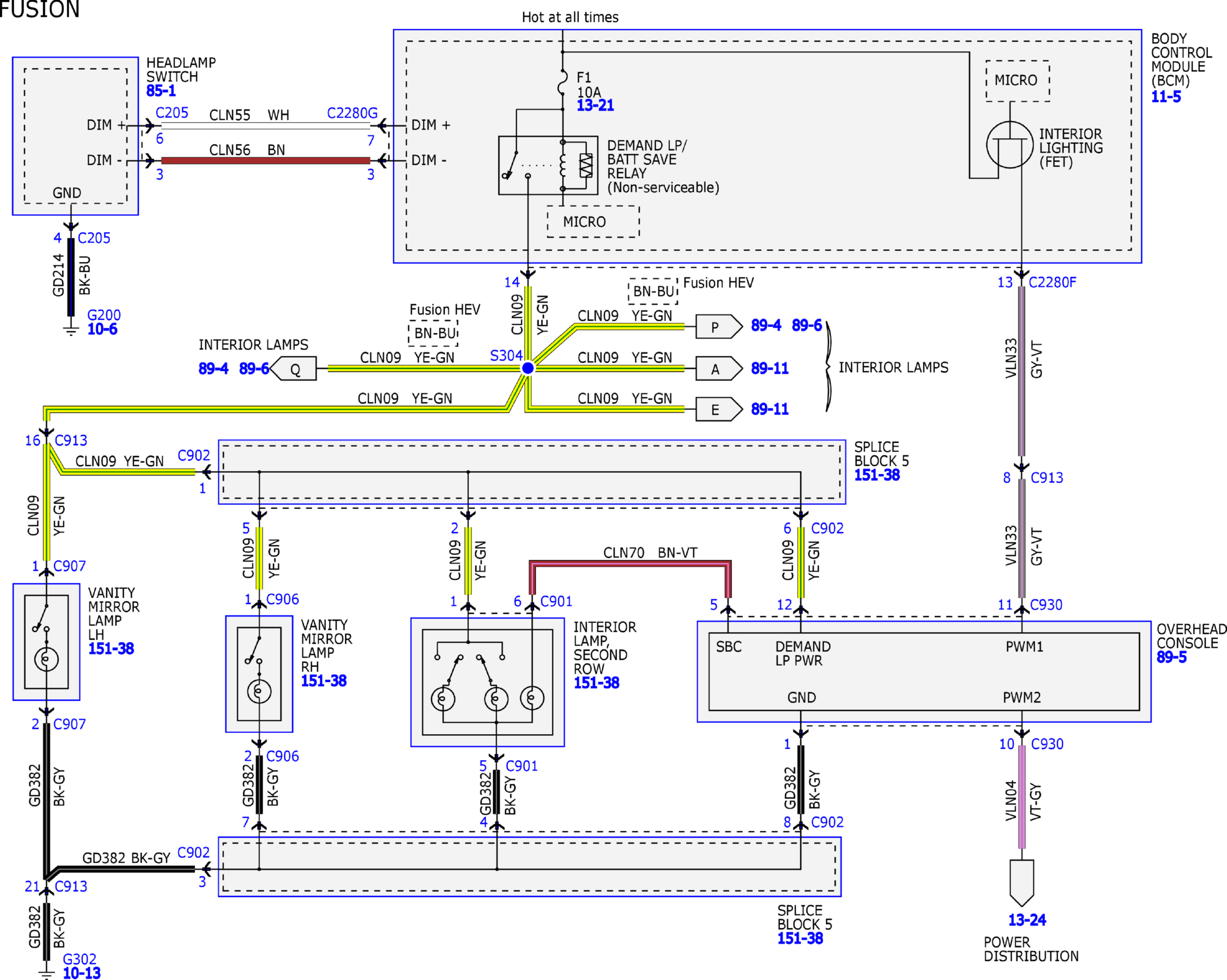

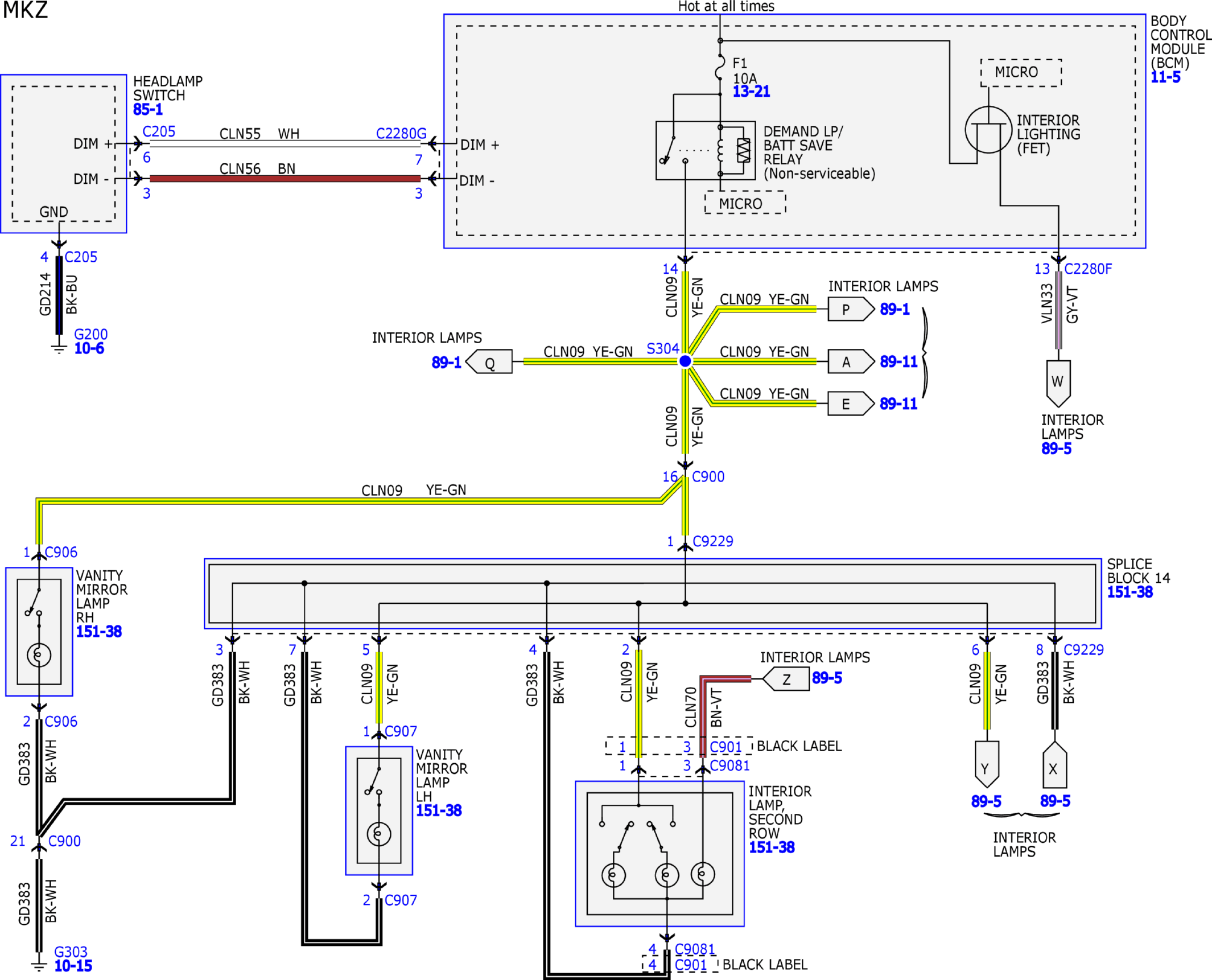

Fig 3: Interior Lamps Wiring Diagram (3 of 11)

Courtesy of FORD MOTOR COMPANY

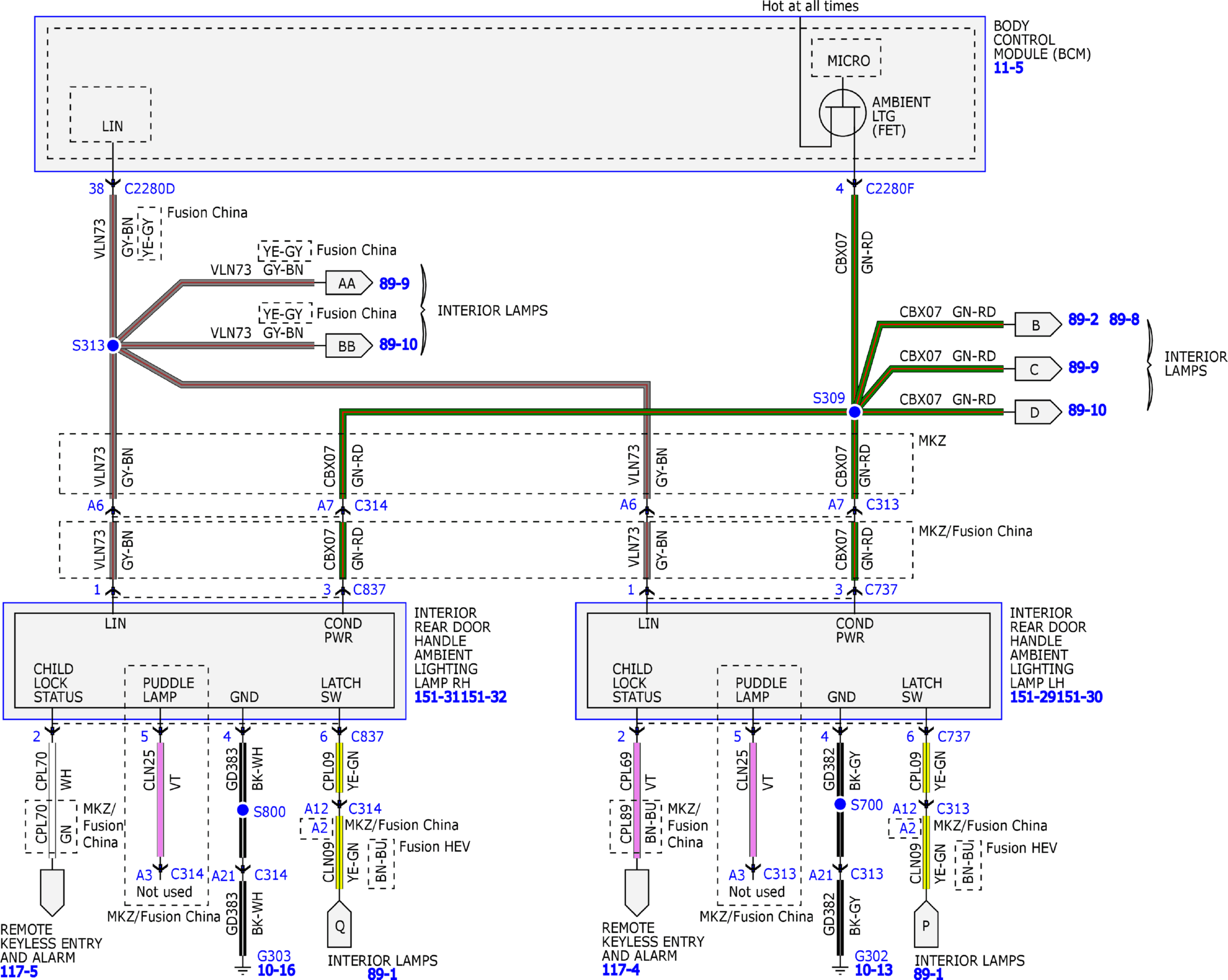

Fig 4: Interior Lamps Wiring Diagram (4 of 11)

Courtesy of FORD MOTOR COMPANY

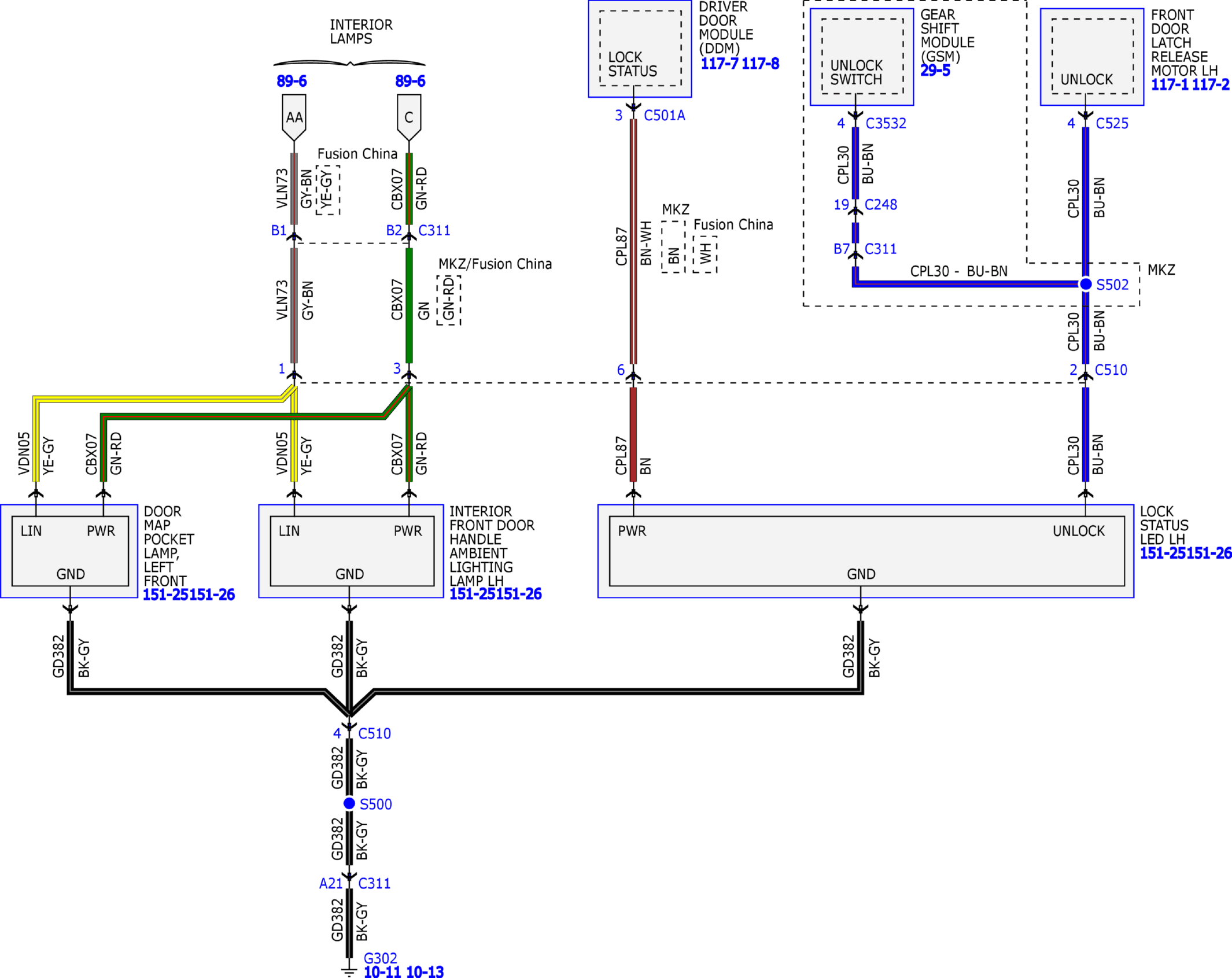

Fig 5: Interior Lamps Wiring Diagram (5 of 11)

Courtesy of FORD MOTOR COMPANY

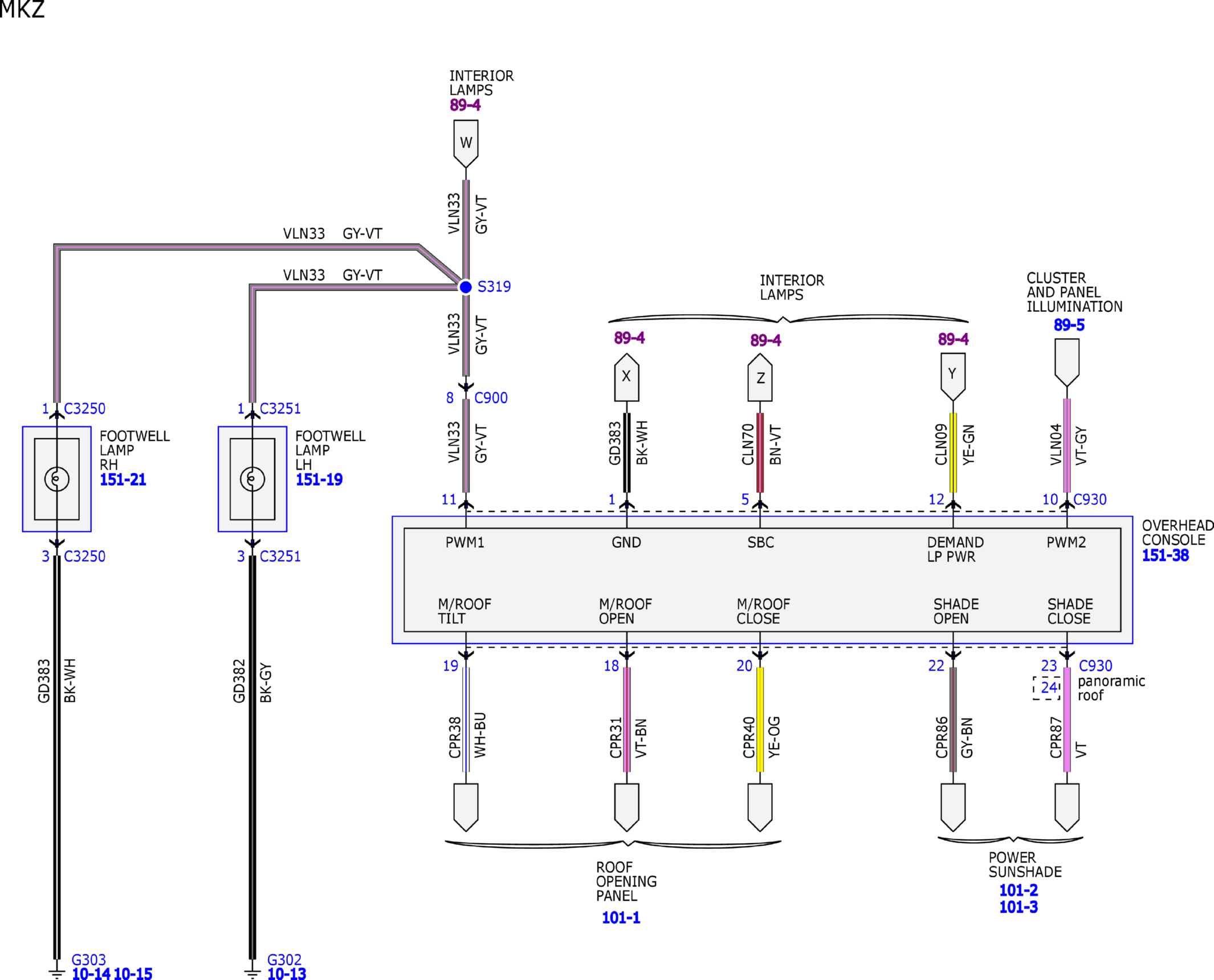

Fig 6: Interior Lamps Wiring Diagram (6 of 11)

Courtesy of FORD MOTOR COMPANY

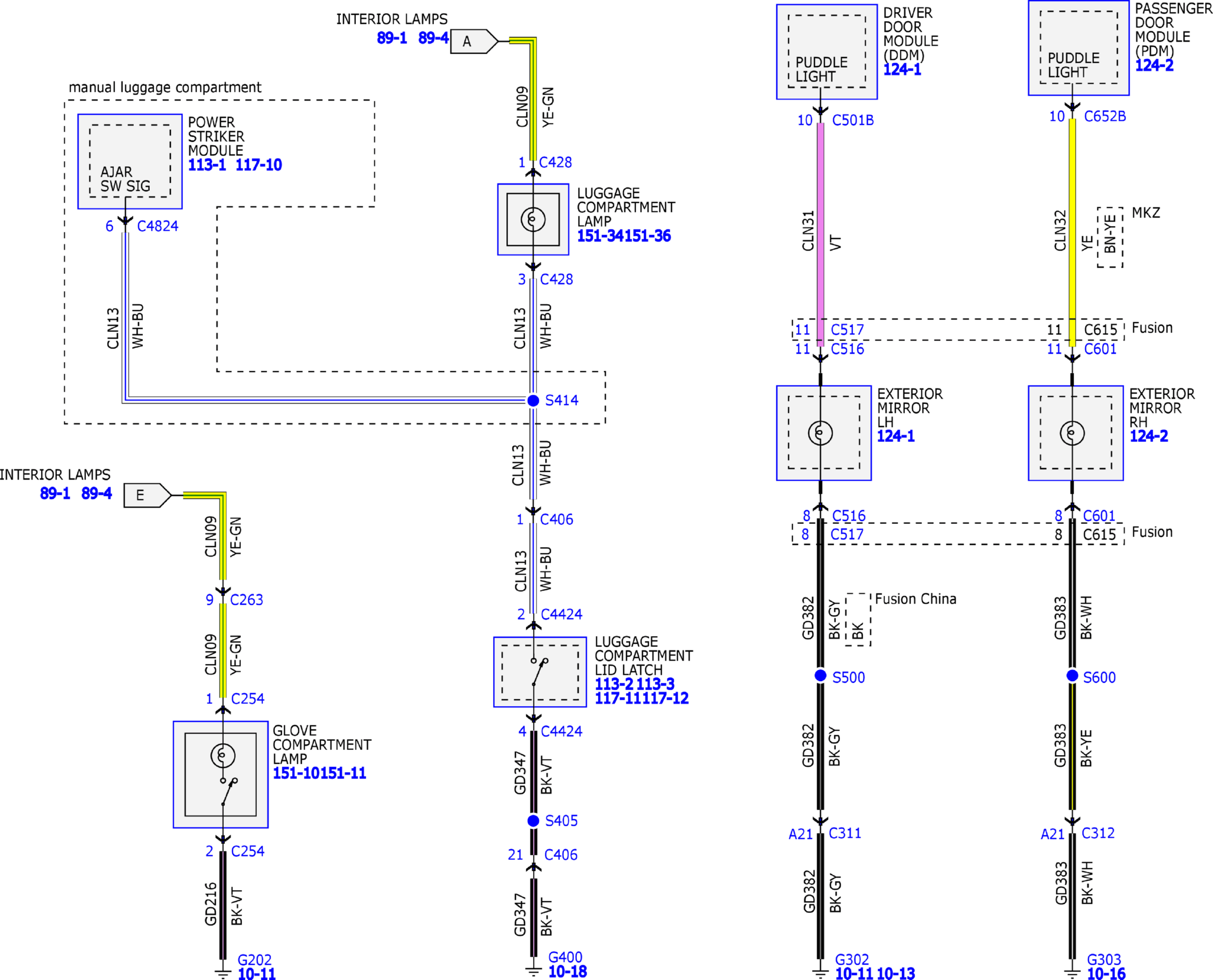

Fig 7: Interior Lamps Wiring Diagram (7 of 11)

Courtesy of FORD MOTOR COMPANY

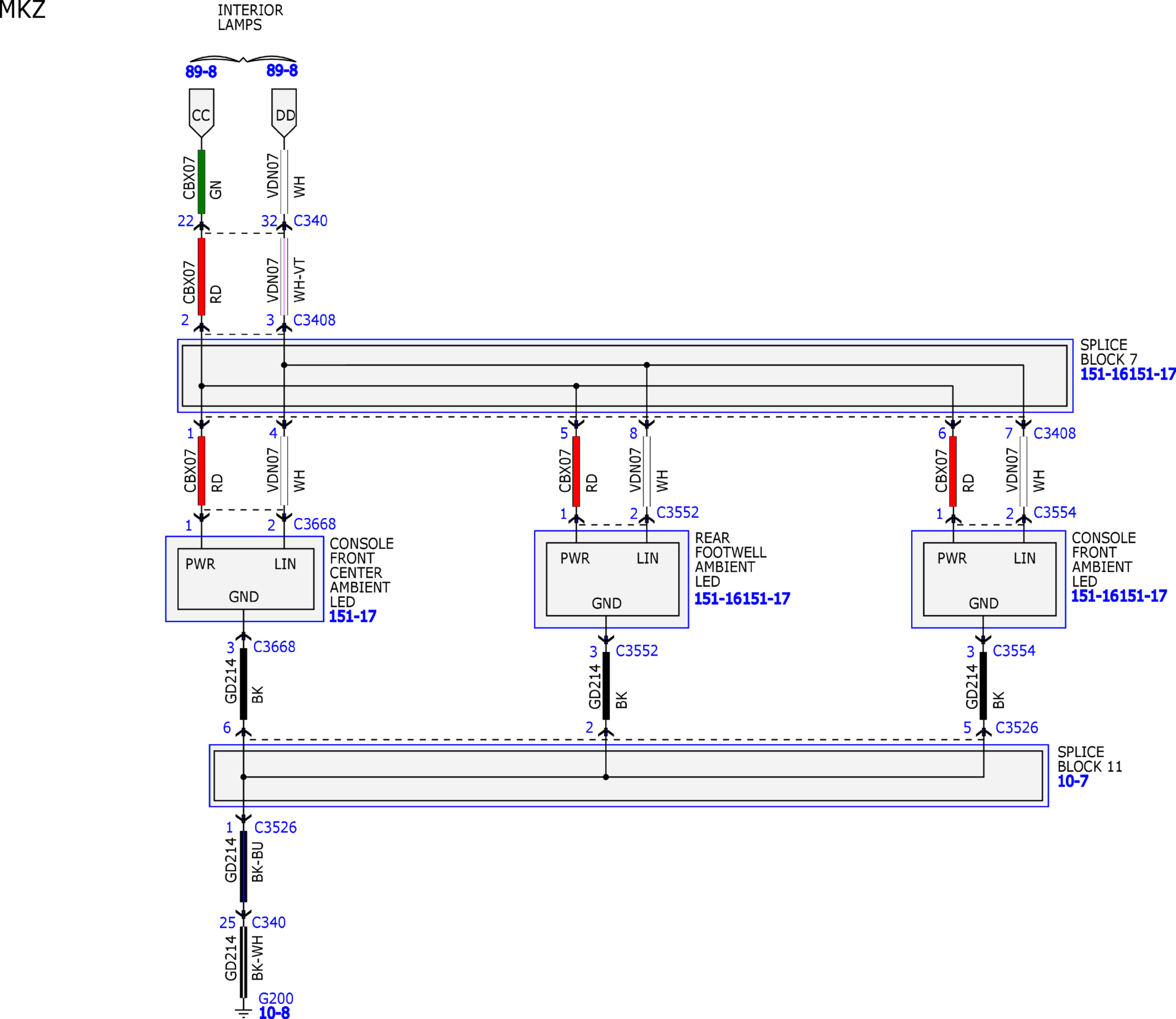

Fig 8: Interior Lamps Wiring Diagram (8 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 9: Interior Lamps Wiring Diagram (9 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 10: Interior Lamps Wiring Diagram (10 of 11)

Courtesy of FORD MOTOR COMPANY

Fig 11: Interior Lamps Wiring Diagram (11 of 11)

Courtesy of FORD MOTOR COMPANY
