Fog Lamps

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

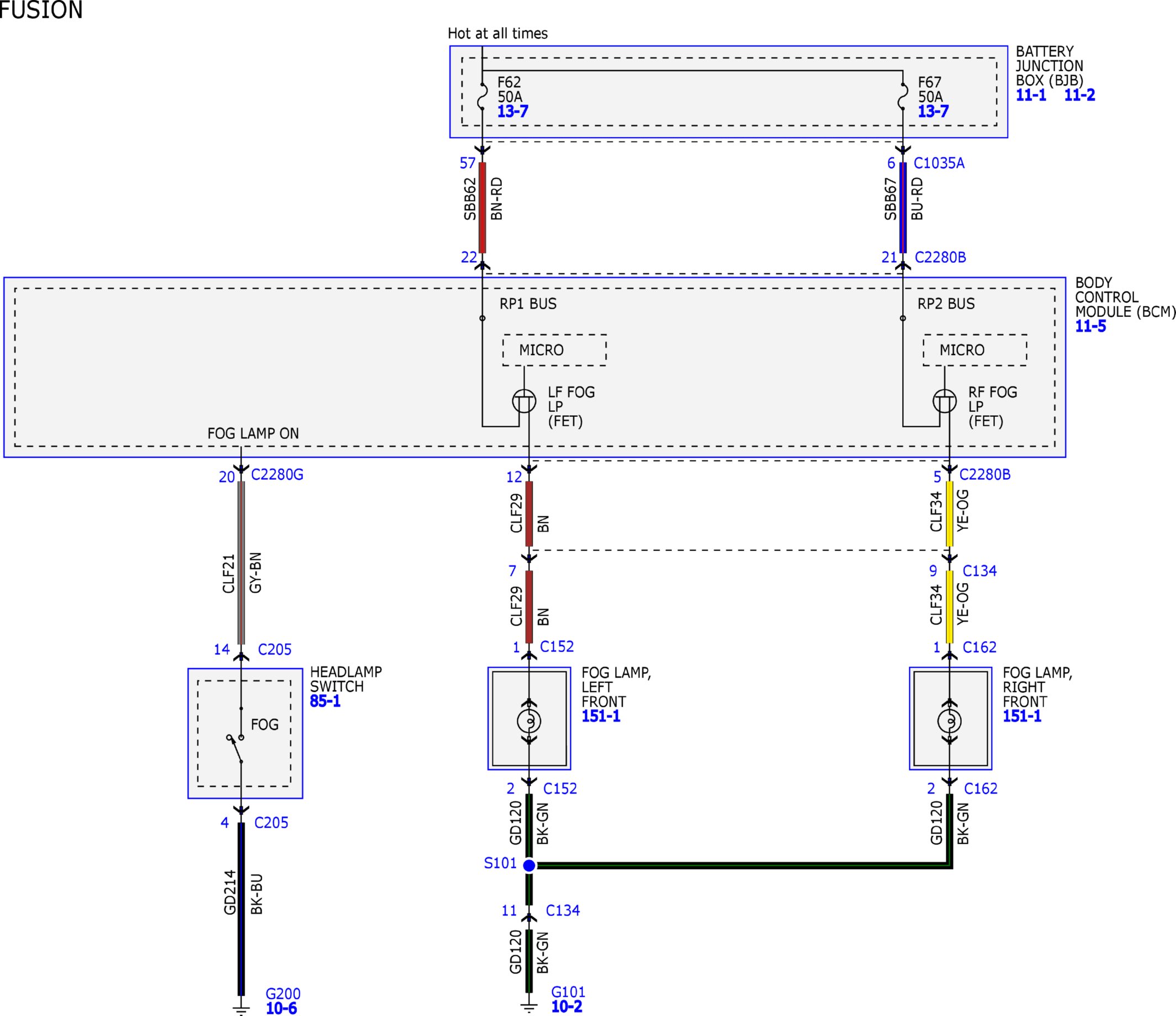

Fig 1: Fog Lamps Wiring Diagram
GFDW28027Courtesy of FORD MOTOR COMPANY
