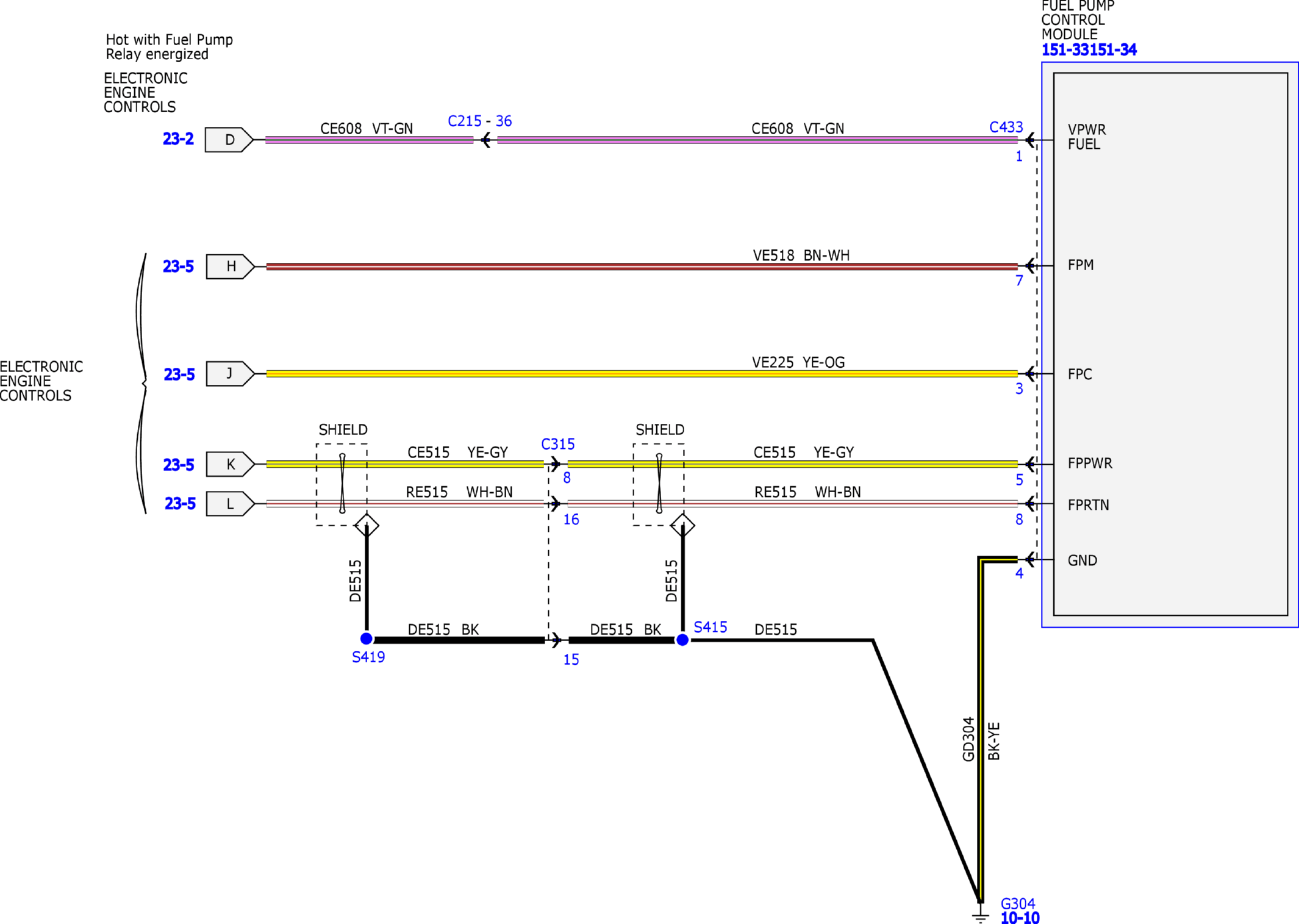

Fig 1: Electronic Engine Controls Wiring Diagram (1 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 2: Electronic Engine Controls Wiring Diagram (2 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 3: Electronic Engine Controls Wiring Diagram (3 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 4: Electronic Engine Controls Wiring Diagram (4 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 5: Electronic Engine Controls Wiring Diagram (5 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 6: Electronic Engine Controls Wiring Diagram (6 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 7: Electronic Engine Controls Wiring Diagram (7 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 8: Electronic Engine Controls Wiring Diagram (8 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 9: Electronic Engine Controls Wiring Diagram (9 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 10: Electronic Engine Controls Wiring Diagram (10 of 11)
Courtesy of FORD MOTOR COMPANY
Fig 11: Electronic Engine Controls Wiring Diagram (11 of 11)
