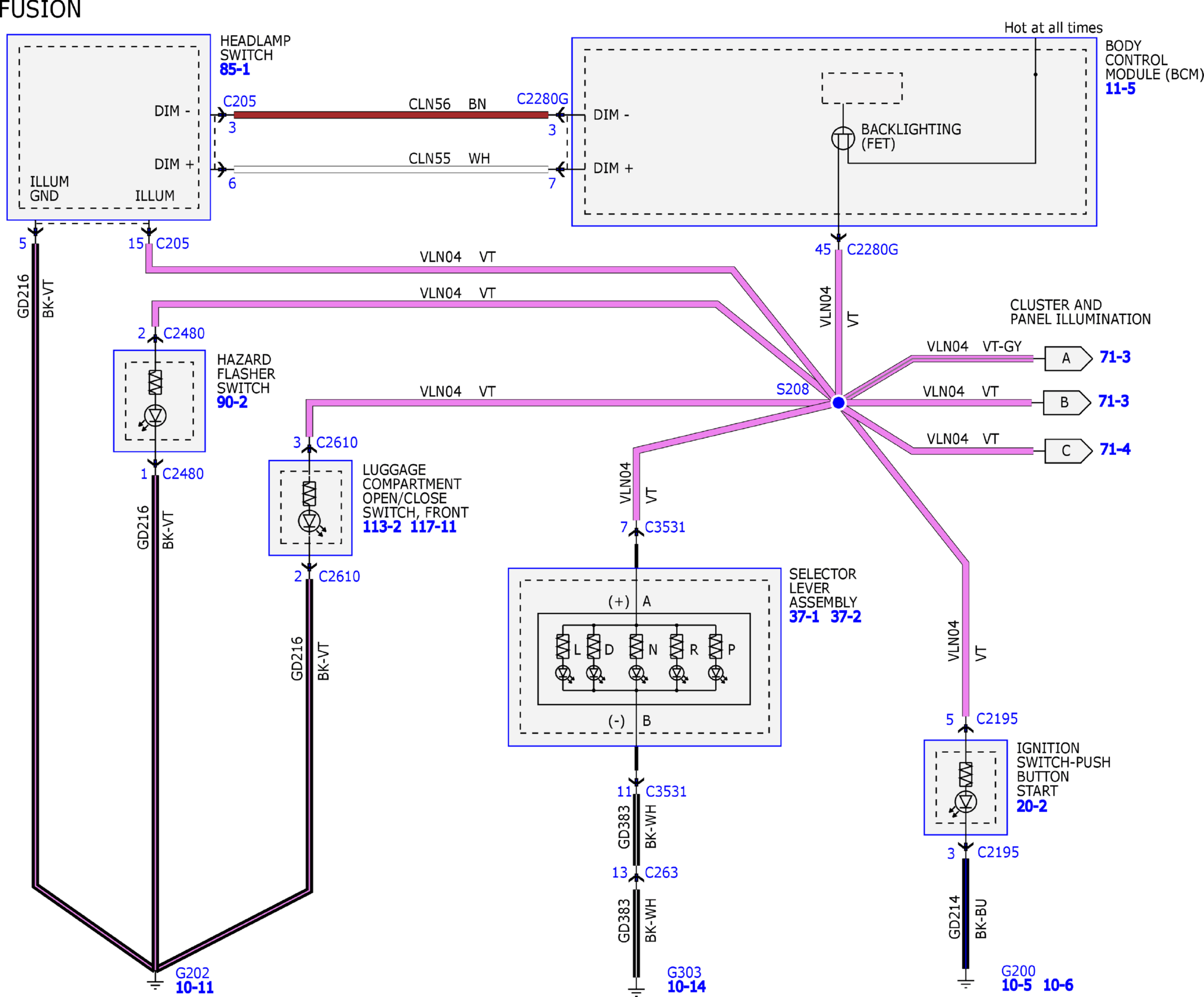

Fig 1: Cluster and Panel Illumination Wiring Diagram (1 of 5)
Courtesy of FORD MOTOR COMPANY

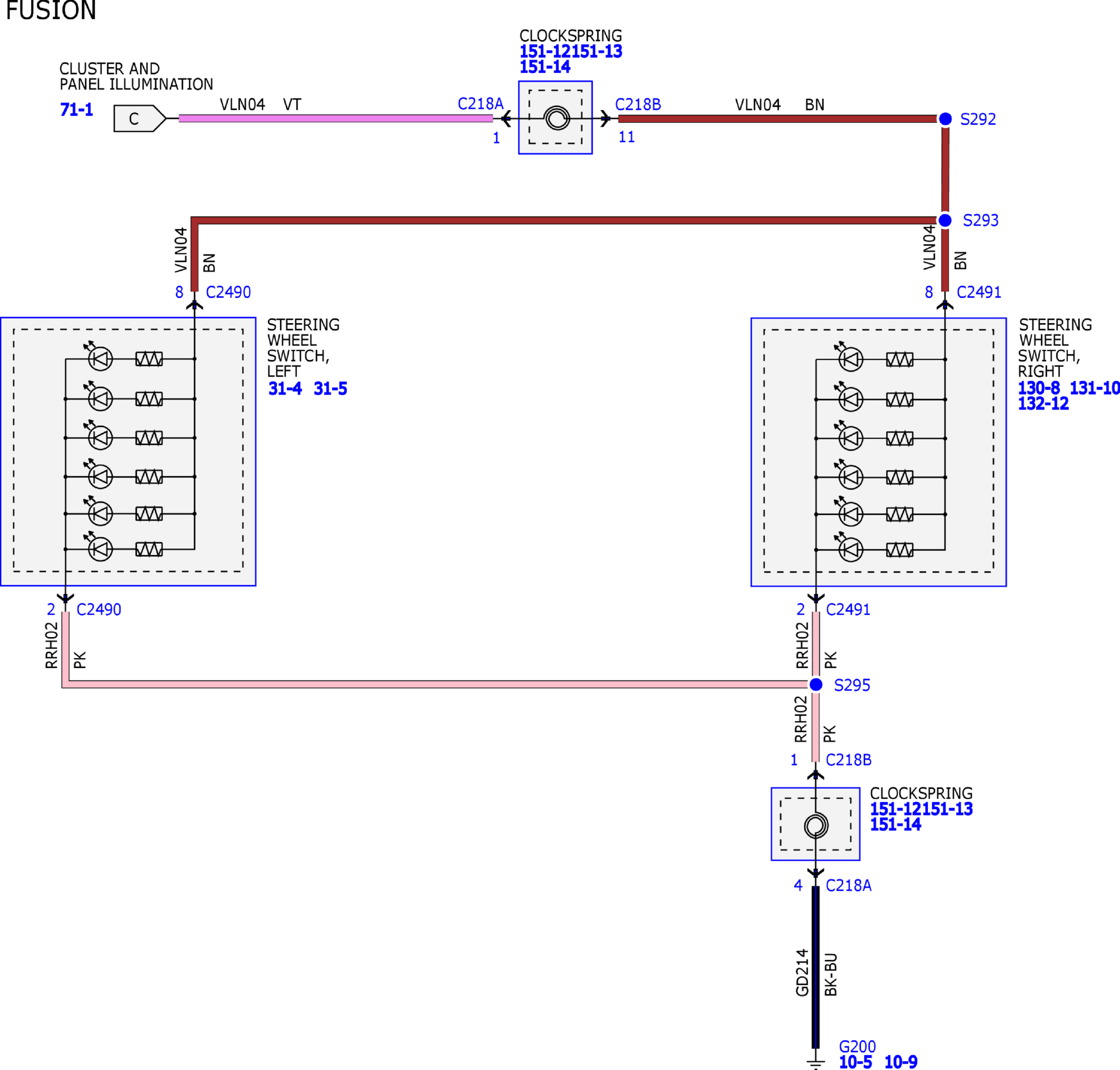

Fig 2: Cluster and Panel Illumination Wiring Diagram (2 of 5)
Courtesy of FORD MOTOR COMPANY

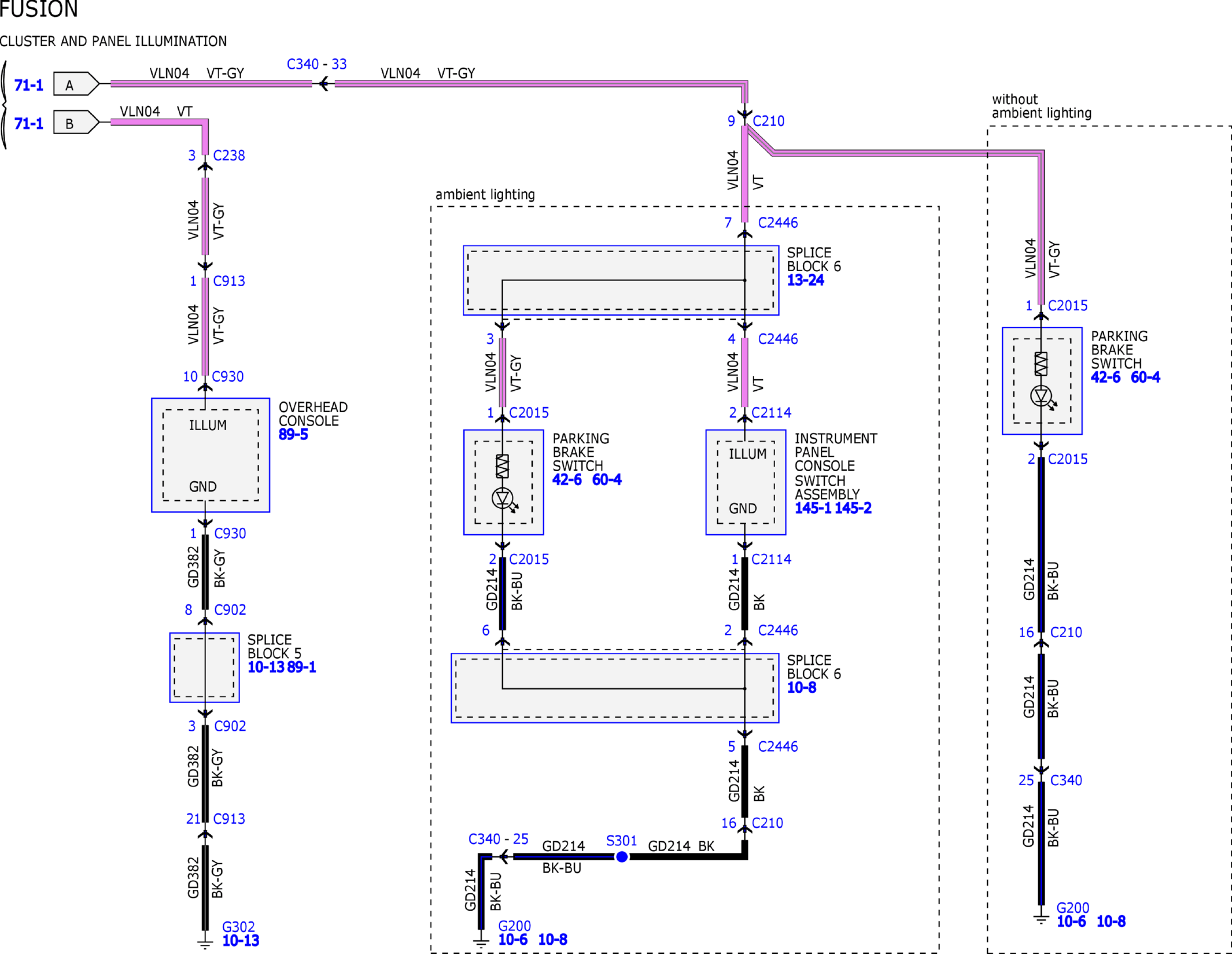

Fig 3: Cluster and Panel Illumination Wiring Diagram (3 of 5)
Courtesy of FORD MOTOR COMPANY

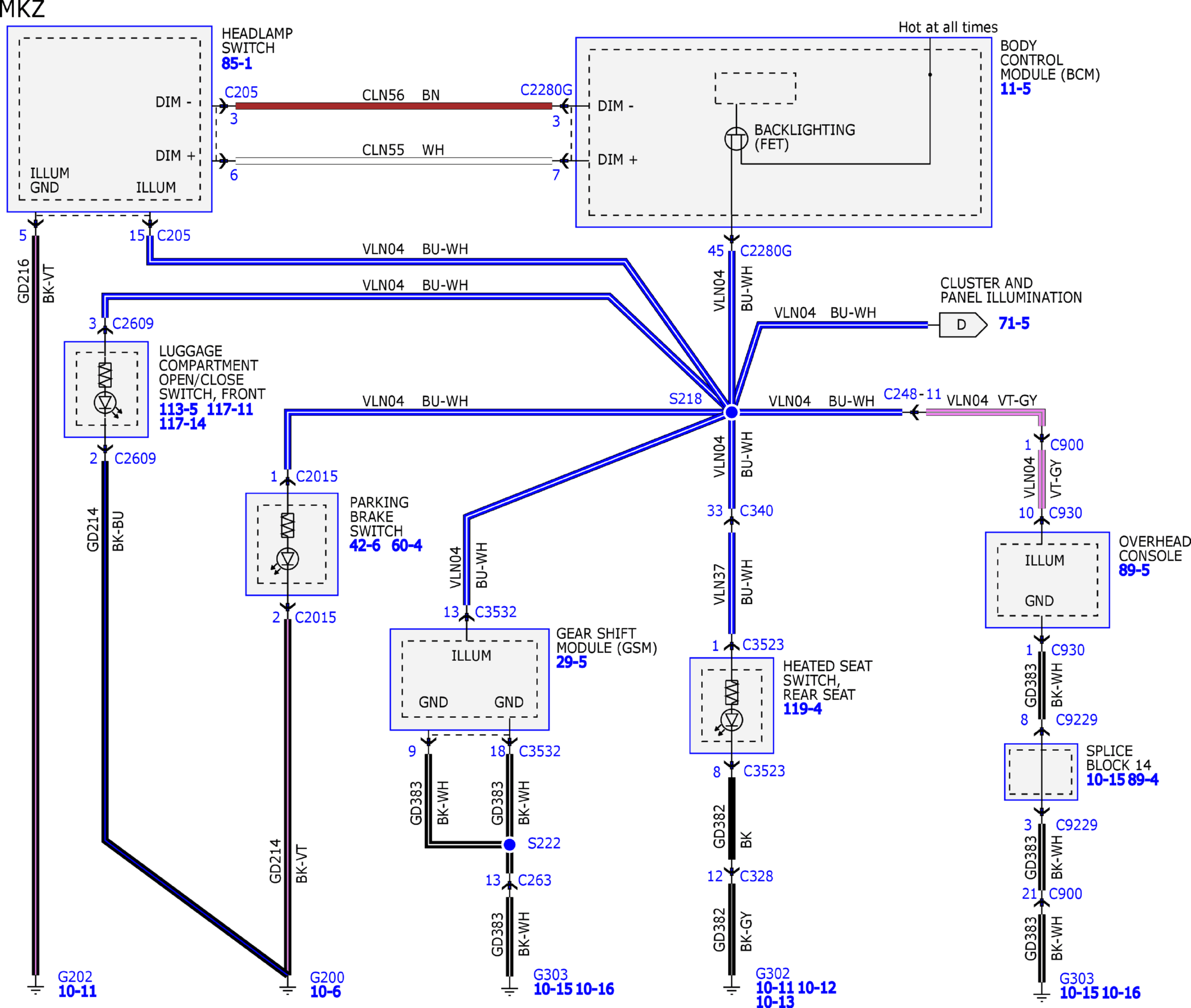

Fig 4: Cluster and Panel Illumination Wiring Diagram (4 of 5)
Courtesy of FORD MOTOR COMPANY

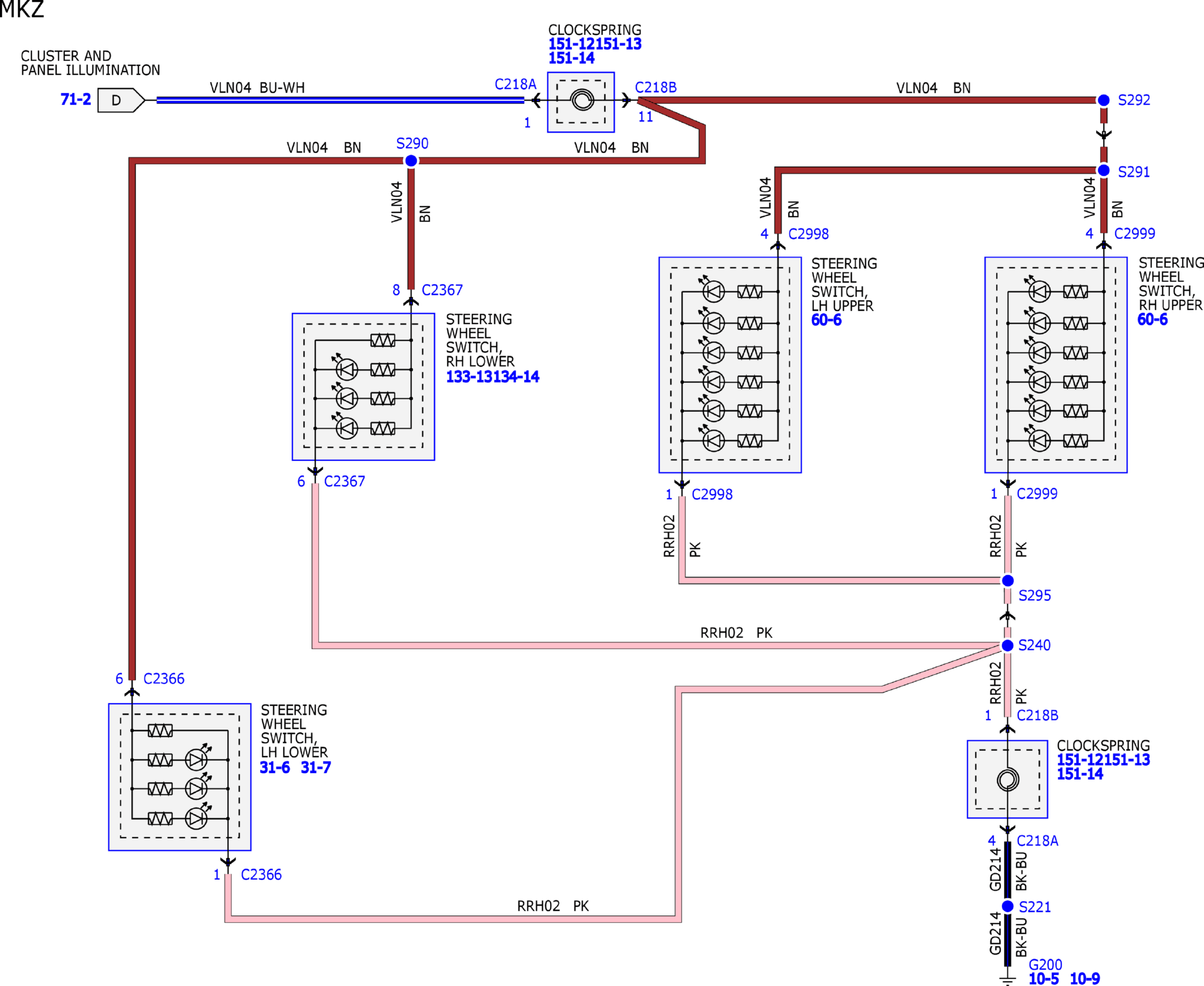

Fig 5: Cluster and Panel Illumination Wiring Diagram (5 of 5)
