Charging System

WARNING: This page is about a different car, the 2015 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

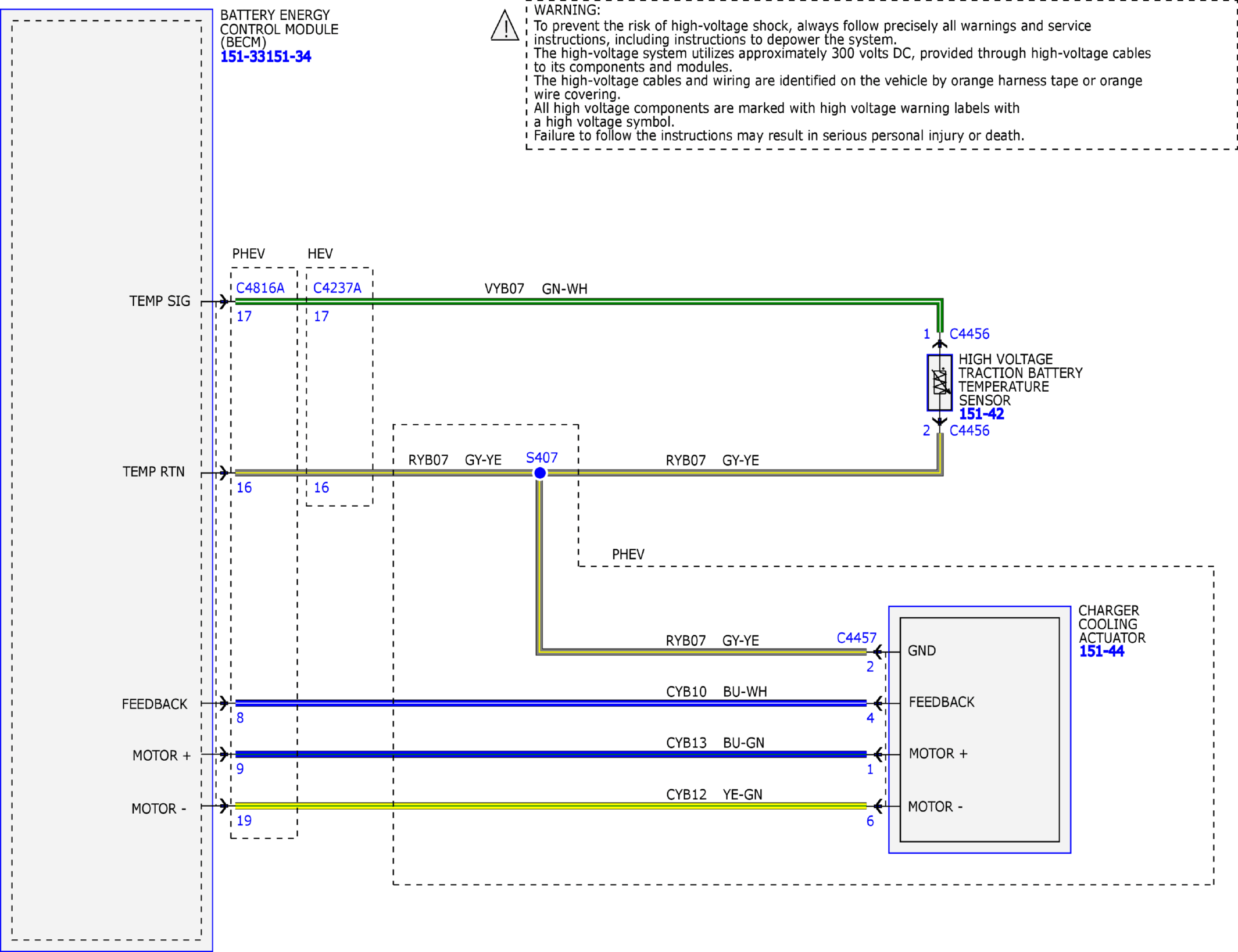

Fig 1: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 2: Charging System Wiring Diagram (2 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 3: Charging System Wiring Diagram (3 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 4: Charging System Wiring Diagram (4 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 5: Charging System Wiring Diagram (5 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 6: Charging System Wiring Diagram (6 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 7: Charging System Wiring Diagram (7 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 8: Charging System Wiring Diagram (8 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Charging System Wiring Diagram (9 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Charging System Wiring Diagram (10 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Charging System Wiring Diagram (11 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Charging System Wiring Diagram (12 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Charging System Wiring Diagram (13 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Charging System Wiring Diagram (14 of 14)

Courtesy of FORD MOTOR COMPANY
