Rear Spoiler: Removal

WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may include installation details.
  1. WARNING: Before beginning any service procedure in this article, REFER to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

    Refer to: HEALTH AND SAFETY PRECAUTIONS .

  2. Refer to: REAR LAMP ASSEMBLY - 4-DOOR .

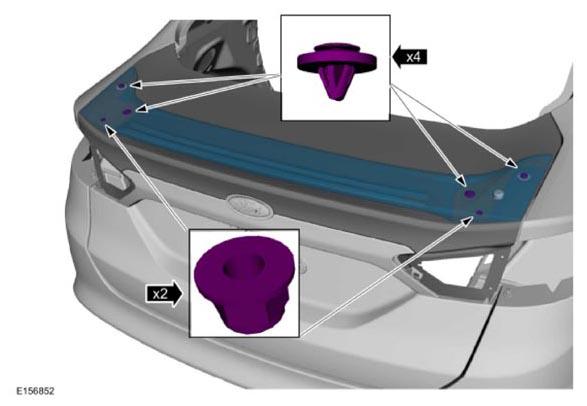

  3. NOTE: Spoiler retainer nuts are accessed through the rear lamp housing in luggage compartment lid.

    Torque:  48 lb.in (5.4 Nm)

    G08634730

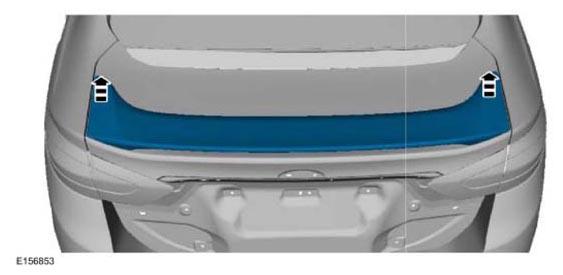

  4. G08634731
