Luggage Compartment Lid Molding: Removal
WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: HEALTH AND SAFETY PRECAUTIONS .
- Refer to: REVERSING LAMP .
-

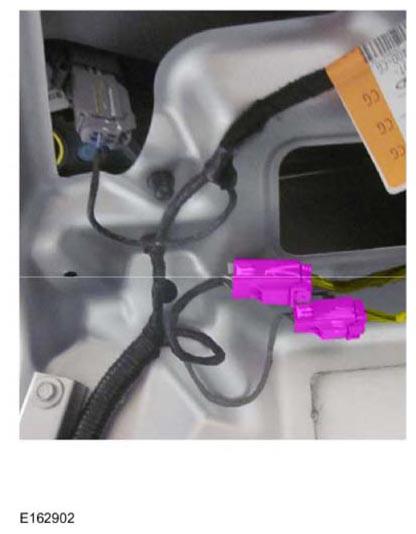

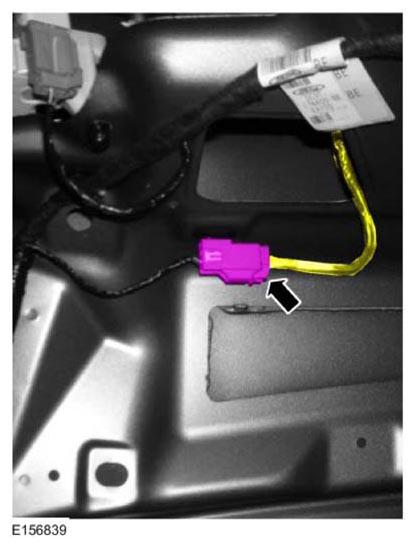

NOTE: If equipped with parking aid camera.
- Torque:
36 lb.in (4.1 Nm)
- Torque:
19 lb.in (2.1 Nm)
