Fuel Tank Filler Pipe: Removal
WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: GASOLINE AND GASOLINE-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
- With the vehicle in NEUTRAL, position it on a hoist.
Refer to: JACKING AND LIFTING - OVERVIEW .
- Disconnect the battery ground cable.
Refer to: BATTERY DISCONNECT AND CONNECT .
- Drain the fuel tank.
Refer to: FUEL TANK DRAINING .
- Remove the rear wheel on the left-hand side.
Refer to: WHEEL AND TIRE .

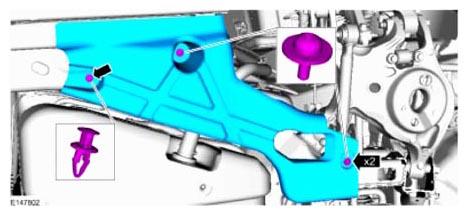

- Refer to: QUICK RELEASE COUPLING
.
Torque : 80 lb.in (9 Nm)
- Torque:
36 lb.in (4.1 Nm)
