Fuel Tank - FWD: Removal
WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation steps.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.
Refer to: GASOLINE AND GASOLINE-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
- With the vehicle in NEUTRAL, position it on a hoist.
Refer to: JACKING AND LIFTING - OVERVIEW .
- Release the fuel system pressure.
Refer to: FUEL SYSTEM PRESSURE RELEASE .
- Drain the fuel tank.
Refer to: FUEL TANK DRAINING .

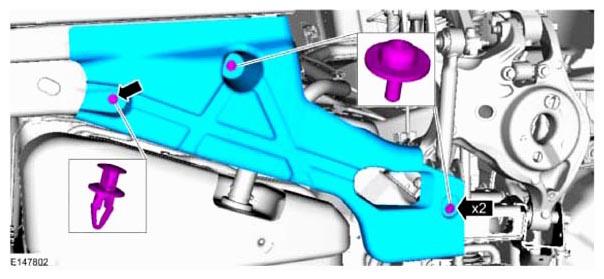

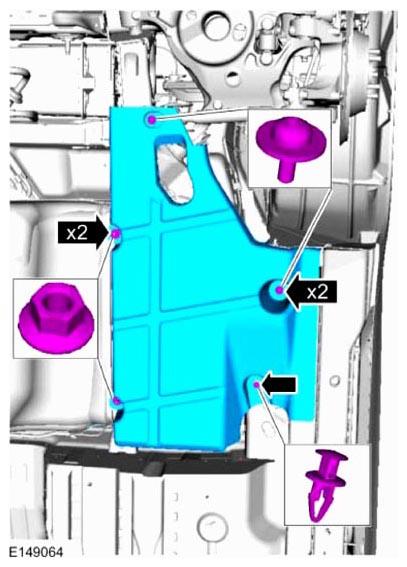

- Remove the exhaust.
Refer to: MUFFLER AND TAILPIPE .
-

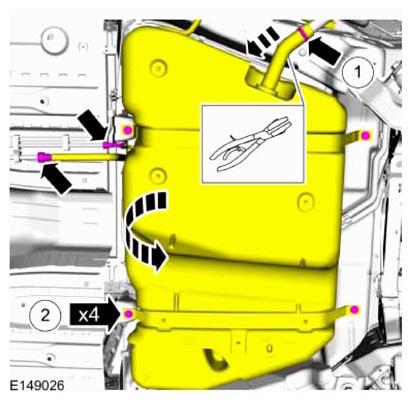

NOTE: Do not remove the hose clamp at the fuel tank filler pipe hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.

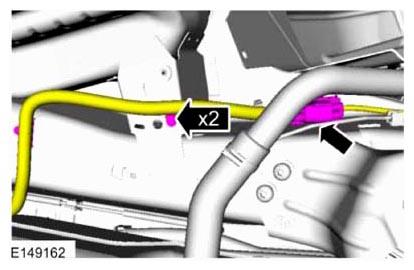

Refer to: SPRING LOCK COUPLINGS .
Refer to: QUICK RELEASE COUPLING .
Use the General Equipment: Powertrain Jack
Use the General Equipment: Hose Clamp(s)
Torque :

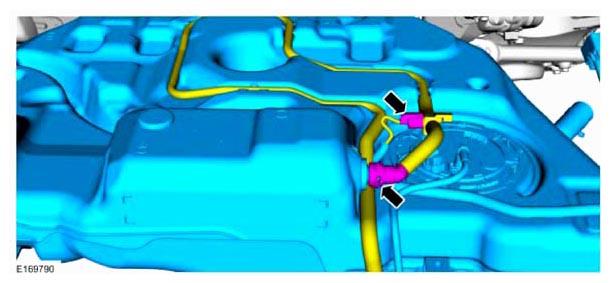

- Lower the fuel tank far enough to disconnect the electrical connector and vapor lines. Remove the fuel tank.
Refer to: QUICK RELEASE COUPLING .
Use the General Equipment: Powertrain Jack
