Fuel Lines - 2.0L: Removal

WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: GASOLINE AND GASOLINE-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
Remove the Fuel Tank.
Refer to: FUEL TANK - FWD .

Refer to: FUEL TANK - AWD .

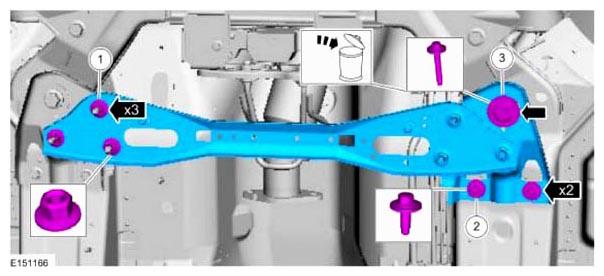

Torque: 133 lb.in (15 Nm)
1. Torque: 33 lb.ft (45 Nm)
2. Torque: 44 lb.ft (60 Nm)
3. Discard the specified component. Follow local disposal regulations.
  Torque :

  Stage 1: 76 lb.ft (103 Nm)

  Stage 2: 270°

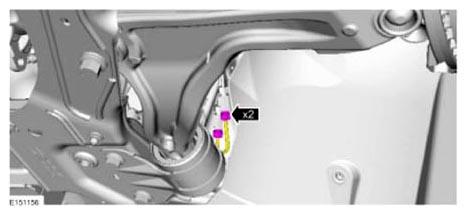

Torque: 133 lb.in (15 Nm)
Remove the Air Cleaner.
Refer to: AIR CLEANER .

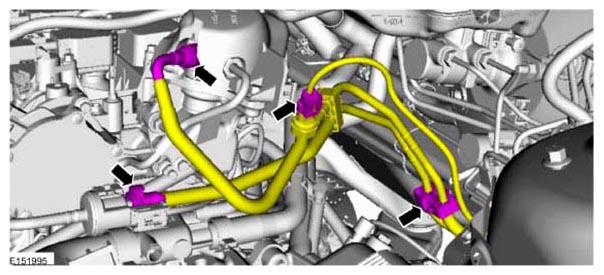

NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.
