Azimuth System Check: Check

WARNING: This page is about a different car, the 2014 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn the ignition ON, engine OFF.

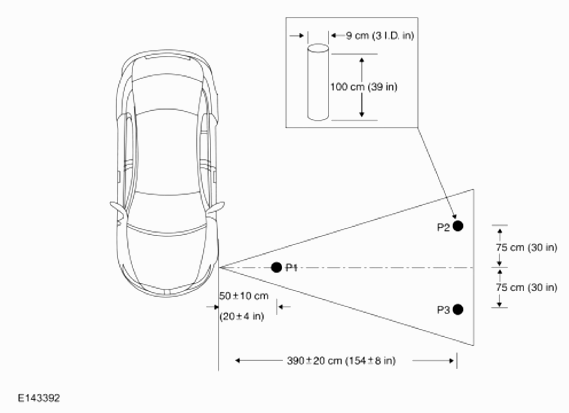

    Fig 1: Identifying Azimuth System Dimensions
    G08056399Courtesy of FORD MOTOR CO.
  2. Set the parking brake on.
  3. Place the gearshift in DRIVE (D).
  4. Verify the parking aid system detects the specified object when placed within the 3 specified locations (P1, P2, P3) and record the distances.
  5. Confirm the recorded distances are within the specification ranges.
  6. If the active park assist system does not detect the object,

    Refer to: PARKING AID .
