Section 1814 (Supplemental Restraint System (Hybrid/ENERGI) - Description And Operation, Diagnosis And Testing, DTC & Symptom Charts)
>>
Description And Operation
>>
Airbag and Seatbelt Pretensioner Supplemental Restraint System (SRS) - System Operation and Component Description
>>
System Operation
>>

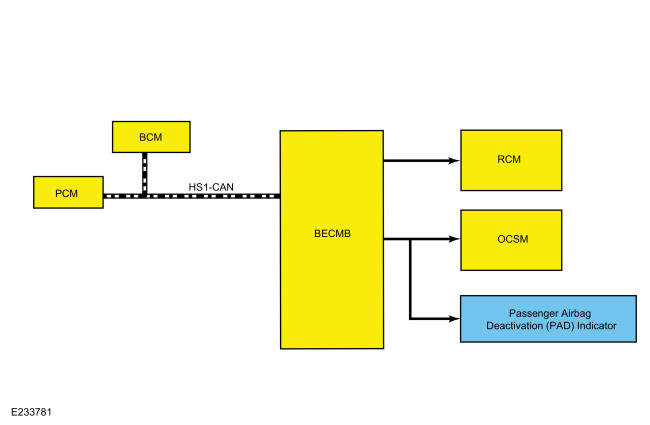

System Diagram - Extended Power Module [BECMB]
System Diagram - Extended Power Module [BECMB]
WARNING:
This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR COMPANY
