Connector End View (C925) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C925
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness PIA
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | * (BK) | * | PIA |
| 1 | SBB72 (VT-RD) | 10 | 14A005 |
| 2 | * (BK) | * | PIA |
| 2 | CPR31 (VT-BN) | 22 | 14A005 |
| 3 | * (BK) | * | PIA |
| 3 | CPR38 (WH-BU) | 22 | 14A005 |
| 4 | * (BK) | * | PIA |
| 4 | CPR40 (YE-OG) | 22 | 14A005 |
| 5 | * (BK) | * | PIA |
| 5 | VMC05 (VT-OG) | 22 | 14A005 |
| 6 | * (BK) | * | PIA |
| 6 | CBP23 (BN-YE) | 20 | 14A005 |
| 7 | * (BK) | * | PIA |
| 7 | GD383 (BK-WH) | 12 | 14A005 |
| 8 | * (BK) | * | PIA |
| 8 | SBB85 (GY-RD) | 10 | 14A005 |
| 9 | * | * | |
| 10 | * (BK) | * | PIA |
| 10 | CPW01 (BN-BU) | 22 | 14A005 |
| 11 | * (BK) | * | PIA |
| 11 | CPR86 (GY-BN) | 22 | 14A005 |
| 12 | * (BK) | * | PIA |
| 12 | CLS28 (BU-WH) | 20 | 14A005 |
| 13 | * (BK) | * | PIA |
| 13 | CPR87 (VT) | 22 | 14A005 |
| 14 | * (BK) | * | PIA |
| 14 | GD383 (BK-WH) | 12 | 14A005 |

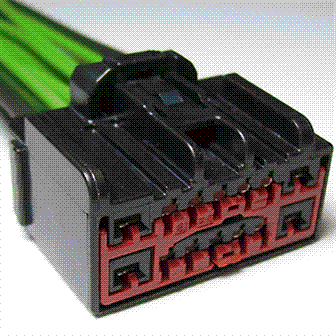

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1140 |
Service Part Number: 3U2Z-14S411-ZZB Gauge: 12 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses: Module - Anti-theft Module - Auto Lamps Module - Power Moonroof Module - Sunshade |
