Connector End View (C922) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C922
Description
INLINE
Color
Base Part #
Service Pigtail
See Below

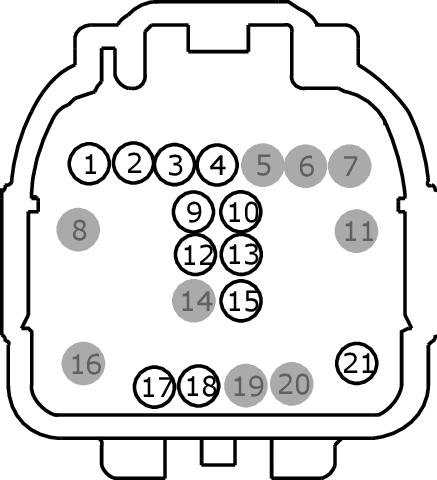

MALE
Harness 14A005

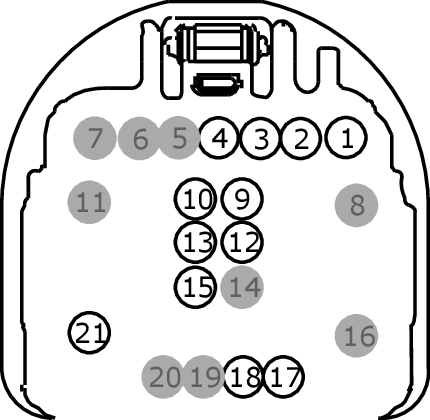

FEMALE
Harness 17C712
| Pin | Circuit | Gauge | Qualifier |
| 1 | CRD19 (VT-WH) | 22 | |
| 2 | RR19 (VT-WH) | 22 | 17C712 |
| 2 | RRD19 (BN-VT) | 22 | 14A005 |
| 2 | RRD19 (VT-WH) | 22 | 17C712 |
| 3 | VME99 (VT) | 26 | 17C712 |
| 3 | VME99 (VT-OG) | 22 | 14A005 |
| 4 | RME99 (YE) | 26 | 17C712 |
| 4 | RME99 (YE-GY) | 22 | 14A005 |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | * | * | |
| 9 | CPR86 (GY-BN) | 22 | |
| 10 | CPR31 (VT-BN) | 22 | |
| 11 | * | * | |
| 12 | CPR87 (VT) | 20 | 14A005 |
| 12 | CPR87 (VT) | 22 | |
| 13 | CPR38 (WH-BU) | 22 | |
| 14 | * | * | |
| 15 | CPR40 (YE-OG) | 22 | |
| 16 | * | * | |
| 17 | VDB25 (GN) | 26 | 14A005 |
| 17 | VDB25 (GN-OG) | 22 | 17C712 |
| 18 | VDB26 (GY) | 26 | 14A005 |
| 18 | VDB26 (GY-BU) | 22 | 17C712 |
| 19 | * | * | |
| 20 | * | * | |
| 21 | GD383 (BK-WH) | 20 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1463 |
Service Part Number: GU2Z-14S411-GA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
| Pigtail Kit Part Number WPT-1482 |
Service Part Number: GU2Z-14S411-GB Gauge: 14 16 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
