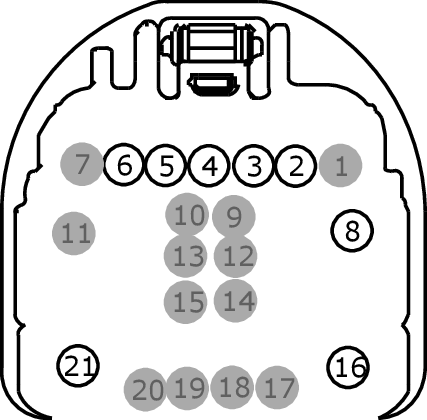

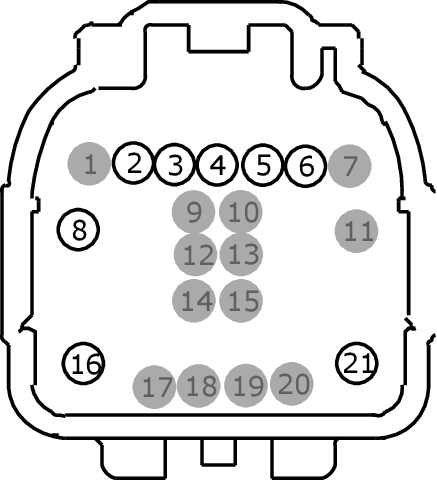

Connector End View (C919) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C919
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 14A005
FEMALE
Harness 15C670
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | CPR40 (OG) | 26 | 14A005 |
| 2 | CPR40 (YE) | 26 | 14A005 |
| 2 | CPR40 (YE-OG) | 22 | |
| 3 | CPW01 (BN) | 22 | 14A005 |
| 3 | CPW01 (BN-BU) | 22 | 14A005 |
| 3 | CPW01 (BN-BU) | 22 | |
| 4 | CPR38 (BU) | 26 | 14A005 |
| 4 | CPR38 (WH) | 26 | 14A005 |
| 4 | CPR38 (WH-BU) | 22 | |
| 5 | CPR31 (VT) | 26 | 14A005 |
| 5 | CPR31 (VT-BN) | 22 | |
| 5 | CPR31 (VT-WH) | 26 | 14A005 |
| 6 | VMC05 (OG) | 26 | 14A005 |
| 6 | VMC05 (VT-OG) | 22 | |
| 7 | * | * | |
| 8 | CBP23 (BN-YE) | 20 | 14A005 |
| 8 | CBP23 (BN-YE) | 22 | |
| 9 | * | * | |
| 10 | * | * | |
| 11 | * | * | |
| 12 | * | * | |
| 13 | * | * | |
| 14 | * | * | |
| 15 | * | * | |
| 16 | SBP27 (BU-RD) | 10 | 15C670 |
| 16 | SBP27 (BU-RD) | 12 | 14A005 |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | * | * | |
| 21 | GD382 (BK-GY) | 10 | 15C670 |
| 21 | GD383 (BK-WH) | 12 | 14A005 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1425 |
Service Part Number: FU2Z-14S411-RA Gauge: 14 16 20 Pin material: Tin & Silver Cavities: 21 Vehicle Uses: Connector - Inline |
