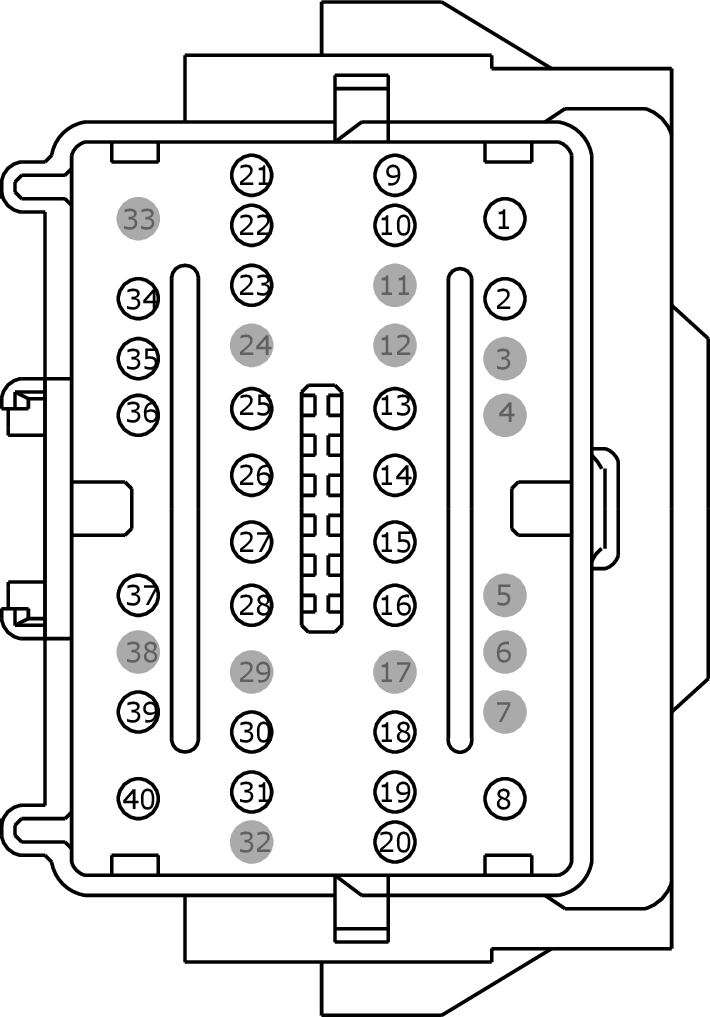

Connector End View (C1010) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C1010
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 12A581
| Pin | Circuit | Gauge | Qualifier |
| 1 | VE922 (VT-GN) | 20 | |
| 1 | VE922 (VT-GN) | 22 | 14A005 |
| 1 | VE922 (VT-GN) | 4 | 14A005 |
| 2 | SBB70 (BN-RD) | 10 | 14A005 |
| 2 | SBB70 (BN-RD) | 12 | |
| 3 | * | * | 12A581 |
| 3 | SBB77 (GY-RD) | 10 | 14A005 |
| 4 | * | * | |
| 5 | * | * | |
| 6 | * | * | |
| 7 | * | * | |
| 8 | CBK02 (GN) | 18 | |
| 8 | CBK02 (GN) | 18 | 14A005 |
| 8 | CBK02 (GN) | 20 | 14A005 |
| 9 | CCD04 (GY-YE) | 18 | |
| 10 | RCD04 (BU-OG) | 18 | |
| 11 | * | * | |
| 12 | * | * | |
| 13 | VCA06 (WH-OG) | 20 | |
| 14 | RCA20 (BN) | 20 | |
| 15 | CE229 (BU-GN) | 20 | 14A005 |
| 15 | CE229 (VT-OG) | 20 | |
| 16 | CE420 (BN-BU) | 20 | 14A005 |
| 16 | CE420 (GN-VT) | 20 | 14A005 |
| 16 | CE420 (GY-VT) | 18 | 12A581 |
| 16 | CE420 (GY-VT) | 20 | 14A005 |
| 17 | * | * | |
| 18 | VE225 (YE-OG) | 20 | 12A581 |
| 18 | VE225 (YE-OG) | 22 | 14A005 |
| 19 | VE518 (BN-WH) | 20 | 12A581 |
| 19 | VE518 (BN-WH) | 22 | 14A005 |
| 20 | VE934 (GY-BN) | 20 | |
| 21 | CE347 (BU-GN) | 20 | |
| 21 | CE347 (VT-OG) | 20 | 14A005 |
| 22 | LE230 (BN-BU) | 20 | |
| 22 | LE230 (BN-BU) | 20 | 14A005 |
| 22 | LE230 (BN-BU) | 22 | 14A005 |
| 22 | LE230 (BN-BU) | 4 | 14A005 |
| 22 | LE230 (BN-BU) | 4 | 14A005 |
| 23 | CE204 (WH-BU) | 20 | 14A005 |
| 23 | CE204 (WH-BU) | 22 | |
| 24 | * | * | |
| 25 | CRD19 (VT-WH) | 20 | 12A581 |
| 25 | CRD19 (VT-WH) | 22 | 14A005 |
| 26 | RRD19 (BN-VT) | 20 | 12A581 |
| 26 | RRD19 (BN-VT) | 22 | 14A005 |
| 27 | LE424 (YE-GN) | 20 | 12A581 |
| 27 | LE424 (YE-GN) | 22 | 14A005 |
| 28 | RE407 (YE-VT) | 20 | |
| 28 | RE407 (YE-VT) | 22 | 14A005 |
| 29 | * | * | |
| 30 | CRW13 (GN) | 18 | |
| 30 | CRW13 (GN) | 20 | 14A005 |
| 31 | SBB18 (BN-RD) | 20 | 12A581 |
| 31 | SBP14 (BN-RD) | 20 | 14A005 |
| 32 | * | * | |
| 33 | * | * | |
| 34 | CCB18 (YE-GY) | 12 | |
| 35 | CCB19 (GN-BN) | 12 | |
| 36 | ZA173 (OG) | 18 | |
| 37 | CBK02 (GN) | 18 | |
| 38 | * | * | |
| 39 | RE259 (BU) | 20 | |
| 40 | RE230 (WH) | 22 | 14A005 |
| 40 | RE230 (WH-VT) | 20 | 12A581 |
| 40 | RE230 (WH-VT) | 4 | 14A005 |
| 40 | RE407 (YE-VT) | 20 | 14A005 |
