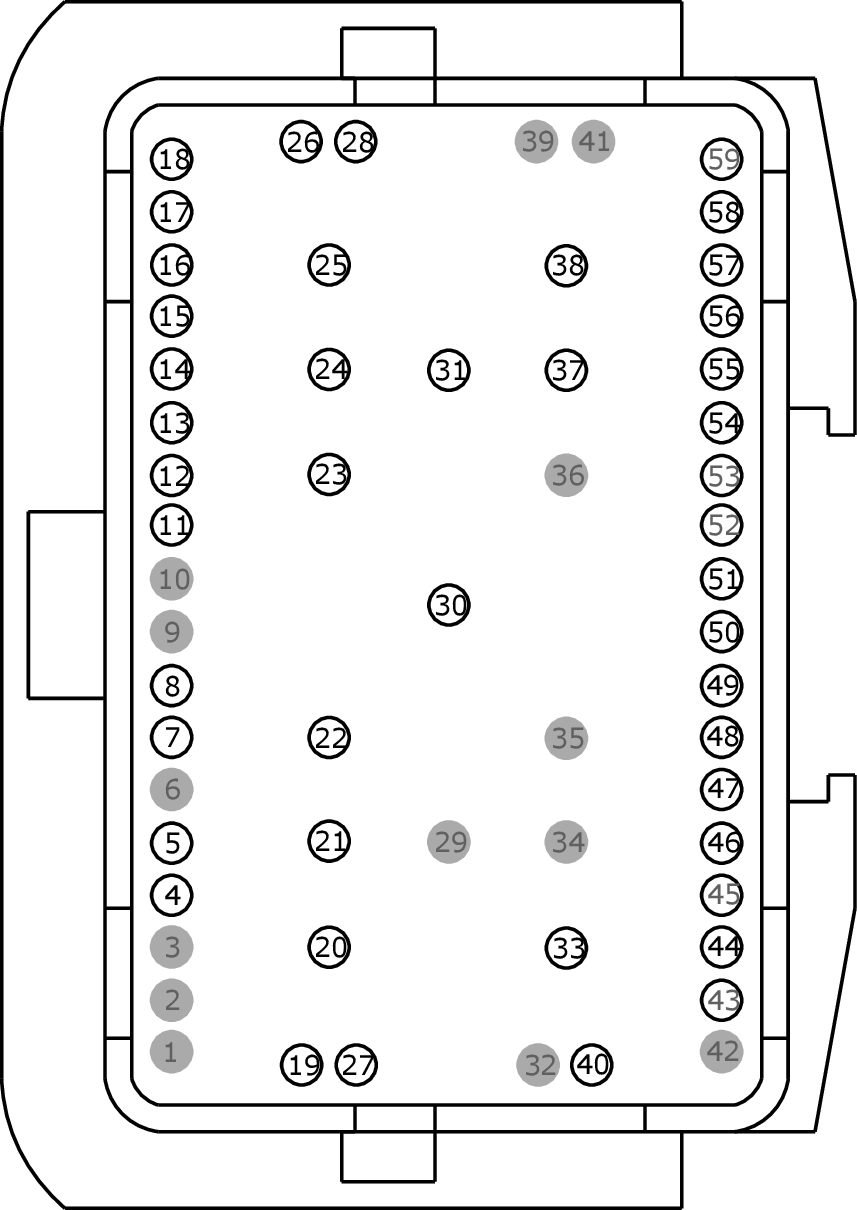

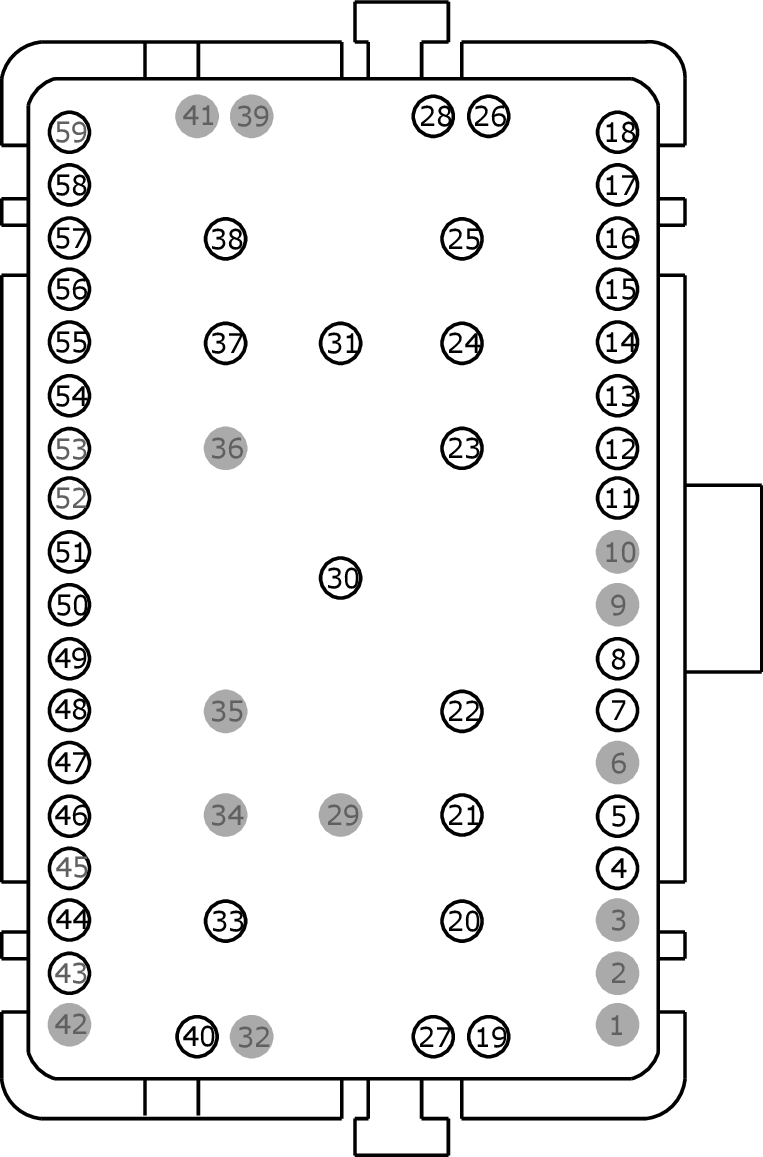

Connector End View (C219) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C219
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 12A581
FEMALE
Harness 14401
| Pin | Circuit | Gauge | Qualifier |
| 1 | * | * | |
| 2 | * | * | |
| 3 | * | * | |
| 4 | VLF32 (YE) | 20 | 12A581 |
| 4 | VLF32 (YE) | 22 | 14401 |
| 5 | DLF32 (*) | 20 | |
| 6 | * | * | |
| 7 | CRW15 (BN-WH) | 20 | 14401 |
| 7 | CRW15 (BN-WH) | 22 | 12A581 |
| 8 | CET59 (VT-GY) | 22 | |
| 9 | * | * | 12A581 |
| 9 | CET42 (GN-VT) | 22 | 14401 |
| 10 | * | * | 12A581 |
| 10 | CET43 (GY) | 22 | 14401 |
| 11 | VR213 (VT-GN) | 20 | |
| 12 | RR129 (YE-GY) | 20 | |
| 13 | VR214 (WH-BU) | 20 | |
| 14 | RR130 (GN-BU) | 20 | |
| 15 | VLF33 (BU) | 20 | |
| 16 | DLF33 (*) | 20 | |
| 17 | VET76 (GN-OG) | 18 | |
| 18 | VET78 (WH-VT) | 18 | |
| 19 | VET77 (GY-YE) | 18 | |
| 20 | SBB16 (VT-RD) | 16 | |
| 21 | SBB05 (GY-RD) | 16 | |
| 22 | SBB10 (YE-RD) | 16 | |
| 23 | SBB65 (RD) | 14 | |
| 24 | SBB17 (RD) | 16 | |
| 25 | CDC35 (BU-WH) | 20 | 12A581 |
| 25 | CPK34 (BN-VT) | 20 | 14401 |
| 25 | CPK34 (BN-VT) | 22 | 14401 |
| 26 | CMC20 (VT) | 20 | 12A581 |
| 26 | CMC20 (VT) | 22 | 14401 |
| 27 | SBB45 (GY-RD) | 18 | |
| 28 | CRD02 (BN-BU) | 20 | 12A581 |
| 28 | CRD02 (BN-BU) | 22 | 14401 |
| 29 | * | * | |
| 30 | CH402 (YE-GN) | 10 | |
| 31 | SBB81 (RD) | 10 | |
| 32 | * | * | |
| 33 | CBB23 (BN-YE) | 18 | 12A581 |
| 33 | CBB23 (BN-YE) | 20 | 14401 |
| 34 | * | * | 12A581 |
| 34 | CRD02 (BN-BU) | 20 | 14401 |
| 35 | * | * | |
| 36 | * | * | 12A581 |
| 36 | GD216 (BK-VT) | 20 | 14401 |
| 37 | CCB08 (VT-WH) | 20 | 12A581 |
| 37 | CCB08 (VT-WH) | 22 | 14401 |
| 38 | VH451 (GN-WH) | 18 | 12A581 |
| 38 | VH451 (WH-GN) | 22 | 14401 |
| 39 | * | * | |
| 40 | CH123 (VT-GN) | 20 | 12A581 |
| 40 | CH123 (VT-GN) | 22 | 14401 |
| 41 | * | * | |
| 42 | * | * | |
| 43 | * | * | |
| 44 | VDN05 (YE-GY) | 22 | |
| 45 | * | * | 12A581 |
| 45 | RE407 (YE-VT) | 22 | 14401 |
| 46 | CCB20 (BU-WH) | 20 | |
| 47 | CCB21 (GN-VT) | 20 | |
| 48 | CCB22 (WH-BN) | 20 | |
| 49 | CCB23 (VT-GN) | 20 | |
| 50 | CCB24 (WH-OG) | 20 | |
| 51 | CCB25 (BN) | 20 | |
| 52 | * | * | |
| 53 | * | * | |
| 54 | VDB25 (GN) | 26 | 14401 |
| 54 | VDB25 (GN) | 26 | 14401 |
| 54 | VDB25 (GN-OG) | 20 | 12A581 |
| 54 | VDB25 (GN-OG) | 22 | 14401 |
| 55 | VDB26 (GY) | 26 | 14401 |
| 55 | VDB26 (GY) | 26 | 14401 |
| 55 | VDB26 (GY-BU) | 20 | 12A581 |
| 55 | VDB26 (GY-BU) | 22 | 14401 |
| 56 | CBB54 (VT-OG) | 20 | 12A581 |
| 56 | CBB55 (BN-BU) | 20 | 14401 |
| 56 | CBP21 (BU-GY) | 22 | 12A581 |
| 57 | CYT30 (GY-VT) | 20 | 12A581 |
| 57 | CYT30 (GY-VT) | 22 | 14401 |
| 58 | CBP21 (BU-GY) | 22 | |
| 59 | * | * |
