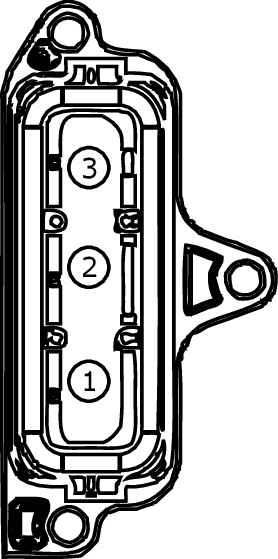

Connector End View (C168B) - HF35 TRANSMISSION
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C168B
Description
HF35 TRANSMISSION
Color
Harness
14183
Base Part #
part# N/A
Service Pigtail
Not Available
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
| 1 |
HYA07 (WH-LB) |
4 |
GENERATOR W PHASE (GWP) |
| 2 |
HYA08 (WH-OG) |
4 |
GENERATOR V PHASE (GVP) |
| 3 |
HYA09 (WH-BU) |
4 |
GENERATOR U PHASE (GUP) |
