Connector End View (C146) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C146
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

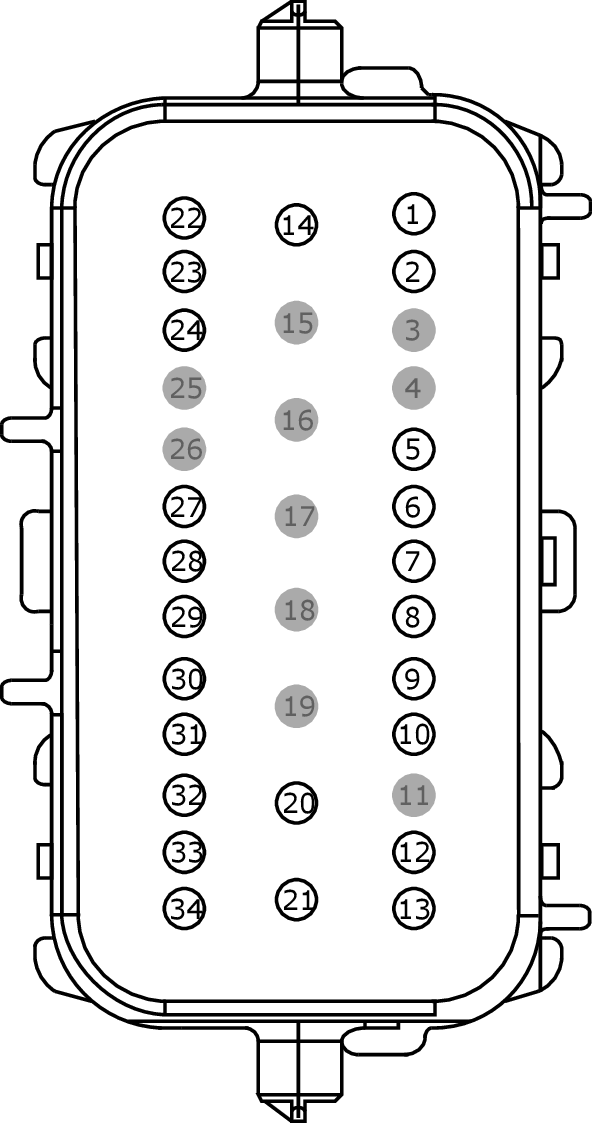

MALE
Harness 3C221

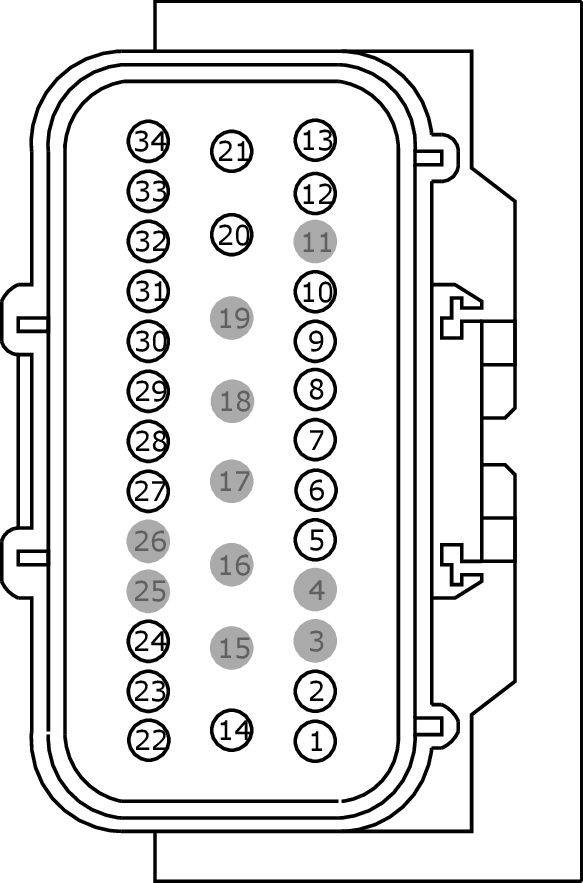

FEMALE
Harness 12A581
| Pin | Circuit | Gauge | Qualifier |
| 1 | CBB19 (BN-WH) | 18 | 3C221 |
| 1 | CBB19 (BN-WH) | 20 | 12A581 |
| 2 | CBB54 (VT-OG) | 18 | 3C221 |
| 2 | CBB54 (VT-OG) | 20 | 12A581 |
| 3 | * | * | |
| 4 | * | * | |
| 5 | LET57 (WH-GN) | 18 | 3C221 |
| 5 | LET57 (WH-GN) | 20 | 12A581 |
| 6 | VET57 (VT) | 18 | 3C221 |
| 6 | VET57 (VT) | 20 | 12A581 |
| 7 | VET56 (WH) | 18 | 3C221 |
| 7 | VET56 (WH) | 20 | 12A581 |
| 8 | VYT11 (VT-GY) | 20 | |
| 9 | VDN06 (WH-GN) | 18 | 3C221 |
| 9 | VDN06 (WH-GN) | 20 | 12A581 |
| 10 | VYT12 (YE-GN) | 20 | |
| 11 | * | * | |
| 12 | RET57 (YE) | 18 | 3C221 |
| 12 | RET57 (YE) | 20 | 12A581 |
| 13 | GD113 (BK-YE) | 18 | 3C221 |
| 13 | GD113 (BK-YE) | 20 | 12A581 |
| 14 | CCB29 (WH-GN) | 10 | |
| 15 | * | * | |
| 16 | * | * | |
| 17 | * | * | |
| 18 | * | * | |
| 19 | * | * | |
| 20 | GD120 (BK-GN) | 14 | |
| 21 | GD120 (BK-GN) | 10 | |
| 22 | CBK03 (GY) | 18 | |
| 23 | SBB17 (RD) | 14 | |
| 24 | CBB24 (VT-GN) | 20 | |
| 25 | * | * | |
| 26 | * | * | |
| 27 | VDB04 (WH-BU) | 20 | |
| 28 | VDB05 (WH) | 20 | |
| 29 | VDB04 (WH-BU) | 20 | |
| 30 | VDB05 (WH) | 20 | |
| 31 | VDB25 (GN-OG) | 20 | |
| 32 | VDB26 (GY-BU) | 20 | |
| 33 | VDB25 (GN-OG) | 20 | |
| 34 | VDB26 (GY-BU) | 20 |
