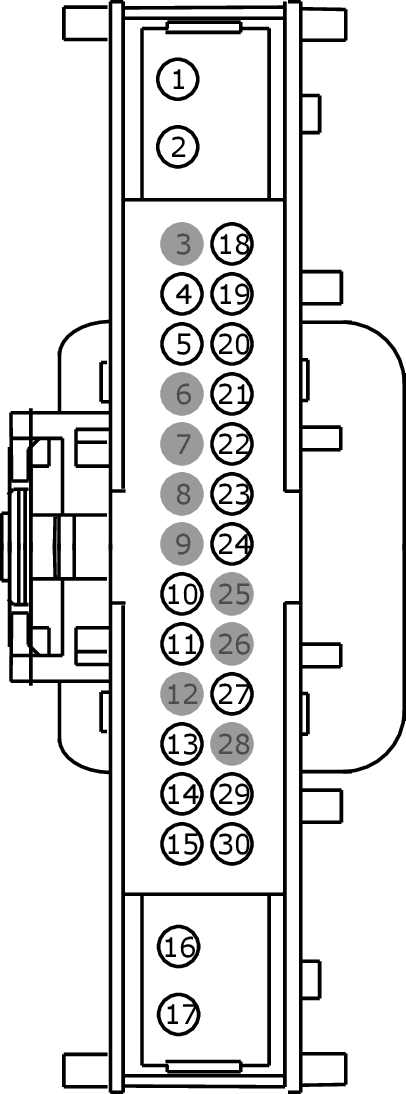

Connector End View (C2402B) - FRONT CONTROLS INTERFACE MODULE (FCIM)

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C2402B

Description

FRONT CONTROLS INTERFACE MODULE (FCIM)

Color

Harness

14401

Base Part #

part# N/A

Service Pigtail

Not Available

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER
2	SBB65 (RD)	14	FUSE - 65 OR CIRCUIT BREAKER
3	*	*	Not Used
4	VH410 (GY)	26	SENSOR - DISCHARGE TEMP. # LEFT 2ND
5	VH409 (WH)	26	SENSOR - DISCHARGE TEMP. # LEFT
6	*	*	Not Used
7	*	*	Not Used
8	*	*	Not Used
9	*	*	Not Used
10	VH412 (YE)	26	SENSOR - DISCHARGE TEMP. # RIGHT 2ND
11	VH411 (VT)	26	SENSOR - DISCHARGE TEMP. # RIGHT
12	*	*	Not Used
13	CH212 (BU-OG)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 1 / CLOSE
14	CH213 (BN)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COIL 2 / OPEN
15	RHS10 (BU-OG)	22	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.
15	RHS10 (BU-OG)	20	CTRL MOD. - HOT/COLD SEAT # PASSENGER SENSOR CUSHION TEMP.
16	CHS02 (YE-BU)	18	CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER +
17	CHS07 (GY-BU)	18	CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER +
18	CH211 (YE)	26	CTRL MOD. - CLIMATE # DOOR MOTOR TEMP. RIGHT COMMON
19	VH413 (WH)	26	SENSOR - HUMIDITY
20	CLS32 (BN-YE)	26	SWITCH - HAZARD
21	VH416 (VT)	26	SENSOR - SUN LOAD # LEFT
22	VH417 (YE)	26	SENSOR - SUN LOAD # RIGHT
23	CH253 (WH)	26	CTRL MOD. - CLIMATE # START/STOP SWITCH DISABLE
24	CE469 (BN)	26	CTRL MOD. - POWERTRAIN # START/STOP ENABLE/DISABLE SWITCH INDICATOR
25	*	*	Not Used
26	*	*	Not Used
27	VHA31 (GN-BN)	22	SENSOR - REAR TEMP
28	*	*	Not Used
29	VH414 (GN)	26	SENSOR - INCAR TEMP.
30	RHS05 (YE-VT)	22	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
30	RHS05 (YE-VT)	20	CTRL MOD. - HOT/COLD SEAT # DRIVER SENSOR CUSHION TEMP.
