Connector End View (C2360) - COLLAPSABLE STEERING COLUMN MODULE
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C2360
Description
COLLAPSABLE STEERING COLUMN MODULE
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CR168 (WH-GN) | 20 | CTRL MOD. - PYROTECHNIC STEERING COLUMN + | |
| 2 | RR168 (BU-WH) | 20 | CTRL MOD. - PYROTECHNIC STEERING COLUMN - |

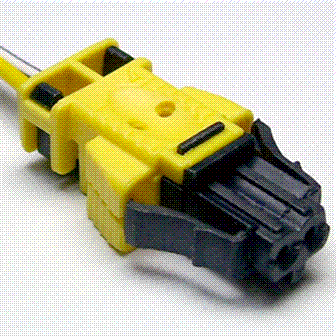

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1229 |
Service Part Number: BU2Z-14S411-BNA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Deployable Steering Column |
