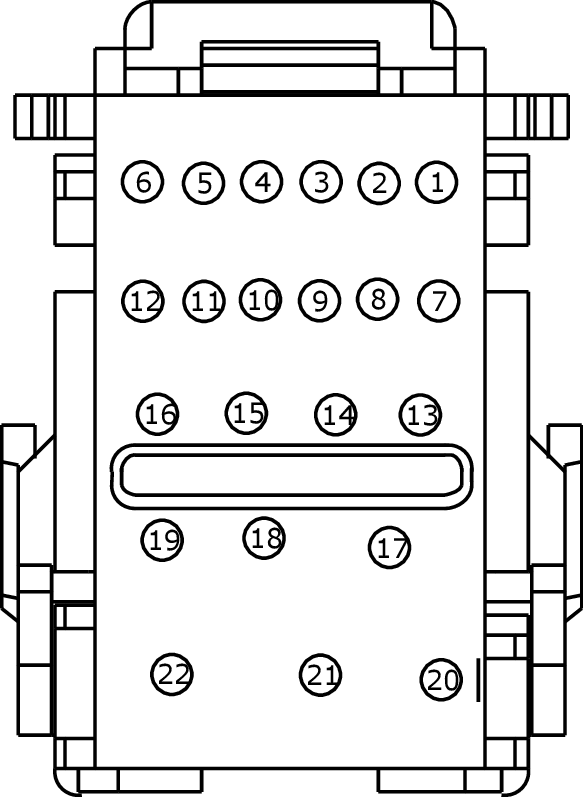

Connector End View (C2280H) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C2280H
Description
BODY CONTROL MODULE (BCM)
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CCB08 (VT-WH) | 22 | SWITCH - BRAKE ON/OFF (BPP) NORMAL OPEN | |
| 2 | CBP23 (BU-OG) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
| 2 | CBP23 (BN-YE) | 22 | FUSE - 23 OR CIRCUIT BREAKER | |
| 3 | * | * | Not Used | |
| 4 | CBP35 (YE-GY) | 22 | FUSE - 35 OR CIRCUIT BREAKER | |
| 5 | CBP20 (YE-VT) | 22 | FUSE - 20 OR CIRCUIT BREAKER | |
| 6 | CBP21 (BU-GY) | 22 | FUSE - 21 OR CIRCUIT BREAKER | |
| 7 | CBP19 (BN-WH) | 22 | FUSE - 19 OR CIRCUIT BREAKER | |
| 8 | SBP13 (GY-RD) | 22 | FUSE - 13 OR CIRCUIT BREAKER | |
| 9 | SBP32 (BN-RD) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 9 | SBP32 (VT-RD) | 20 | FUSE - 32 OR CIRCUIT BREAKER | |
| 10 | SBP12 (GN-RD) | 22 | FUSE - 12 OR CIRCUIT BREAKER | |
| 11 | SBP17 (RD) | 22 | FUSE - 17 OR CIRCUIT BREAKER | |
| 12 | SBP18 (YE-RD) | 22 | FUSE - 18 OR CIRCUIT BREAKER | |
| 12 | SBP18 (YE-RD) | 20 | FUSE - 18 OR CIRCUIT BREAKER | |
| 13 | * | * | Not Used | |
| 14 | CDC35 (BU-WH) | 20 | SWITCH - IGNITION # START | |
| 15 | * | * | Not Used | |
| 16 | CBP37 (WH) | 20 | FUSE - 37 OR CIRCUIT BREAKER | |
| 16 | CBP37 (WH) | 14 | FUSE - 37 OR CIRCUIT BREAKER | |
| 17 | * | * | Not Used | |
| 18 | * | * | Not Used | |
| 19 | SBP15 (WH-RD) | 22 | FUSE - 15 OR CIRCUIT BREAKER | |
| 19 | SBP15 (WH-RD) | 20 | FUSE - 15 OR CIRCUIT BREAKER | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | CBP33 (WH-BN) | 16 | FUSE - 33 OR CIRCUIT BREAKER |
