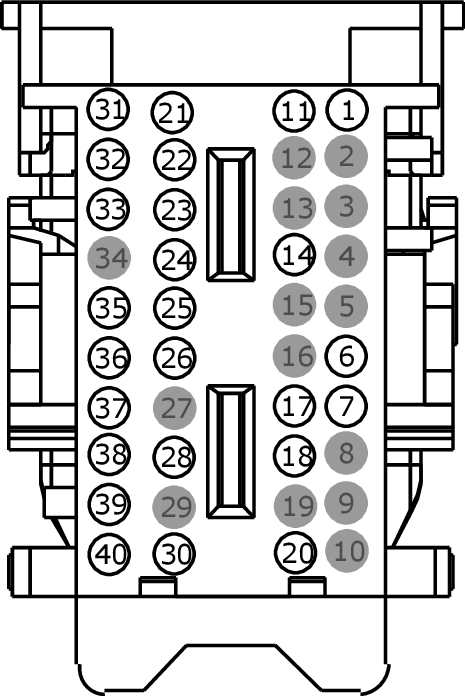

Connector End View (C2280C) - BODY CONTROL MODULE (BCM)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C2280C
Description
BODY CONTROL MODULE (BCM)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VMP21 (WH-BN) | 20 | SENSOR - PARKING AID # ACTIVE PARK ASSIST | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | CLS56 (YE-GN) | 22 | LAMP - TURN FRONT LEFT OR COMMON# SIGNAL OUT | |
| 7 | LMP06 (VT-GY) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT + | |
| 8 | * | * | Not Used | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | VMP20 (GY-OG) | 20 | SENSOR - PARKING AID # ACTIVE PARK ASSIST | |
| 12 | * | * | Not Used | |
| 13 | * | * | Not Used | |
| 14 | CPL25 (BU-OG) | 20 | SWITCH - HOOD # AJAR | |
| 15 | * | * | Not Used | |
| 16 | * | * | Not Used | |
| 17 | CLS58 (BU-WH) | 22 | LAMP - TURN FRONT RIGHT # SIGNAL OUT | |
| 18 | CE436 (VT-OG) | 22 | CTRL MOD. -WAKE UP PCM | |
| 19 | * | * | Not Used | |
| 20 | CRH02 (BU-WH) | 20 | SWITCH - HORN | |
| 21 | VMP13 (BU-OG) | 20 | SENSOR - PARKING AID # FRONT # | |
| 22 | VMP12 (BU-GY) | 20 | SENSOR - PARKING AID # FRONT # | |
| 23 | CDC71 (YE-GY) | 20 | CTRL MOD. - POWER OUTLET ENABLE OR SET | |
| 24 | CDC40 (VT-GY) | 20 | RELAY - DELAY ACCESSORY | |
| 25 | CDC55 (BN-VT) | 20 | RELAY - RUN, START | |
| 26 | CE226 (YE-VT) | 20 | CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF (FP) | |
| 27 | * | * | Not Used | |
| 28 | CMC19 (GY-VT) | 20 | SWITCH - LOW LEVEL BRAKE FLUID | |
| 29 | * | * | Not Used | |
| 30 | CLS06 (GN-OG) | 20 | CTRL MOD. - PARK FRONT LEFT OR FRONT/REAR LEFT | |
| 31 | VMP11 (BU-GN) | 20 | SENSOR - PARKING AID # FRONT # | |
| 32 | VMP10 (WH-BU) | 20 | SENSOR - PARKING AID # FRONT # | |
| 33 | CDC72 (BN-WH) | 20 | CTRL MOD. - POWER OUTLET DISABLE OR RESET | |
| 34 | * | * | Not Used | |
| 35 | RMP06 (YE-OG) | 20 | CTRL MOD. - PARKING AID # SENSORS FRONT - | |
| 36 | CLF62 (VT-WH) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT RIGHT | |
| 37 | CLS07 (BN-YE) | 20 | CTRL MOD. - PARK FRONT RIGHT OR FRONT/REAR RIGHT | |
| 38 | CLS25 (YE-VT) | 20 | CTRL MOD. - TURN LAMP RIGHT FRONT | |
| 38 | CLS25 (YE-VT) | 22 | CTRL MOD. - TURN LAMP RIGHT FRONT | |
| 39 | CLS21 (BU-GN) | 20 | CTRL MOD. - TURN LAMP LEFT FRONT | |
| 39 | CLS21 (BU-GN) | 22 | CTRL MOD. - TURN LAMP LEFT FRONT | |
| 40 | CLF61 (GY-BU) | 20 | CTRL MOD. - DAYTIME RUNNING LIGHT LEFT |
