Connector End View (C1656) - WINDSHIELD WIPER MOTOR, RIGHT FRONT
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C1656
Description
WINDSHIELD WIPER MOTOR, RIGHT FRONT
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CRW25 (BU-GY) | 14 | RELAY - FRONT WIPER PARK | |
| 2 | GD123 (BK-GY) | 14 | GROUND - FENDER FRONT RIGHT | |
| 3 | VRW28 (WH-OG) | 14 | MOTOR - FRONT WIPER MASTER # MOTOR FRONT WIPER SLAVE | |
| 4 | * | * | Not Used |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1135 |

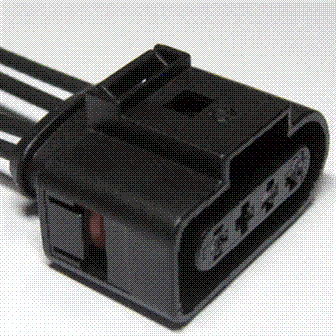

Service Part Number: BU2Z-14S411-JA Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Motor - Windshield Wiper |
