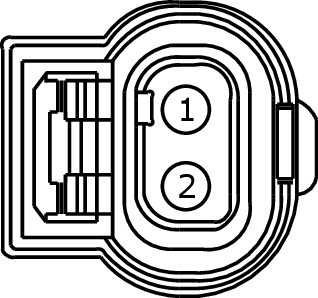

Connector End View (C1648) - VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11)

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector:C1648

Description

VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11)

Color

Harness

12C508

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CBK02 (GN)	18	FUSE - 2 OR CIRCUIT BREAKER (VPWR)
2	CE422 (WH-OG)	18	CTRL MOD. - POWERTRAIN # VARIABLE CAMSHAFT TIMING BANK 1 SOLENOID 1 (VCT11)

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1251

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-DA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Solenoid - Engine Variable Timing
