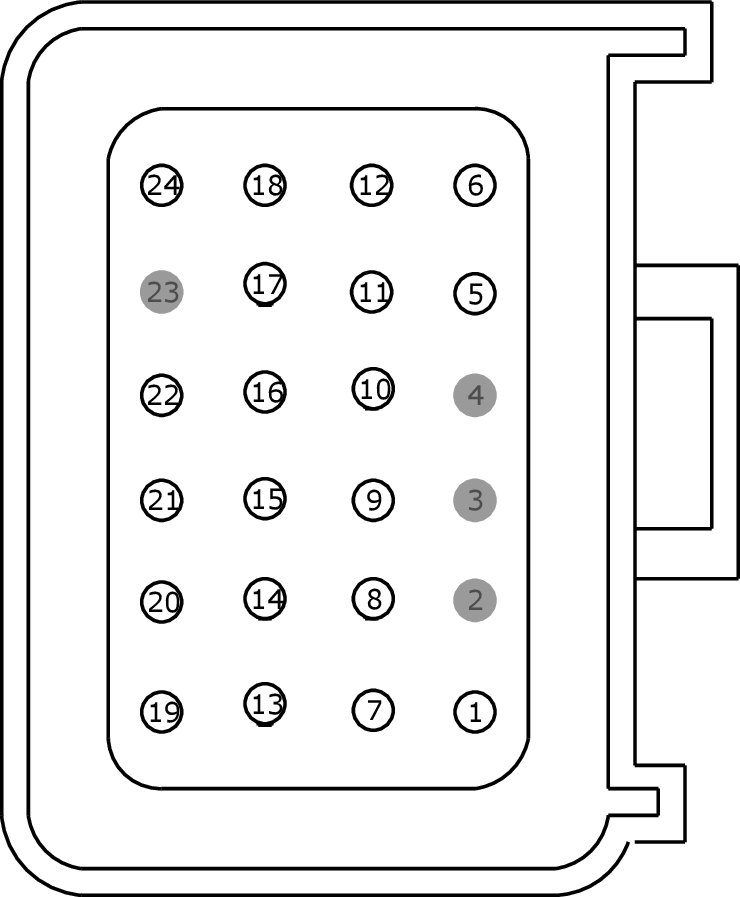

Connector End View (C1458B) - SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C1458B
Description
SECONDARY ON BOARD DIAGNOSTIC MODULE C (SOBDMC) / TRANSMISSION CONTROL MODULE (TCM)
Color
Harness
3C221
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | DYT25 (BK) | 20 | TRANSAXLE - HYBRID # GENERATOR RESOLVER FEEDBACK (G_SHIELD) | |
| 2 | * | * | Not Used | |
| 3 | * | * | Not Used | |
| 4 | * | * | Not Used | |
| 5 | VYT20 (YE-VT) | 18 | MOTOR SINE 2 (MS2) | |
| 6 | VYT15 (YE-GY) | 18 | MOTOR RESOLVER 1 (MR1) | |
| 7 | VYT24 (BN-WH) | 18 | GENERATOR RESOLVER 2 (GR2) | |
| 8 | VYT23 (WH) | 18 | GENERATOR RESOLVER 1 (GR1) | |
| 9 | RYT22 (GY-OG) | 18 | SENSOR - HYBRID TRANSMISSION OIL TEMPERATURE (TOIL) - | |
| 10 | VYT22 (GN-OG) | 18 | TRANSMISSION FLUID TEMPERATURE (TFT) | |
| 11 | VYT19 (GN-BN) | 18 | MOTOR SINE 1 (MS1) | |
| 12 | VYT16 (WH-GN) | 18 | MOTOR RESOLVER 2 (MR2) | |
| 13 | VYT25 (VT-BN) | 18 | GENERATOR COSINE 2 (GC2) | |
| 14 | VYT26 (YE-BU) | 18 | GENERATOR COSINE 1 (GC1) | |
| 15 | RYT29 (WH-BU) | 18 | GENERATOR COIL TEMPERATURE RETURN (GCTRTN) | |
| 16 | VYT29 (VT-GN) | 18 | GENERATOR COIL TEMPERATURE (GCT) | |
| 17 | DYT17 (BK) | 20 | TRANSAXLE - HYBRID # MOTOR RESOLVER FEEDBACK (M_SHIELD) | |
| 18 | VYT18 (BU-WH) | 18 | MOTOR COSINE 2 (MC2) | |
| 19 | VYT27 (WH-BN) | 18 | GENERATOR SINE 2 (GS2) | |
| 20 | VYT28 (BN-YE) | 18 | GENERATOR SINE 1 (GS1) | |
| 21 | RYT21 (GN-WH) | 18 | MOTOR COIL TEMPERATURE RETURN (MCTRTN) | |
| 22 | VYT21 (BU-GN) | 18 | MOTOR COIL TEMPERATURE (MCT) | |
| 23 | * | * | Not Used | |
| 24 | VYT17 (BN-BU) | 18 | MOTOR COSINE 1 (MC1) |
